Installation Procedure

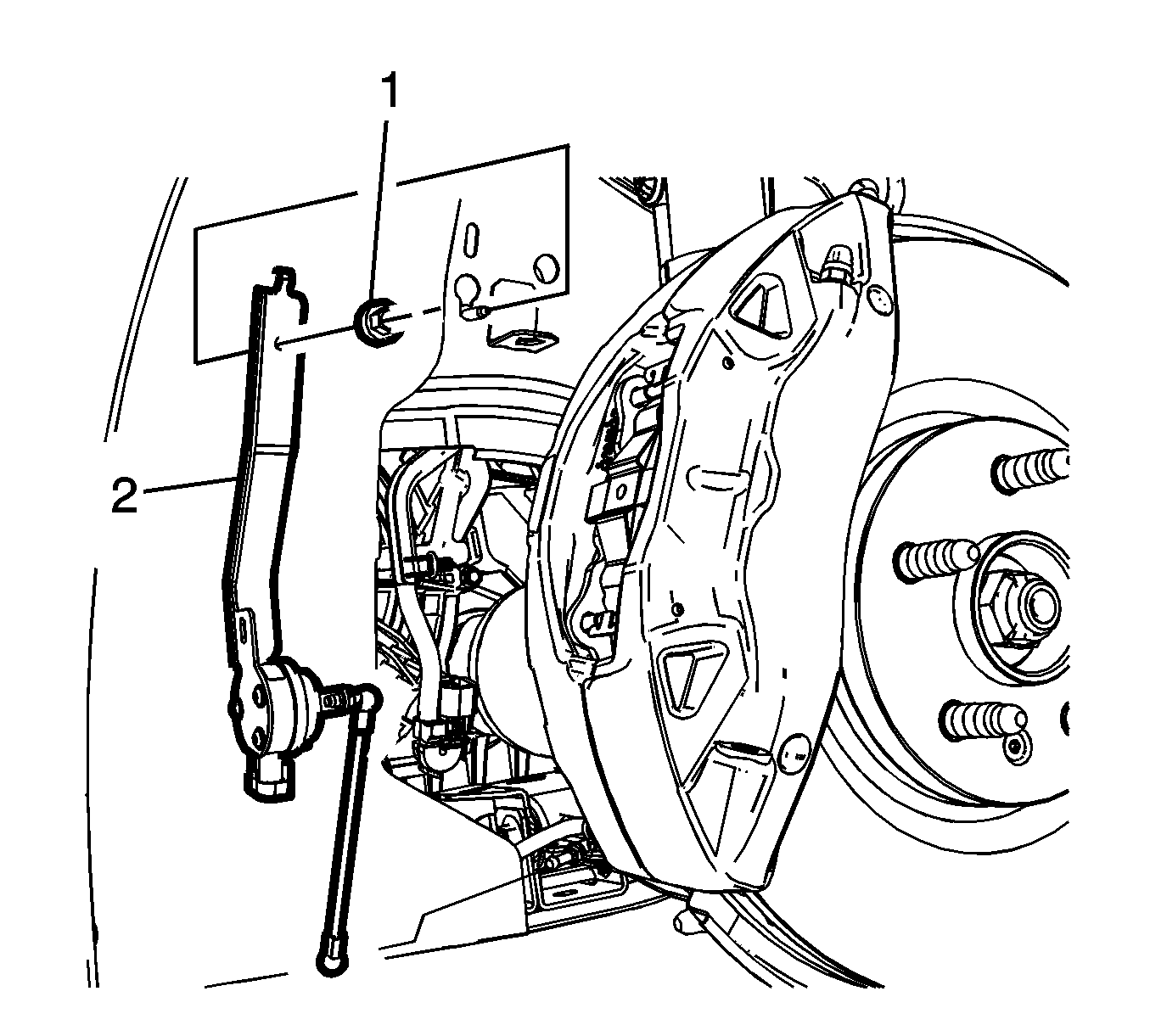

    Fig 1: Electrical Suspension Front Position Sensor & Mounting Nut
    GM2841751Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure that the front position sensor is properly seated in the mounting bracket.

  1. Position the electronic suspension front position sensor (2) in the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the electronic suspension front position sensor nut (1) and tighten to 12 N.m (106 lb in).

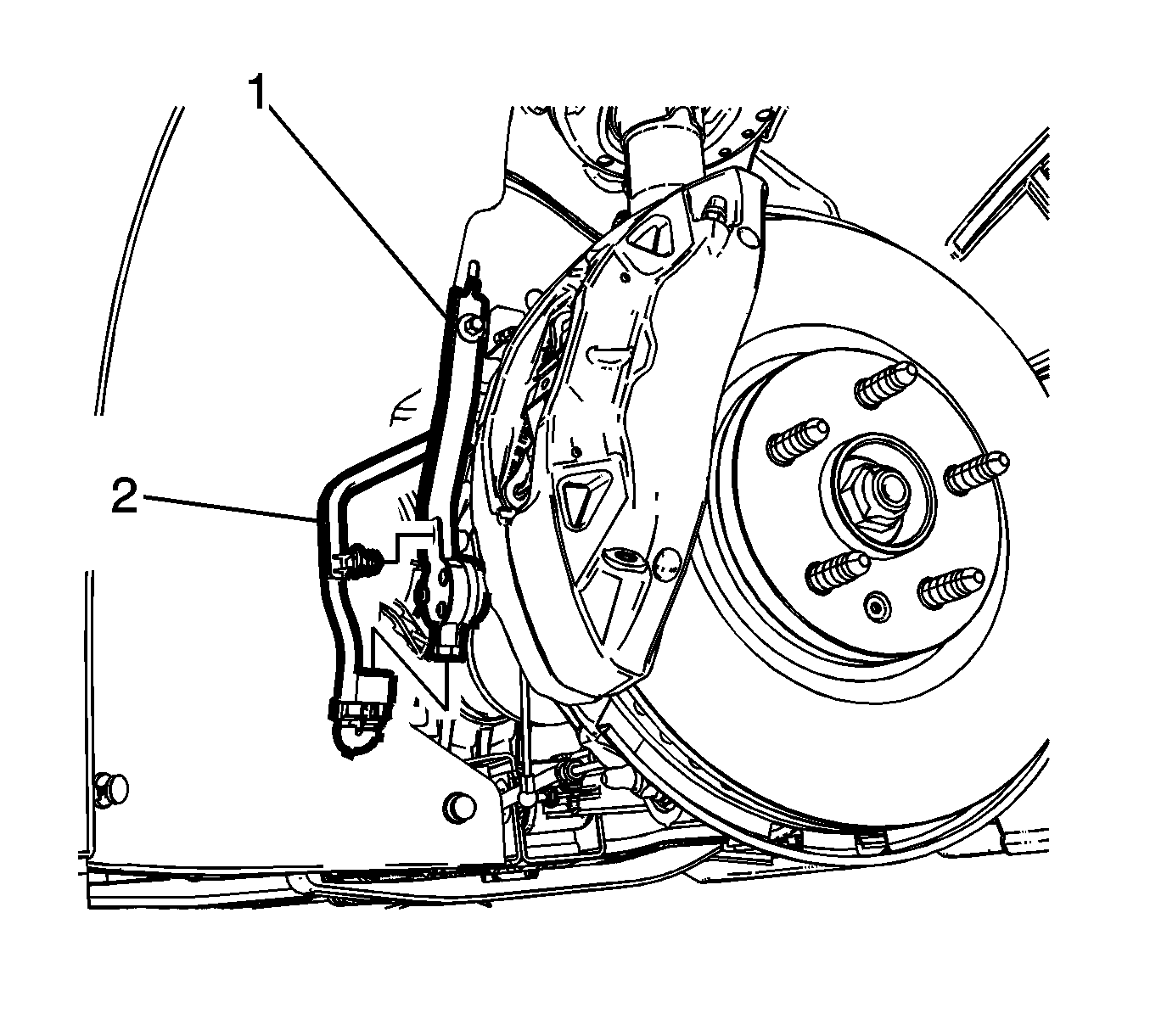

    3. Fig 2: Electrical Suspension Front Position Sensor & Connector
    GM2841735Courtesy of GENERAL MOTORS COMPANY
  3. Reconnect the electrical connector (2) to the electronic suspension front position sensor (1).

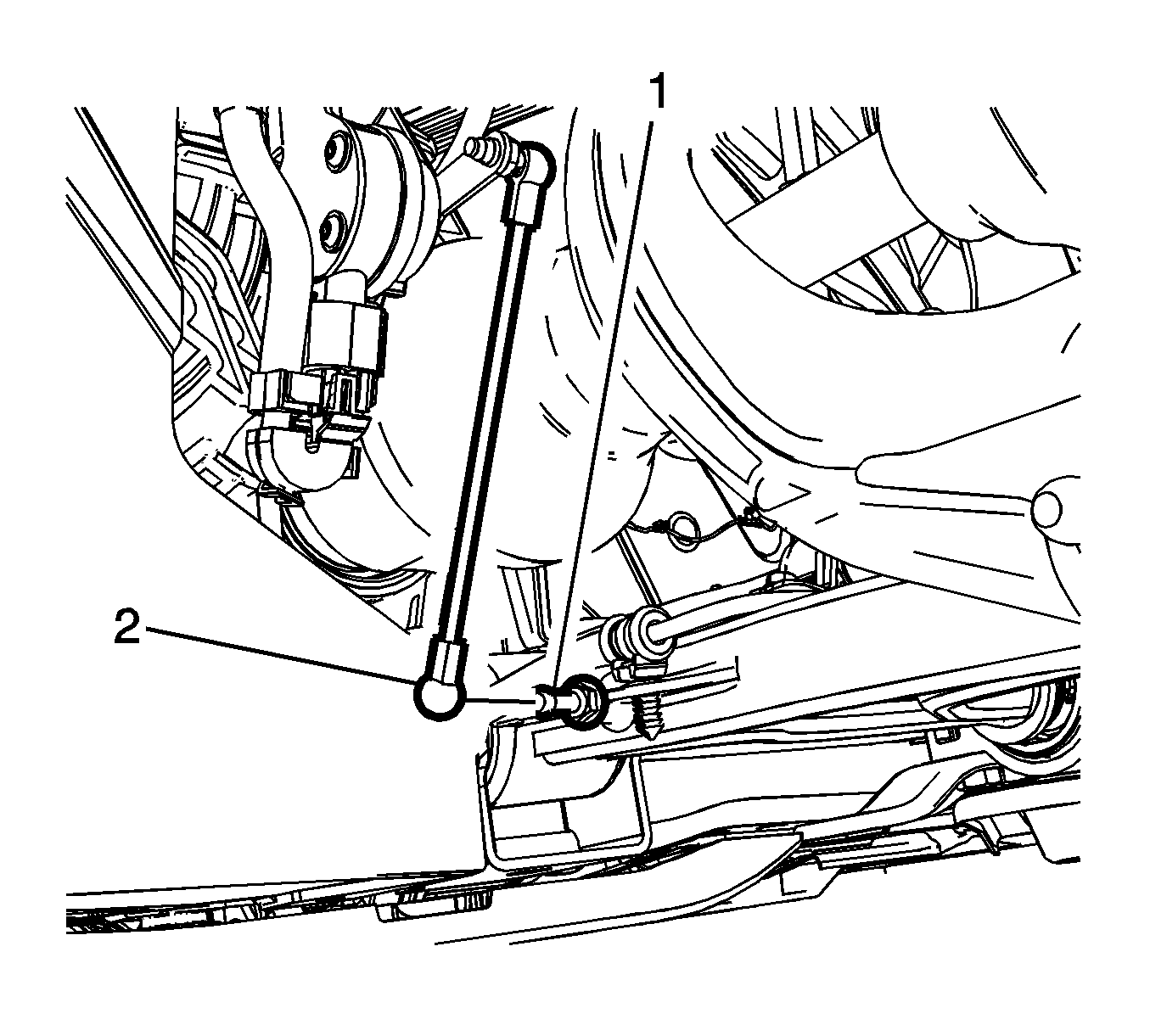

    4. Fig 3: Electrical Suspension Front Position Sensor Link & Lower Control Arm
    GM2841876Courtesy of GENERAL MOTORS COMPANY
  4. Connect the electronic suspension front position sensor link (2) to the lower control arm (1).
  5. Remove the supports and lower the vehicle.
  6. Straighten the front tires.
  7. Re-calibrate the trim height for the front position sensor. Electronic Suspension Front Position Sensor Trim Height Calibration
