Removal Procedure

  1. Remove the instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
  2. Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement .
    3. Fig 1: Instrument Panel Compartment Bolts
    GM2753465Courtesy of GENERAL MOTORS COMPANY
  3. Remove the bolts (1) securing the top of the instrument panel compartment to the instrument carrier.
    4. Fig 2: Instrument Panel Compartment Door Dampener
    GM2753466Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the dampener (1) from the instrument panel compartment door.

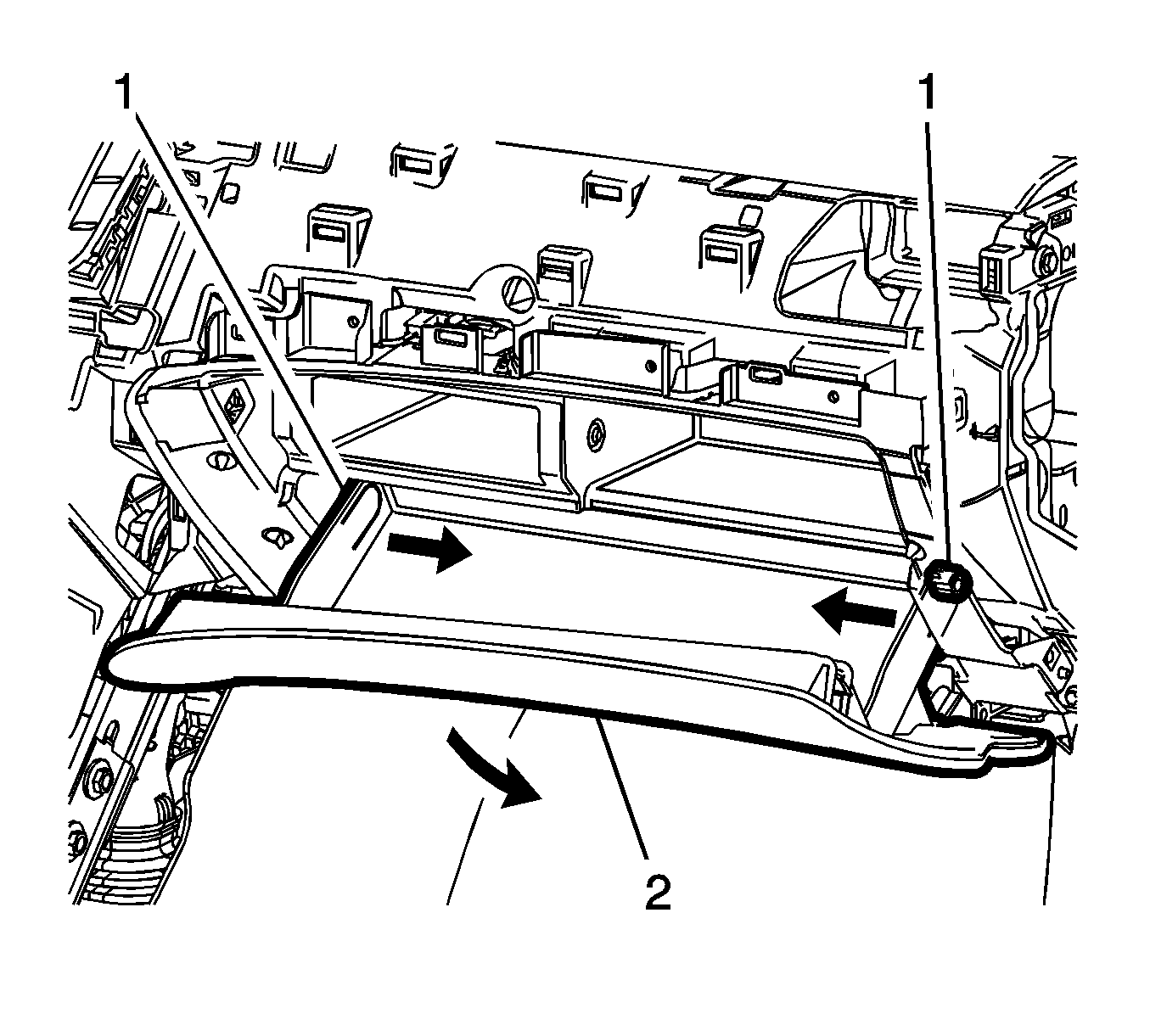

    5. Fig 3: Instrument Panel Compartment Door & Stops
    GM2753467Courtesy of GENERAL MOTORS COMPANY
  5. Release the instrument panel compartment door stops (1).
  6. Swing the door (2) down to access the fasteners on the bottom of the instrument panel compartment.
    7. Fig 4: Instrument Panel Compartment Bottom Bolts
    GM2753468Courtesy of GENERAL MOTORS COMPANY
  7. Remove the bolts (1) securing the bottom of the instrument panel compartment to the instrument carrier.
    8. Fig 5: Instrument Panel Compartment
    GM2753469Courtesy of GENERAL MOTORS COMPANY
  8. Remove the instrument panel compartment (1) secured by retainers to the instrument carrier.
  9. Disconnect the electrical connections.
