Instrument Panel Center Support Bracket Replacement

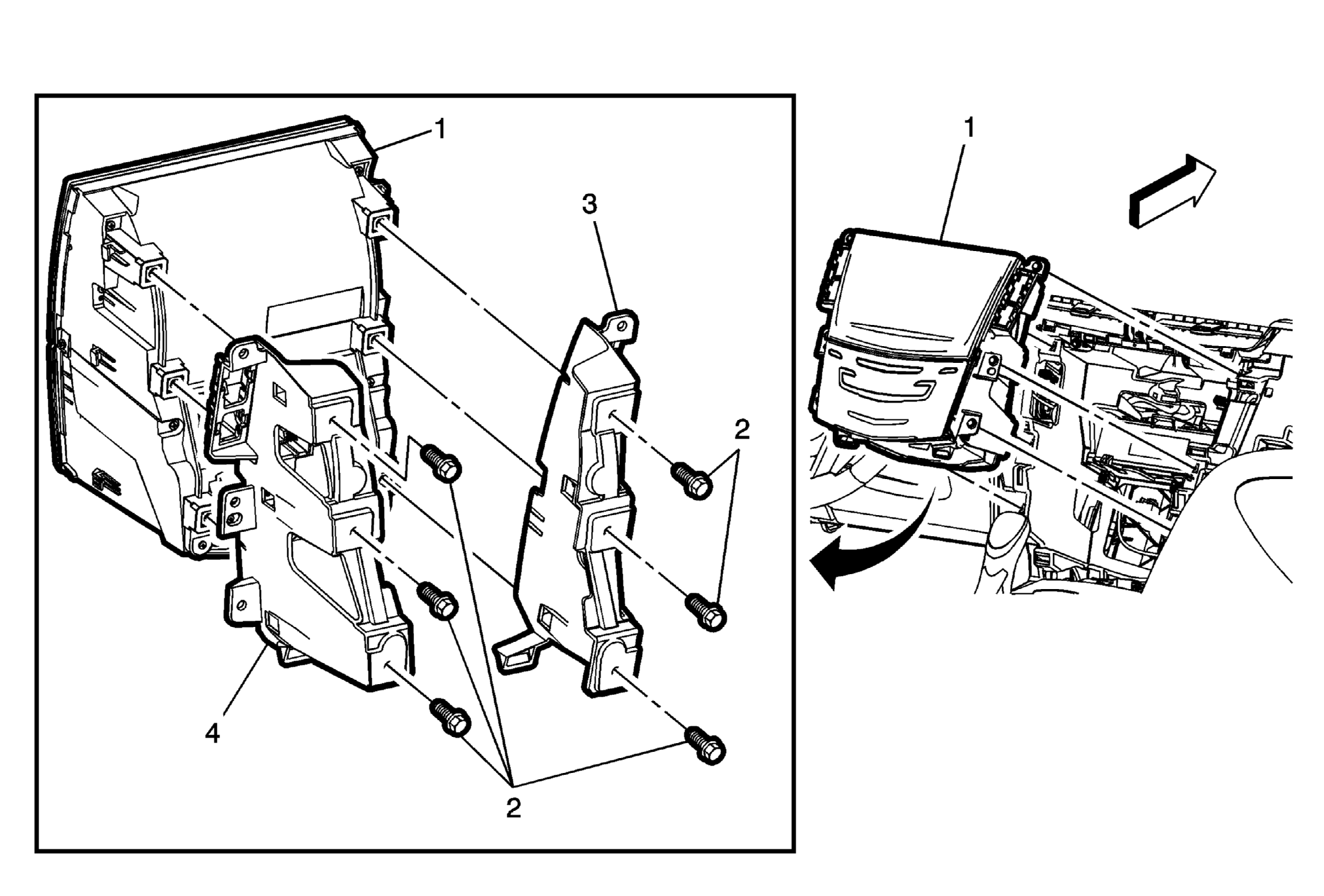

Fig 1: Instrument Panel Center Support Brackets, Fasteners & Radio Control Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Radio Control Assembly Refer to Radio Control Assembly Replacement .
2	Instrument Panel Center Support Bracket Fasteners (Qty: 6) CAUTION: Refer to Fastener Caution .
3	Instrument Panel Center Support Bracket - Left
4	Instrument Panel Center Support Bracket - Right
