Front Floor Console Bracket Replacement

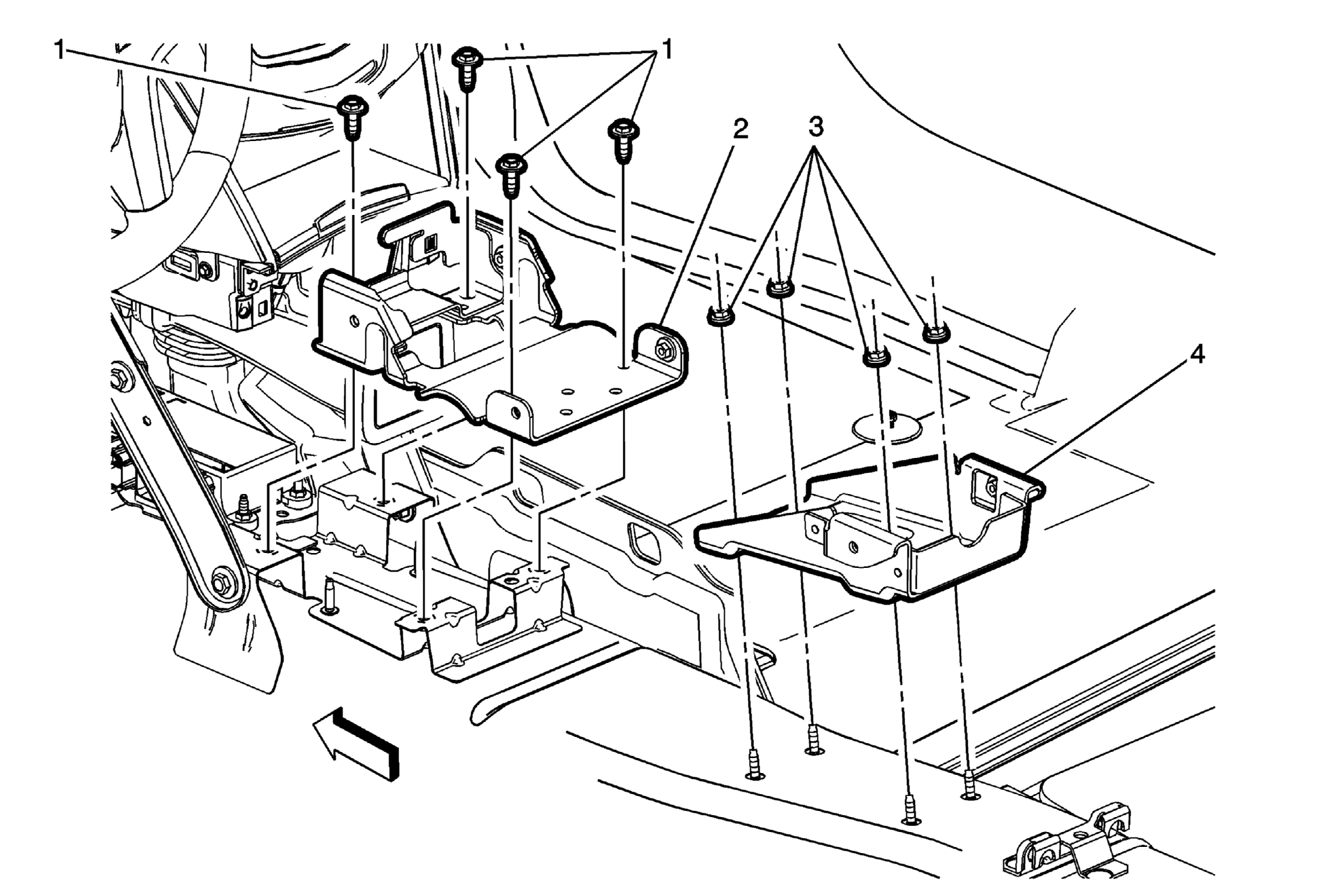

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console. Refer to Front Floor Console Replacement . |
|
| 1 | Front Floor Console Front Bracket Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Front Floor Console Front Bracket Procedure Pull back the carpet and insulator to access the bracket from the floor panel. |
| 3 | Front Floor Console Rear Bracket Nut (Qty: 4) Tighten 10 N.m (88 lb in) |
| 4 | Front Floor Console Rear Bracket Procedure Pull back the carpet and insulator to access the bracket from the floor panel. |
