Ignition Lock Key Transmitter Antenna Replacement - Rear Compartment

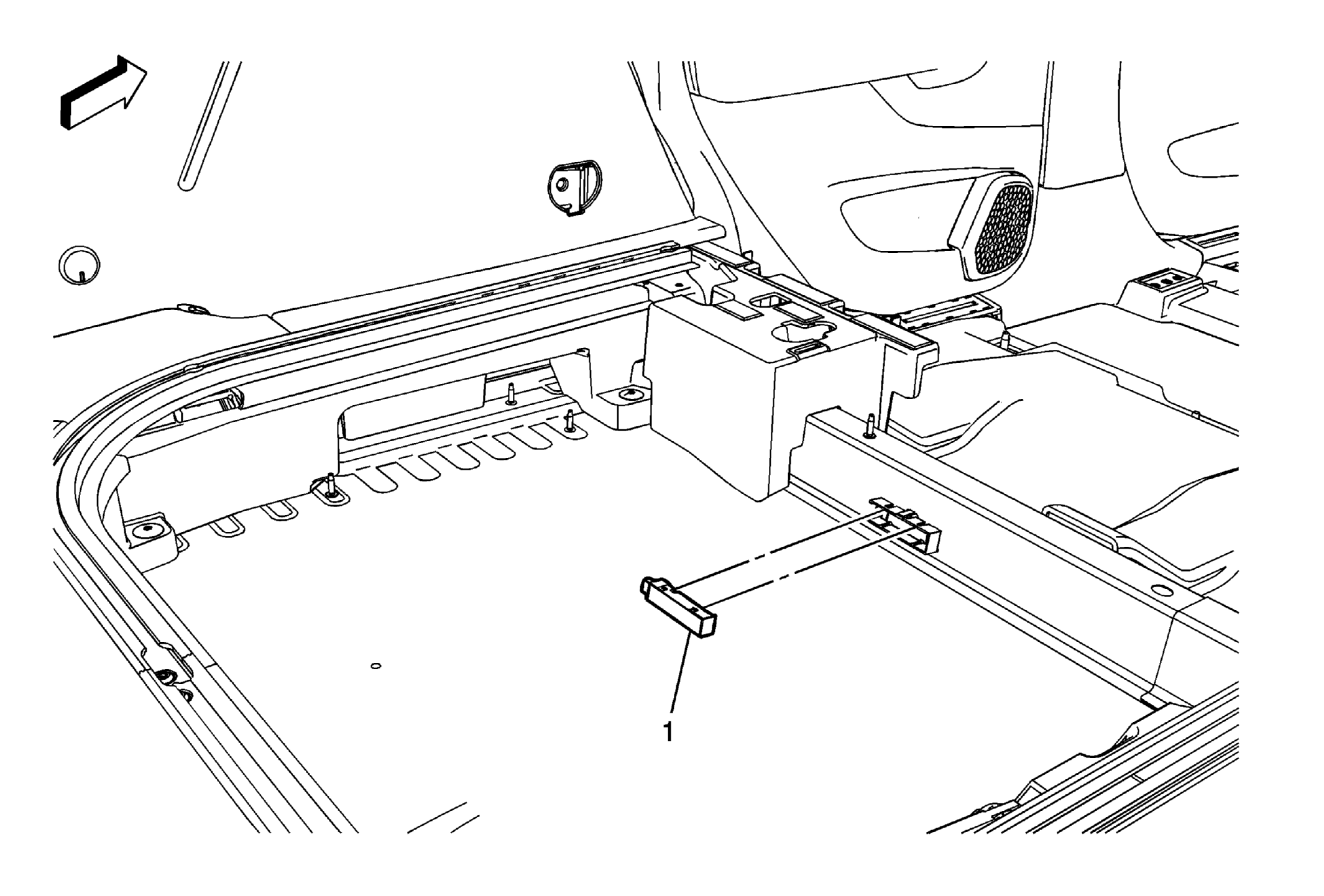

Fig 1: Ignition Lock Key Transmitter Antenna - Rear Compartment

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment floor stowage compartment tray. Refer to Rear Compartment Floor Stowage Compartment Tray Replacement .
1	Ignition Lock Key Transmitter Antenna Procedure Disconnect the electrical connectors. Unsnap the ignition lock key transmitter antenna from the bracket on the floor panel bar.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment floor stowage compartment tray. Refer to Rear Compartment Floor Stowage Compartment Tray Replacement .

Ignition Lock Key Transmitter Antenna

Procedure

Disconnect the electrical connectors.
Unsnap the ignition lock key transmitter antenna from the bracket on the floor panel bar.
