Data Link Connector Power, Ground, and Low Speed GMLAN

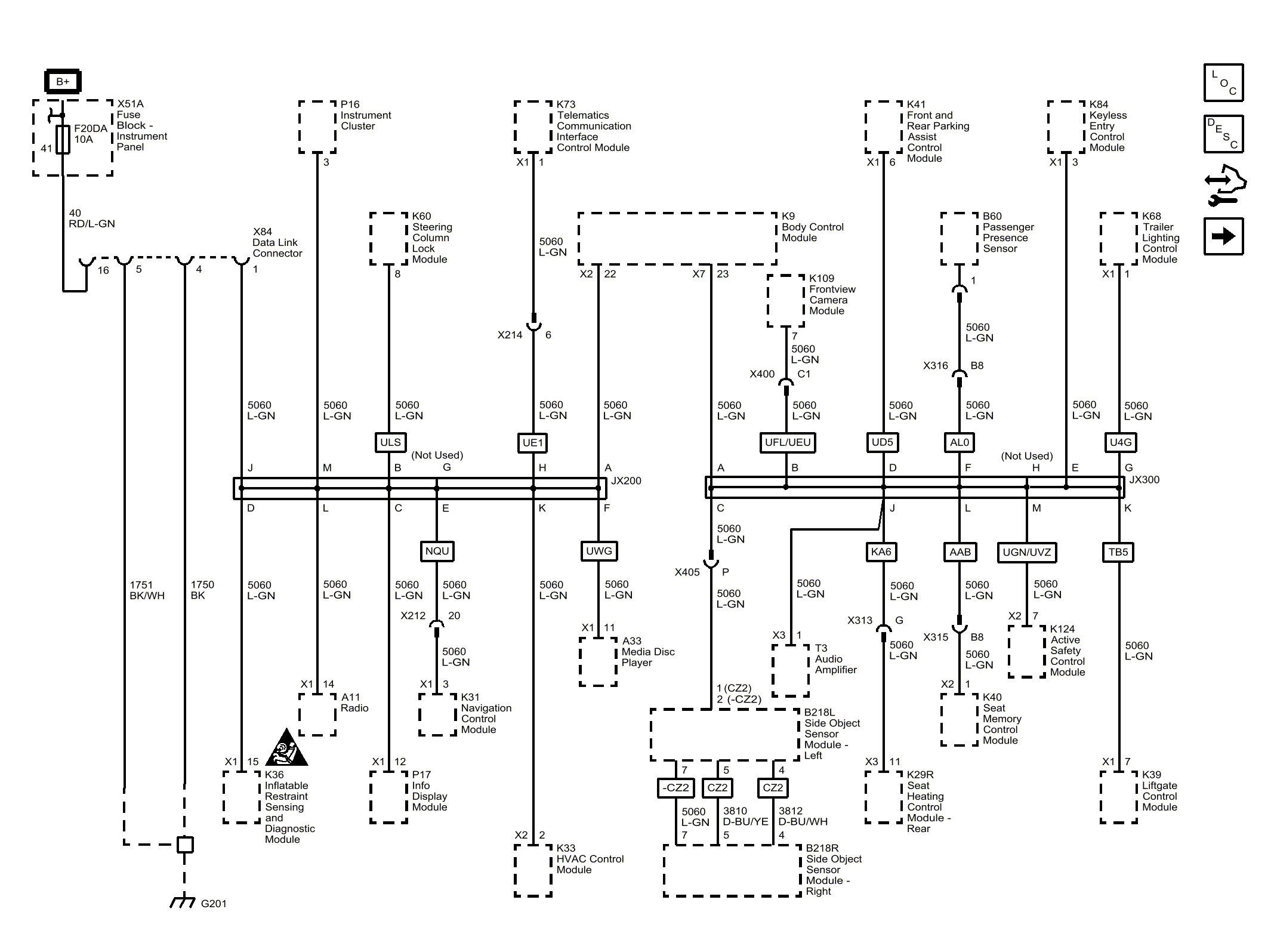

Fig 1: Data Link Connector Power, Ground, and Low Speed GMLAN

GM4083219

Courtesy of GENERAL MOTORS COMPANY
