Installation Procedure

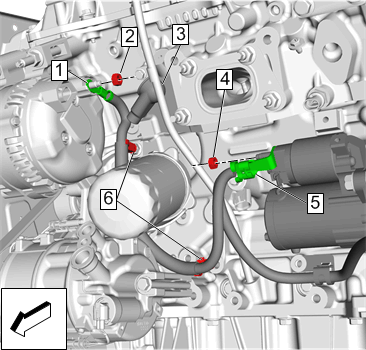

    Fig 1: Battery Positive Cable
    GM4533370Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery Positive Cable (5)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Battery Positive Cable Nut (4) and tighten to 11 N.m (97 lb in)
  3. Install Battery Positive Cable (1)
  4. Install Battery Positive Cable Nut (2) and tighten to 15 N.m (11 lb ft)
  5. Install Terminal Protective Boot (3)
  6. Engage Retainer (6) (Qty: 2)

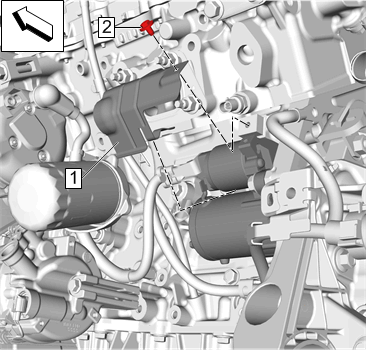

    7. Fig 2: Starter Heat Shield Fastener
    GM4533368Courtesy of GENERAL MOTORS COMPANY
  7. Install Starter Heat Shield (1)
  8. Install Starter Heat Shield Fastener (2) and tighten to 4.5 N.m (40 lb in)

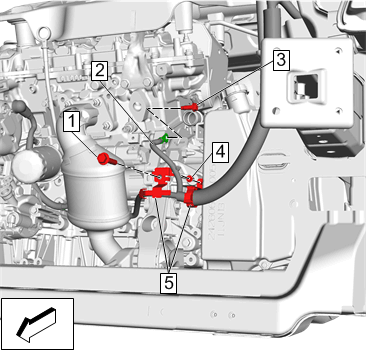

    9. Fig 3: Battery Negative Cable Ground Fastener
    GM4533366Courtesy of GENERAL MOTORS COMPANY
  9. Install Battery Negative Cable (2)
  10. Install Battery Negative Cable Ground Fastener (3) and tighten to 25 N.m (18 lb ft)
  11. Install Battery Positive and Negative Cable Harness Retainer (5) (Qty: 2)
  12. Install Battery Positive and Negative Cable Harness Retainer Nut (4) and tighten to 9 N.m (80 lb in)
  13. Install Transmission Mount Bolt (1) and tighten to 62 N.m (46 lb ft)
  14. Install the left side catalytic converter. Catalytic Converter Replacement - Left Side (Front)
  15. Lower the vehicle.

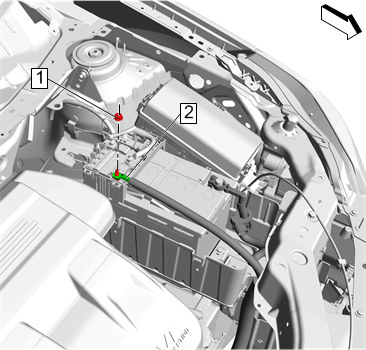

    16. Fig 4: Battery Positive Cable Nut
    GM4533364Courtesy of GENERAL MOTORS COMPANY
  16. Install Battery Positive Cable (2)
  17. Install Battery Positive Cable Nut (1) and tighten to 15 N.m (11 lb ft)

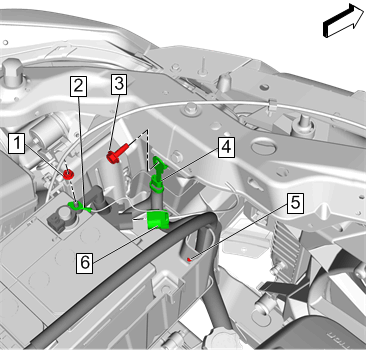

    18. Fig 5: Engine Harness Ground Terminal Nut
    GM4533363Courtesy of GENERAL MOTORS COMPANY
  18. Install Engine Harness Ground Terminal (2)
  19. Install Engine Harness Ground Terminal Nut (1) and tighten to 9 N.m (80 lb in)
  20. Install Battery Negative Cable (4)
  21. Install Battery Negative Cable Ground Fastener (3) and tighten to 22 N.m (16 lb ft)
  22. Engage Retainer (5)
  23. Connect Electrical Connector (6)
  24. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
