Ignition and Start Switch Replacement

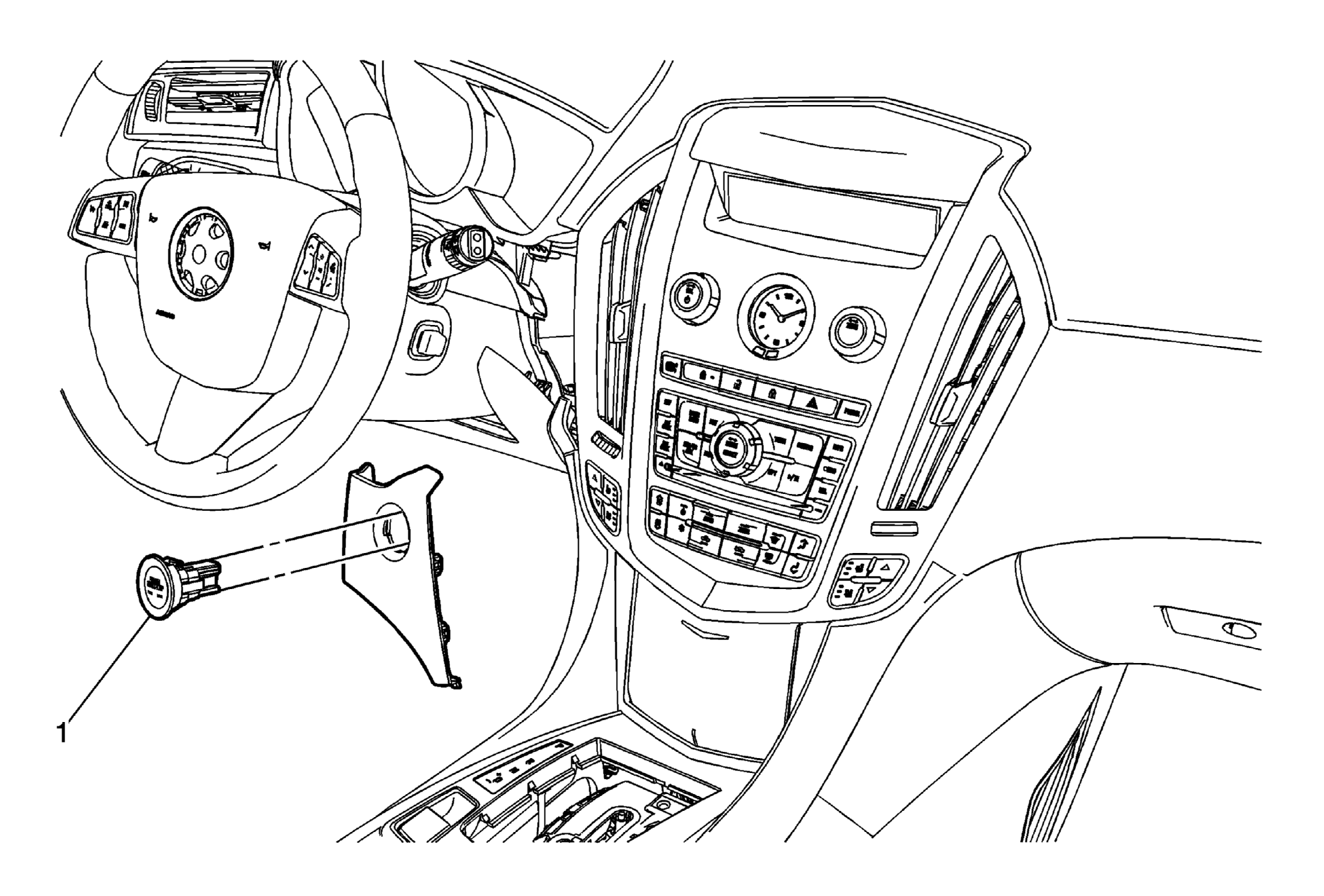

Fig 1: Ignition & Start Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel accessory switch trim center panel. Refer to Instrument Panel Accessory Switch Trim Panel Replacement - Center .
1	Ignition and Start Switch Procedure Disconnect electrical connection. Depress tabs on switch and remove from the panel.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel accessory switch trim center panel. Refer to Instrument Panel Accessory Switch Trim Panel Replacement - Center .

Ignition and Start Switch

Procedure
