Front Side Door Window Weatherstrip Replacement

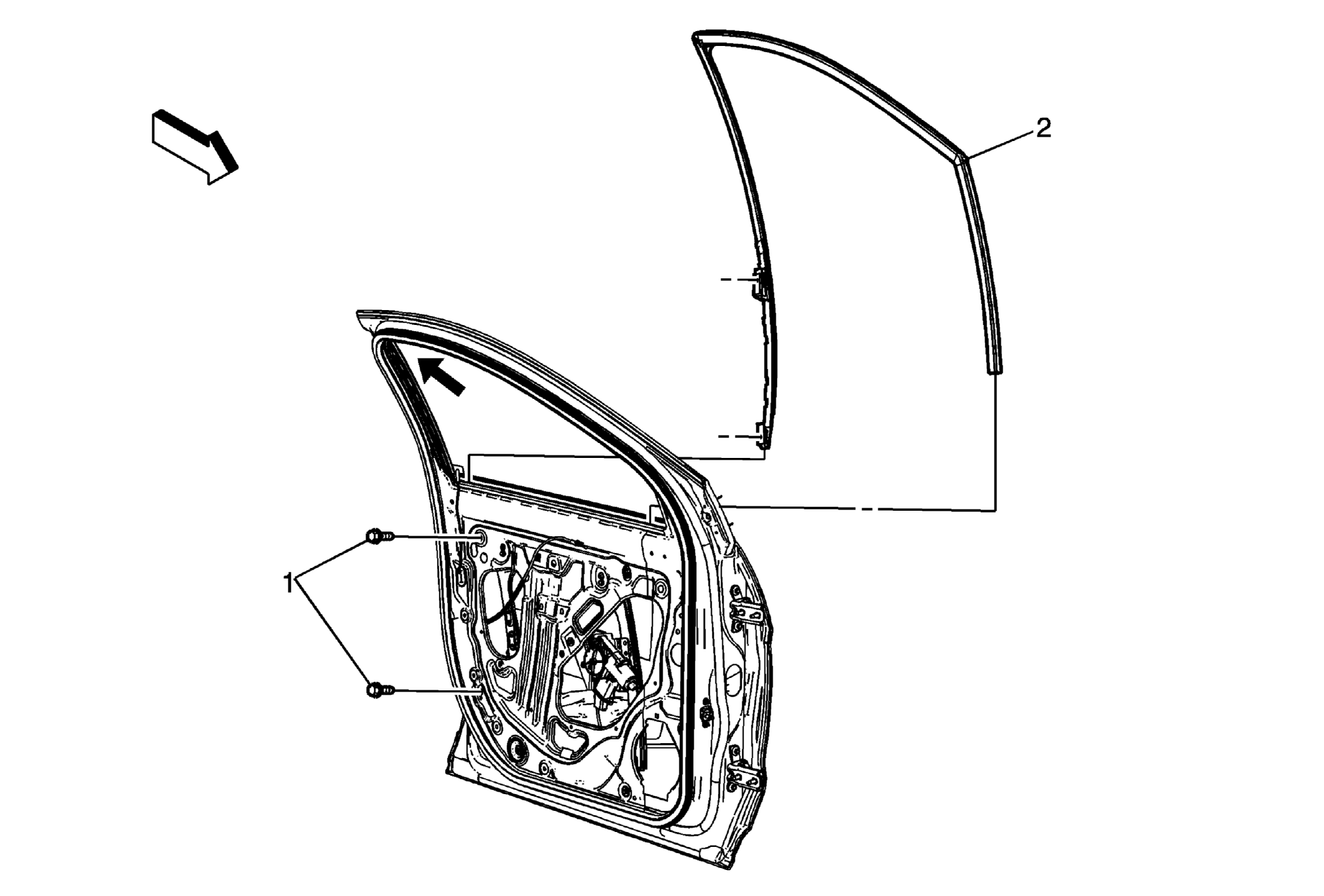

Fig 1: Front Side Door Window Weatherstrip
GM2218069Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the front side door trim panel. Refer to Front Side Door Trim Replacement
  2. Remove the front side door window inner sealing strip. Refer to Front Side Door Window Inner Sealing Strip Replacement
  3. Remove the front side door window garnish molding. Refer to Front Side Door Window Garnish Molding Replacement
  4. Remove the front side door window. Refer to Front Side Door Window Replacement .
1 Front Side Door Window Weatherstrip Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution


Procedure
Remove the water deflector.
Tighten
10 N.m (89 lb in)
2 Front Side Door Window Weatherstrip

Procedure

  1. Starting in the upper corner of the door frame, pull the weatherstrip away from the window frame and lower front channel.
  2. Center the weatherstrip in the center of the door frame. Work the weatherstrip towards the corner.
  3. Install the weatherstrip into door frame channel.
  4. Operate the window to ensure that the window seal properly into the inner door frame.
