Front Side Door Window Frame Rear Applique Replacement

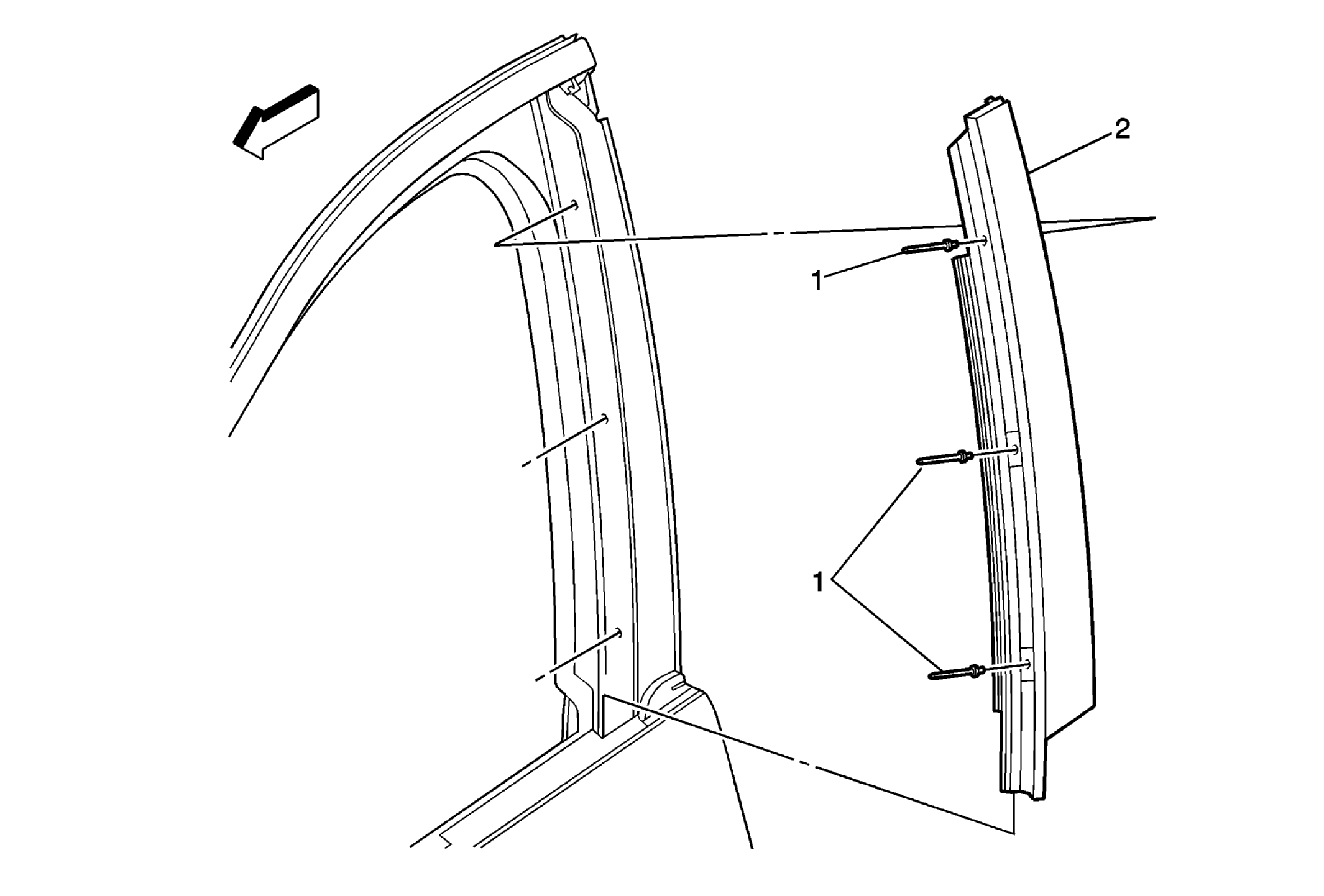

Fig 1: Front Side Door Window Frame Rear Applique & Rivets

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door window belt reveal molding. Refer to Front Side Door Window Belt Reveal Molding Replacement .
1	Front Side Door Window Frame Rear Applique Rivets (Qty: 3) WARNING: Refer to Glass and Sheet Metal Handling Warning Procedure Lower the window to the fully down position. Pull the front side door window weatherstrip from the rear applique to expose the rivets. When drilling cover/protect the interior trim and door from the metal shavings. Using a suitable tool, drill out the rivets from the rear of the front door frame applique.
2	Front Side Door Window Frame Rear Applique Procedure Use a suitable tool, install the rivets in the front side door frame.

Callout

Component Name

Preliminary Procedure
Remove the front side door window belt reveal molding. Refer to Front Side Door Window Belt Reveal Molding Replacement .

Front Side Door Window Frame Rear Applique Rivets (Qty: 3)

WARNING:

Procedure

Lower the window to the fully down position.
Pull the front side door window weatherstrip from the rear applique to expose the rivets.
When drilling cover/protect the interior trim and door from the metal shavings.
Using a suitable tool, drill out the rivets from the rear of the front door frame applique.

Front Side Door Window Frame Rear Applique
Procedure
Use a suitable tool, install the rivets in the front side door frame.
