Rear Side Door Lock Replacement

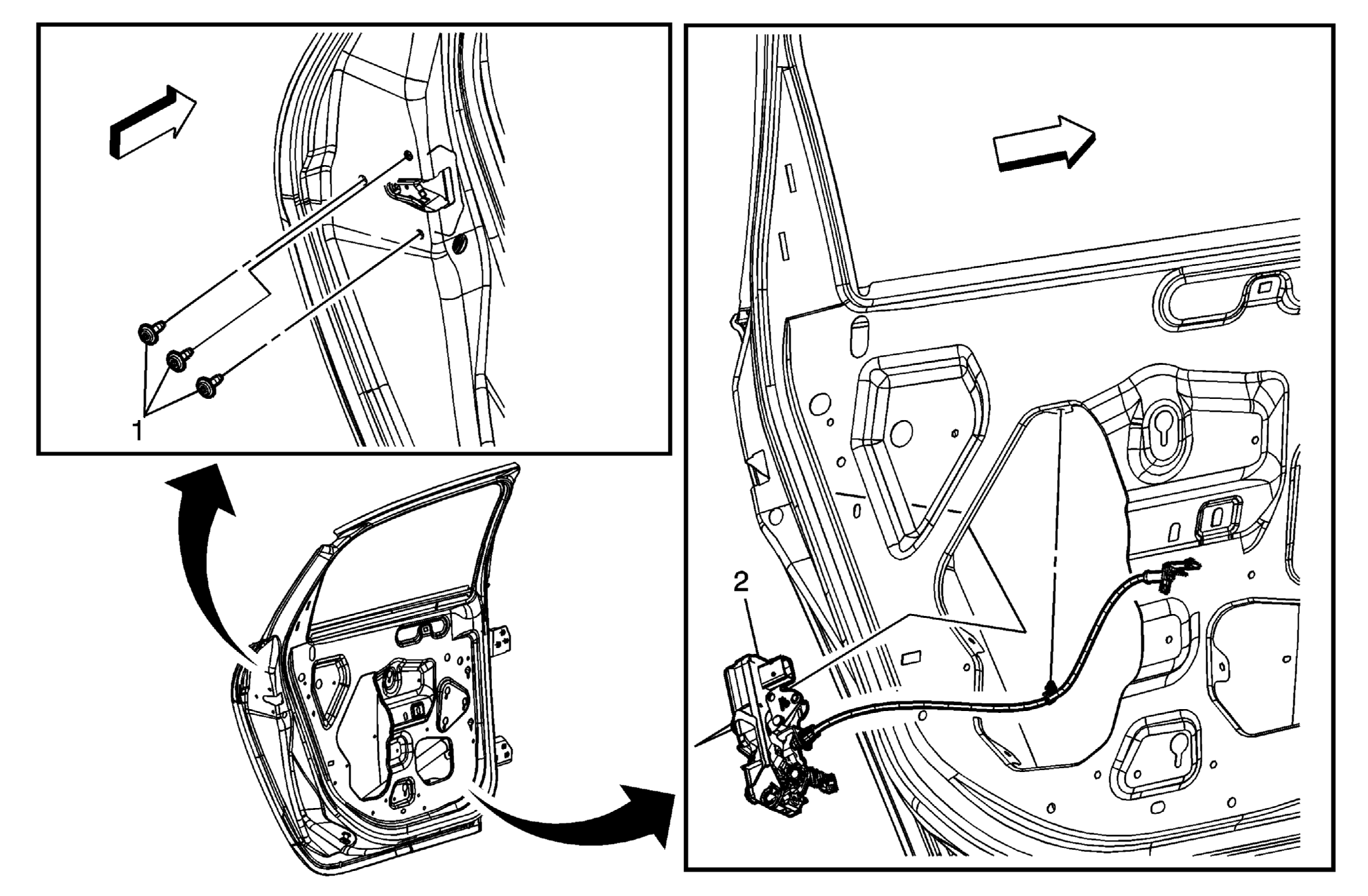

Fig 1: Rear Side Door Lock

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement .
1	Rear Side Door Lock Screws (Qty: 3) CAUTION: Refer to Fastener Caution . Procedures Remove the water deflector. Release the inside door handle cable retainers before removing the rear side door lock. Tighten 10 N.m (89 lb in)
2	Rear Side Door Lock Procedures Disconnect the electrical connector. Transfer the rear side door lock rods. Inspect the door locking system for proper operation before installing the trim panel.

Callout

Component Name

Preliminary Procedure
Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement .

Rear Side Door Lock Screws (Qty: 3)

CAUTION:

Procedures

Remove the water deflector.
Release the inside door handle cable retainers before removing the rear side door lock.

Tighten
10 N.m (89 lb in)

Rear Side Door Lock

Procedures

Disconnect the electrical connector.
Transfer the rear side door lock rods.
Inspect the door locking system for proper operation before installing the trim panel.
