Installation Procedure

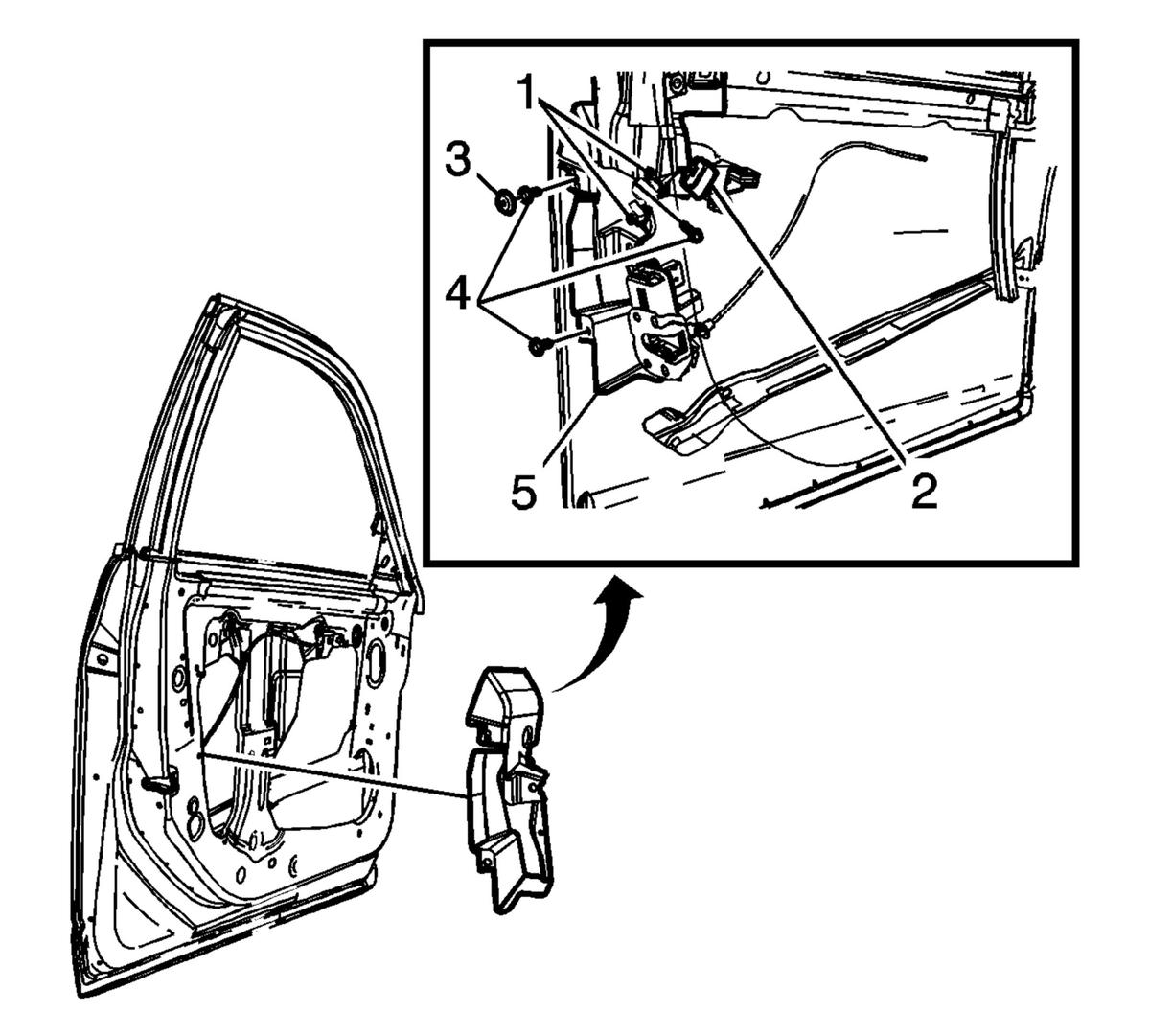

    Fig 1: Front Side Door Lock Cover Components
    GM1920241Courtesy of GENERAL MOTORS COMPANY
  1. Install the front side door lock cover (5) to cover the lock.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the screws (4) to the outer edge of the door and to the inside and tighten to 5 N.m (44 lb in).
  3. Install the screw cover (3).
  4. Connect the electrical connector (2).
  5. Install the wiring harness to the retainers (1).
  6. Inspect the door locking system for proper operation before installing the trim panel.
  7. Install the front side door water deflector.
  8. Install the front side door trim panel. Refer to Front Side Door Trim Replacement .
