Front Side Door Inside Handle Replacement

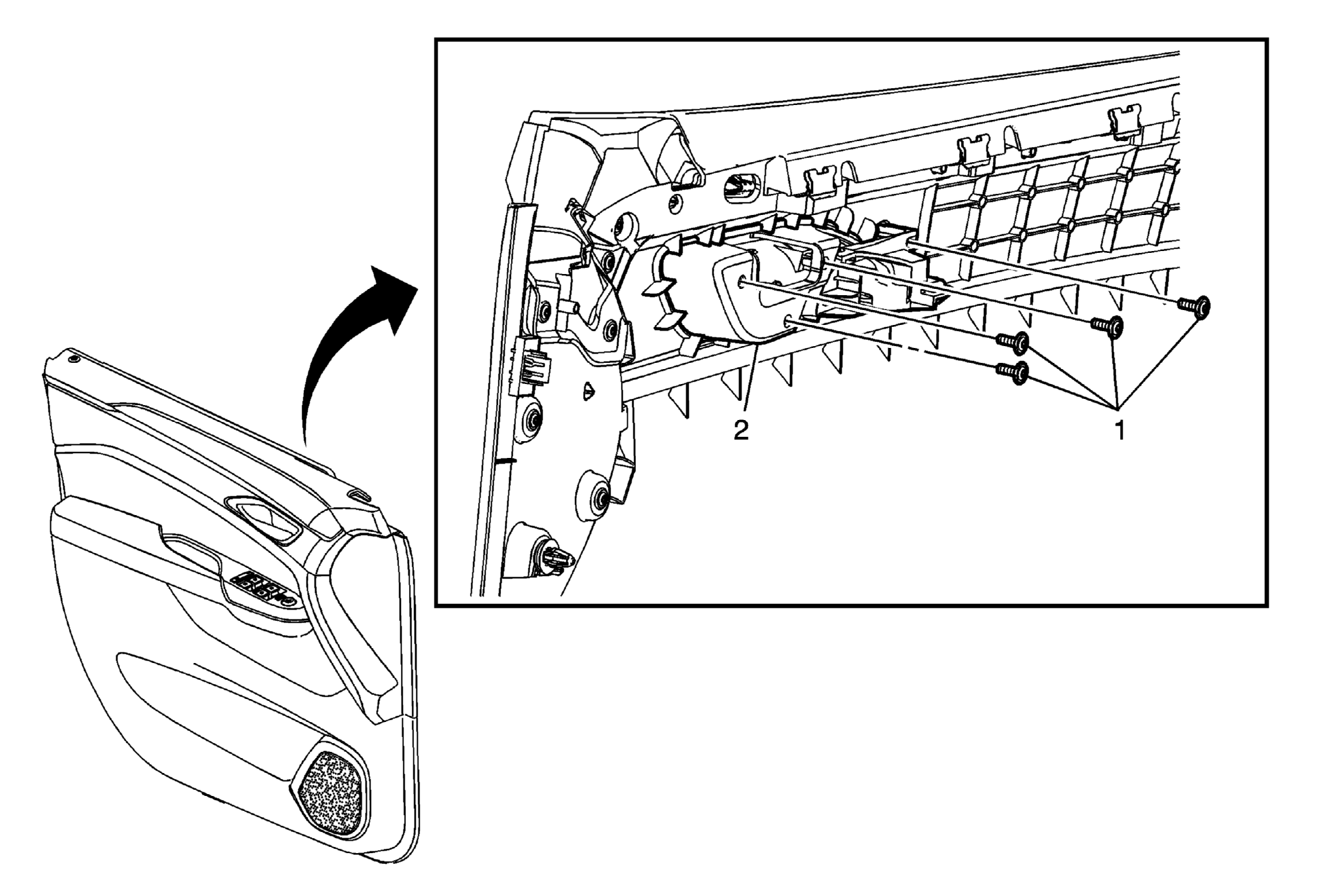

Fig 1: Front Side Door Inside Handle
GM2235968Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove front door trim panel. Refer to Front Side Door Trim Replacement .
1 Front Side Door Inside Handle Screw (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Front Side Door Inside Handle Assembly
