Installation Procedure

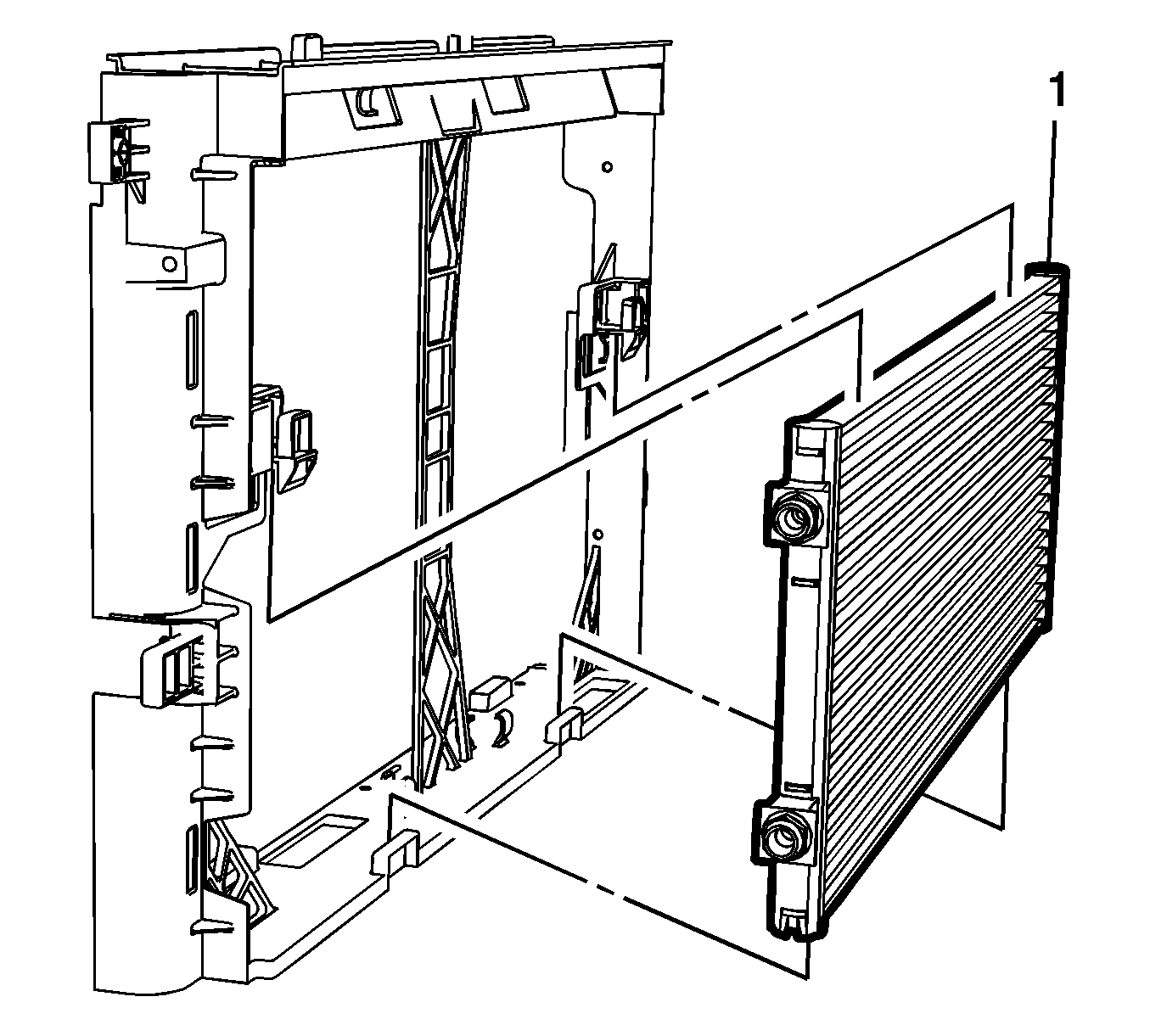

Fig 1: Transmission Fluid Auxiliary Cooler

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Depress tabs to install transmission fluid auxiliary cooler to the air condition condenser bracket.

Install the transmission fluid auxiliary cooler (1) to the air conditioning condenser bracket.

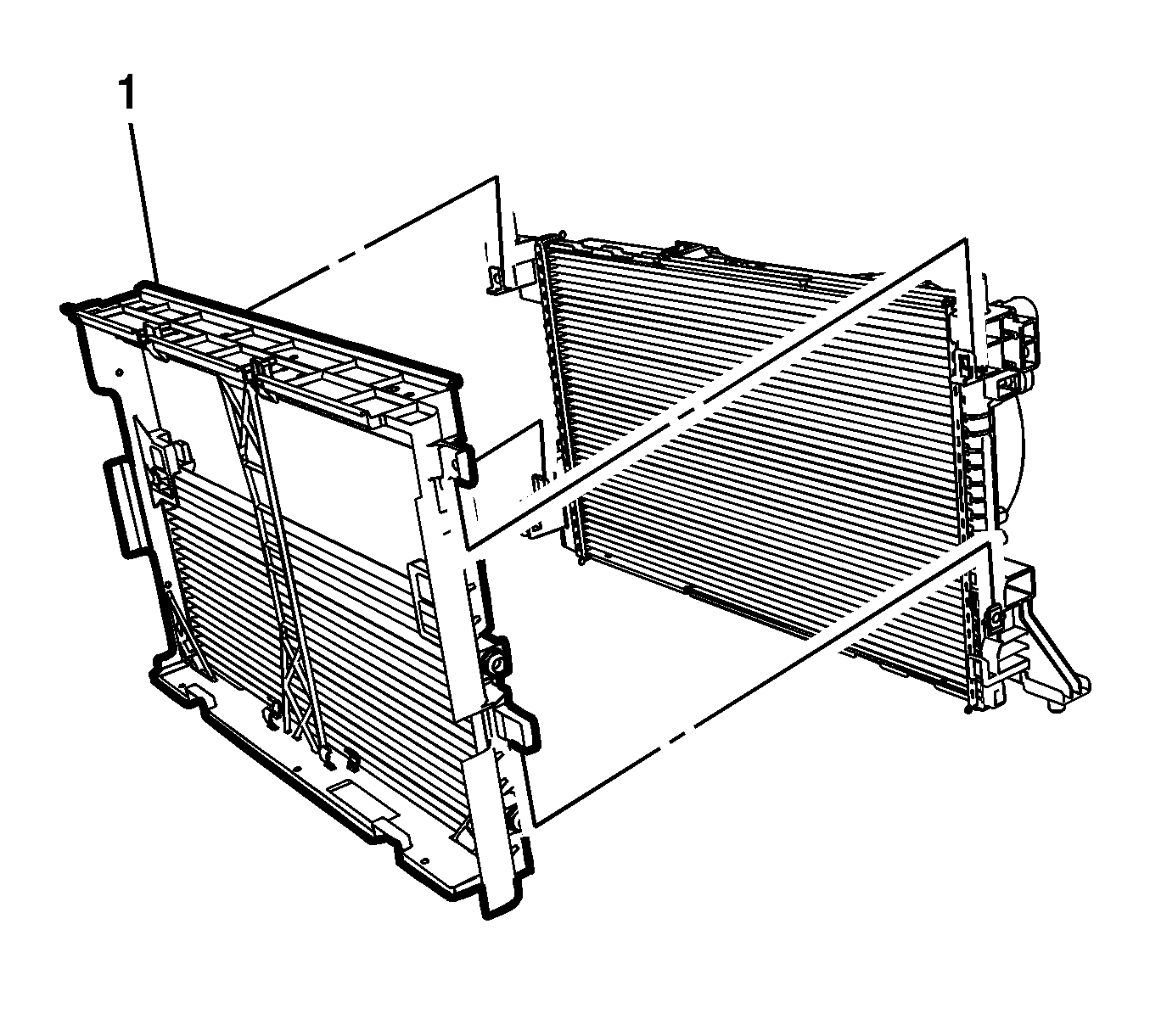

Fig 2: Air Conditioning Condenser, Bracket And Radiator

Courtesy of GENERAL MOTORS COMPANY

Install the air conditioning condenser bracket (1) to the radiator.
Install the transmission fluid cooler thermal bypass valve. Refer to Transmission Fluid Cooler Thermal Bypass Valve Replacement .
Install the air conditioning condenser. Refer to Air Conditioning Condenser Replacement .
