Fuel Tank Shield Replacement

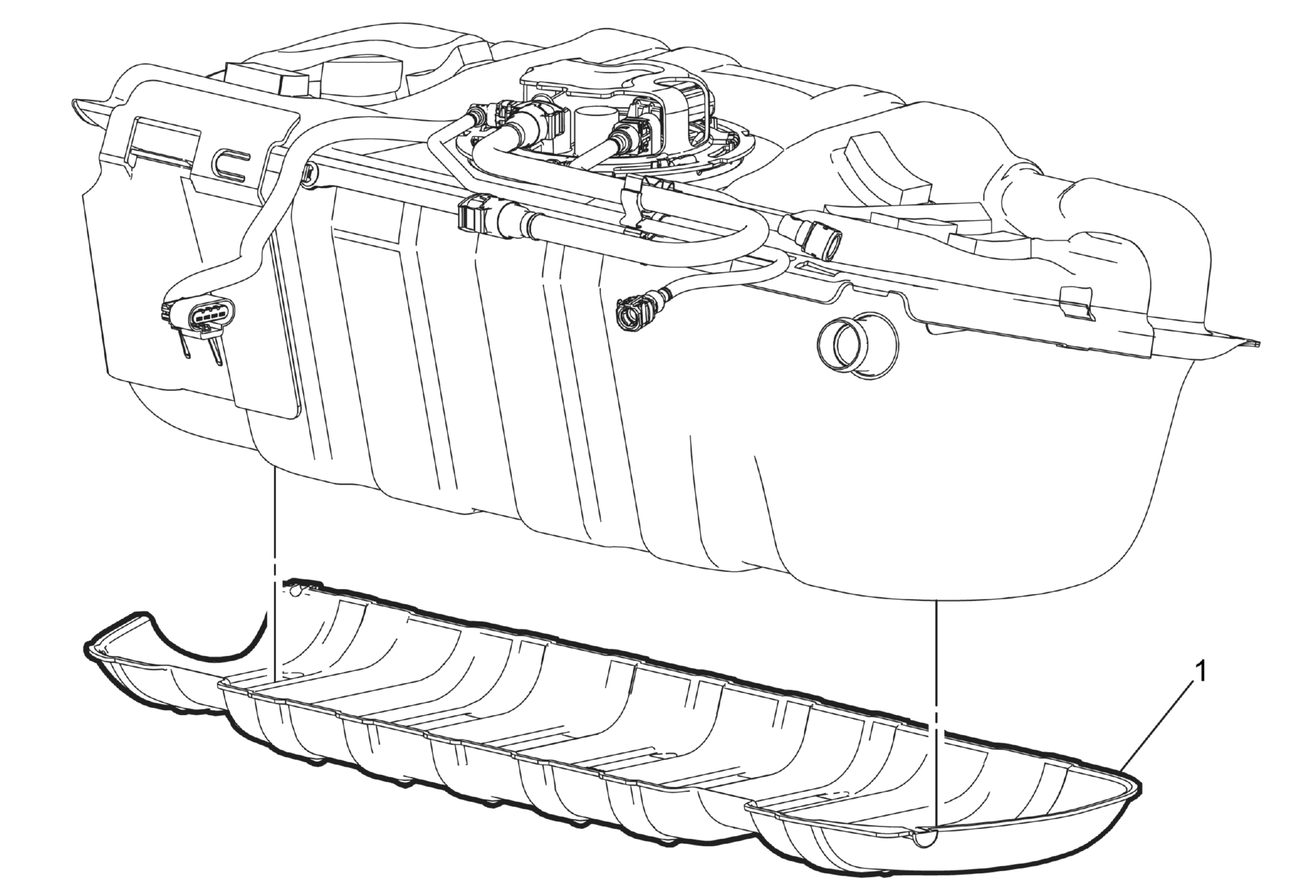

Fig 1: Fuel Tank Shield
GM3648157Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the fuel tank. Refer to Fuel Tank Replacement .
1 Fuel Tank Shield
