Ignition and Start Switch Replacement

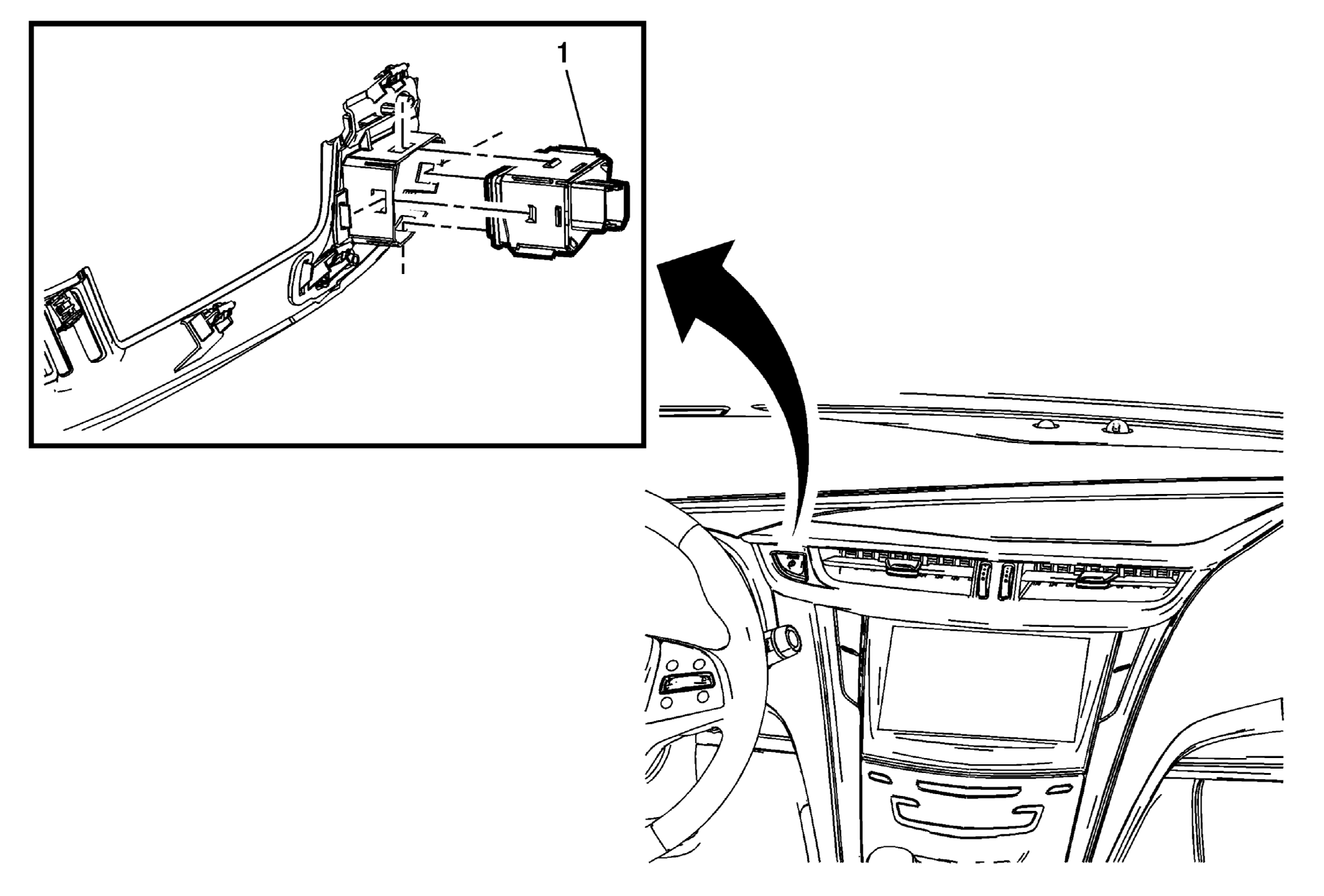

Fig 1: Ignition and Start Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement .
1	Ignition and Start Switch Procedure Disconnect electrical connection. Depress tabs on switch and remove from the applique.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement .

Ignition and Start Switch

Procedure
