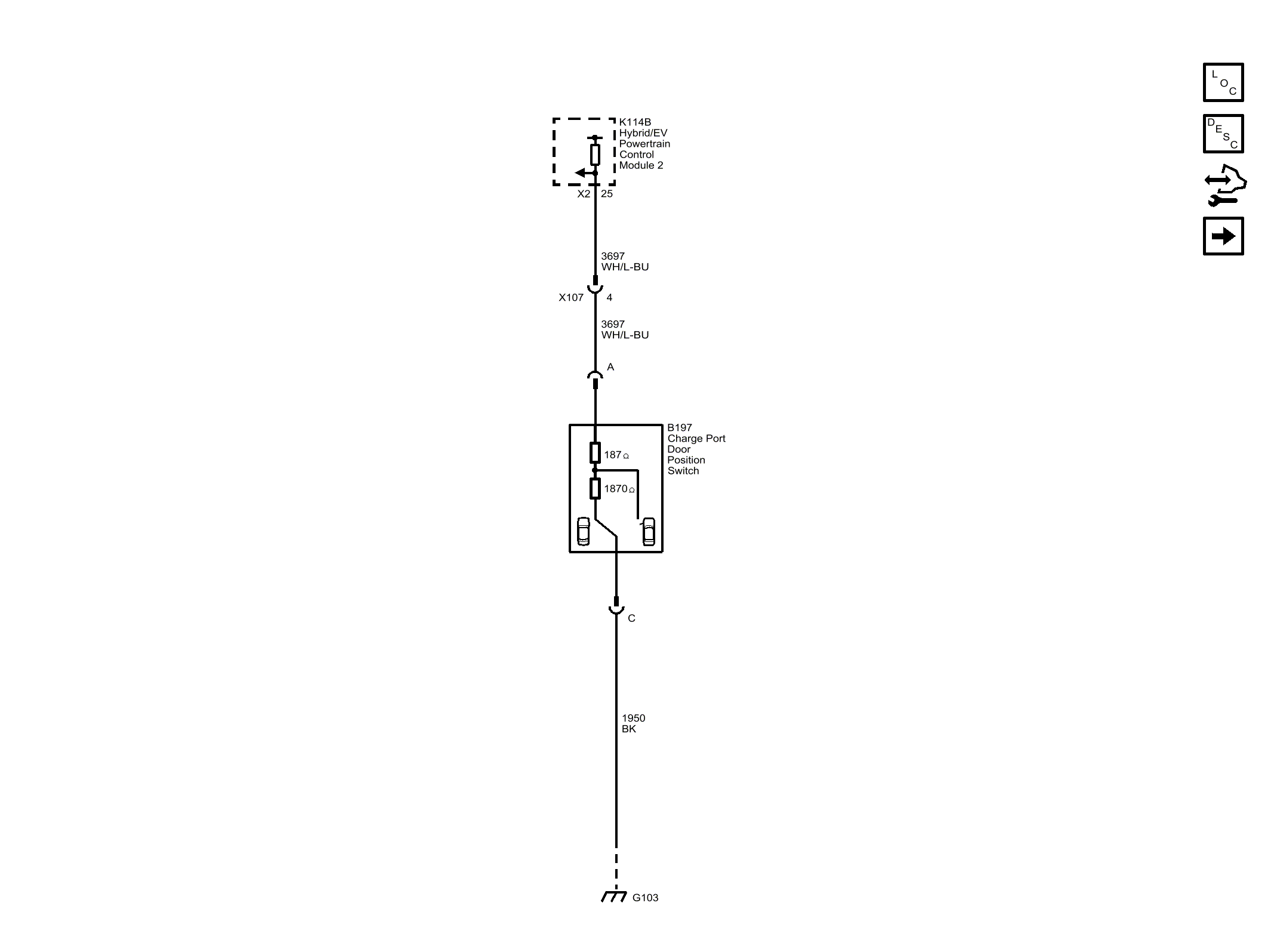

Home >> Cadillac >> 2016 >> ELR >> Repair and Diagnosis >> Electrical >> Body Electrical >> Plug-In Charging System >> Schematic Wiring Diagrams >> Plug-In Charging Wiring Schematics >> Charging Port Door
