Front Side Door Window Regulator Motor Replacement

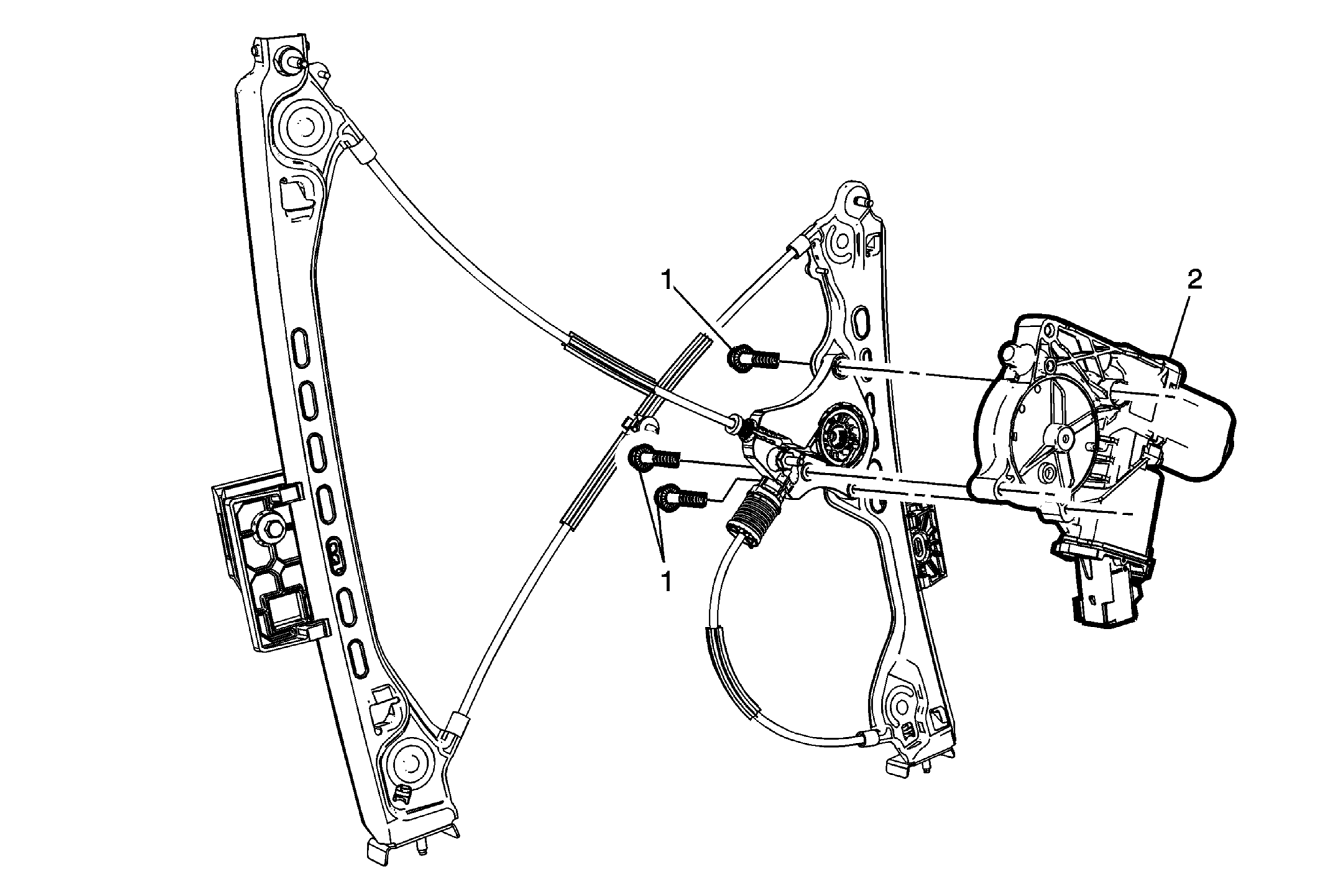

Fig 1: Front Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement .
1	Front Side Door Window Regulator Motor Bolt (Qty: 3) Tighten  11 N.m (97 lb in)
2	Front Side Door Window Regulator Motor
