Installation Procedure

  1. When replacing the instrument panel compartment, transfer all necessary components.
  2. Connect the electrical connections.

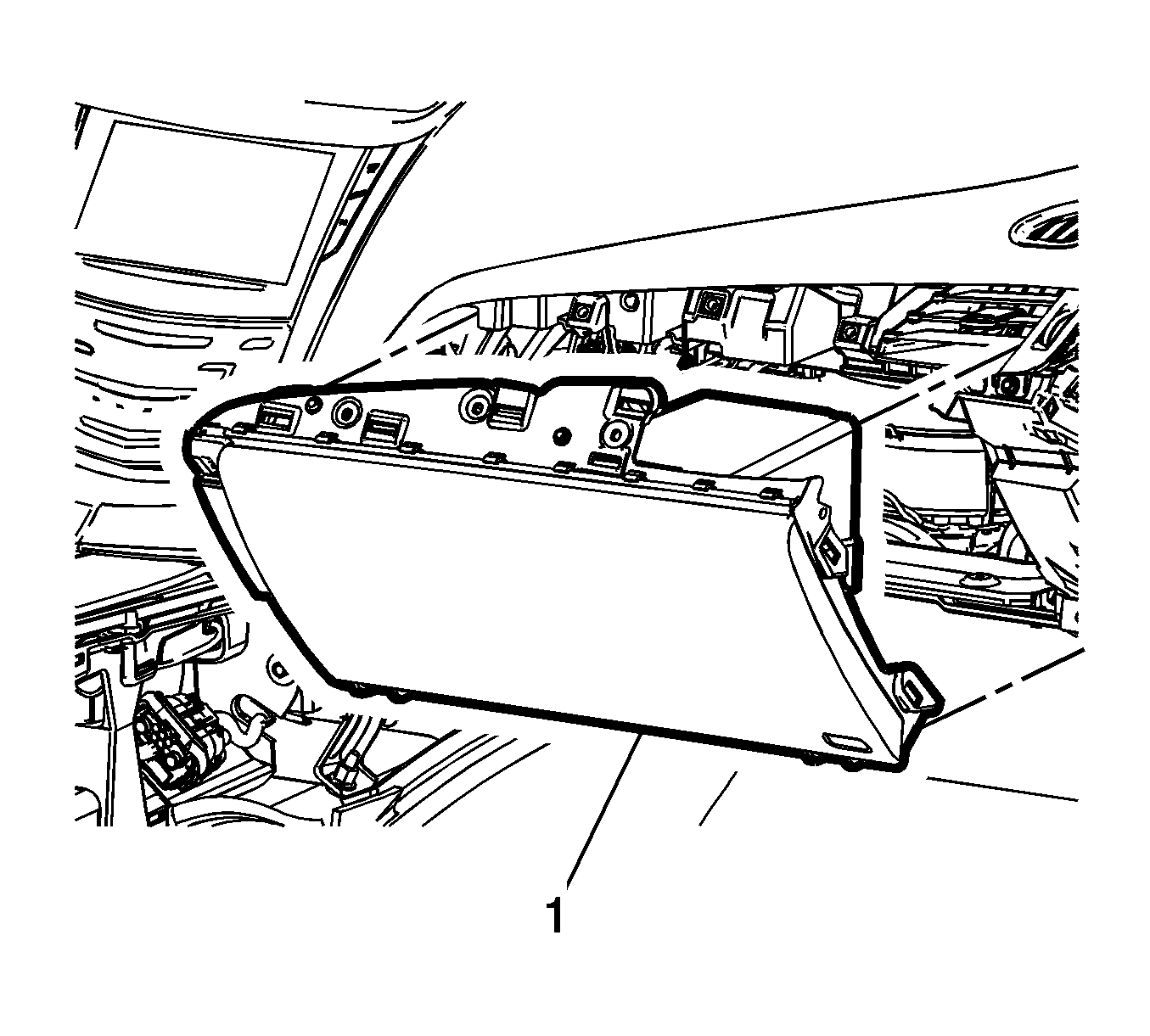

    3. Fig 1: Instrument Panel Compartment
    GM3576501Courtesy of GENERAL MOTORS COMPANY
  3. Install the instrument panel compartment (1) to the instrument carrier.

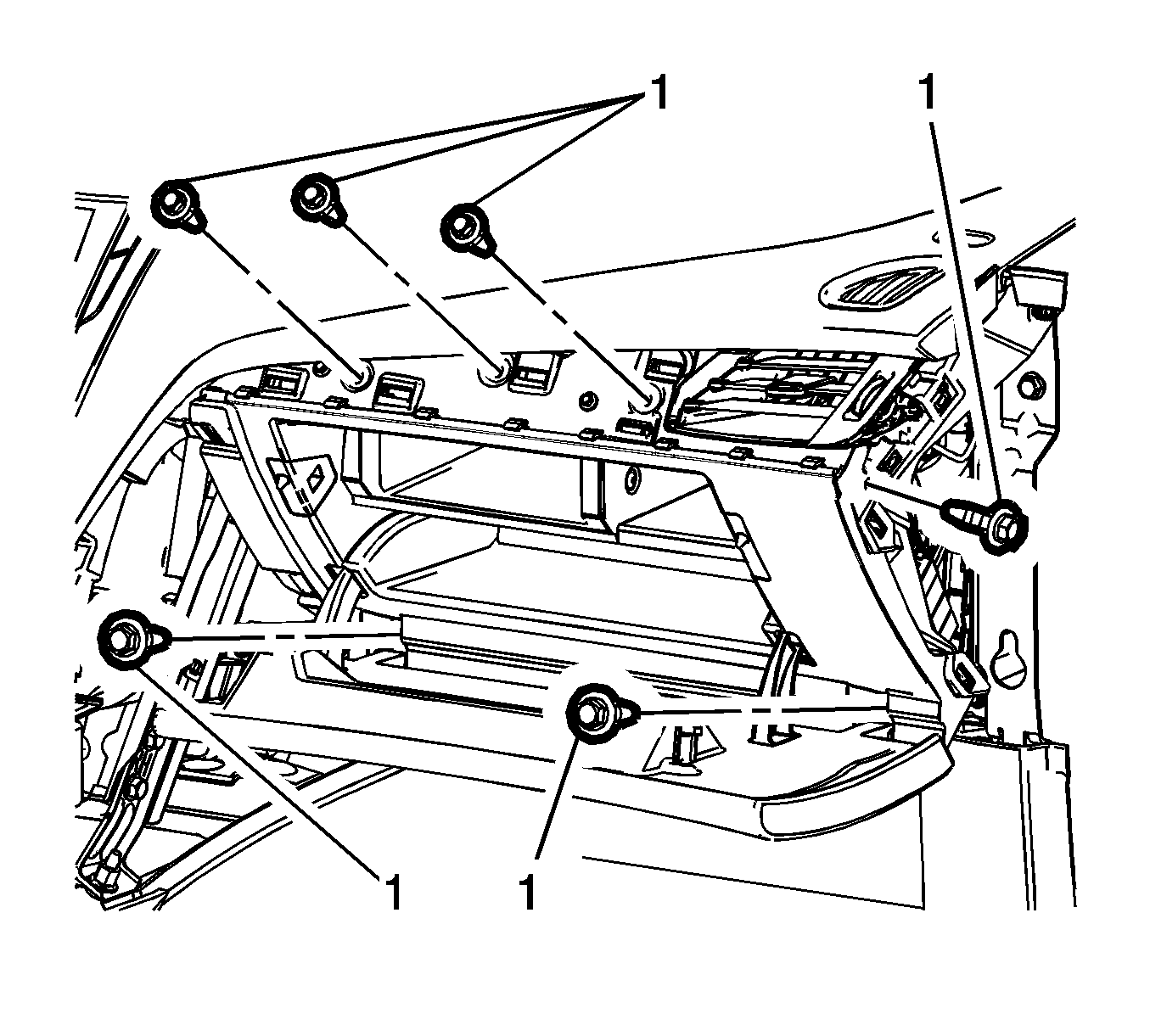

    4. Fig 2: Instrument Panel Compartment To Instrument Carrier Bolts
    GM3576500Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install the bolts (1) securing the instrument panel compartment to the instrument carrier and tighten to 2.5 N.m (22 lb in).

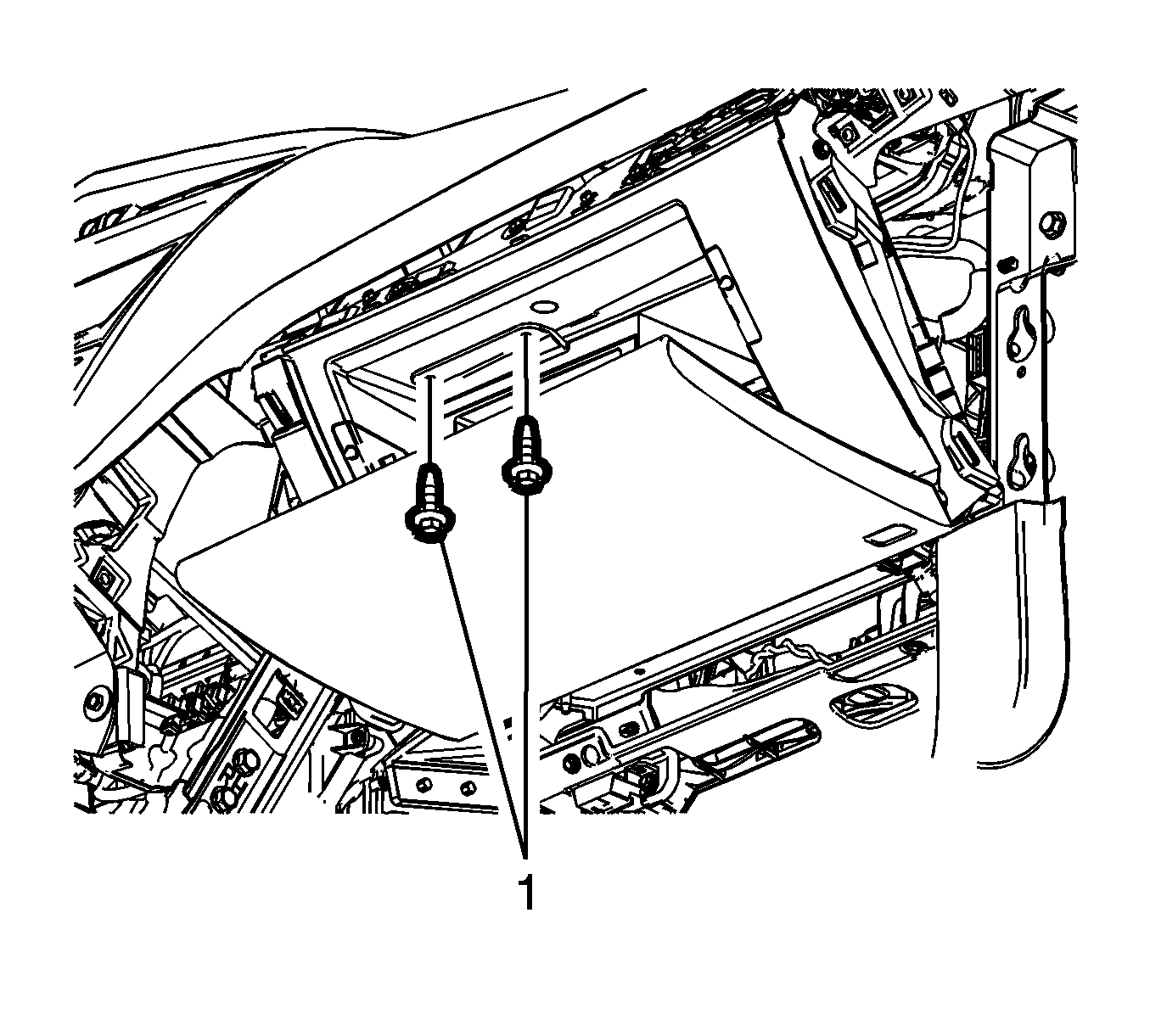

    5. Fig 3: Top Of Instrument Panel Compartment Bolts
    GM3576499Courtesy of GENERAL MOTORS COMPANY
  5. Install the bolts (1) securing the top of the instrument panel compartment and tighten to 2.5 N.m (22 lb in).

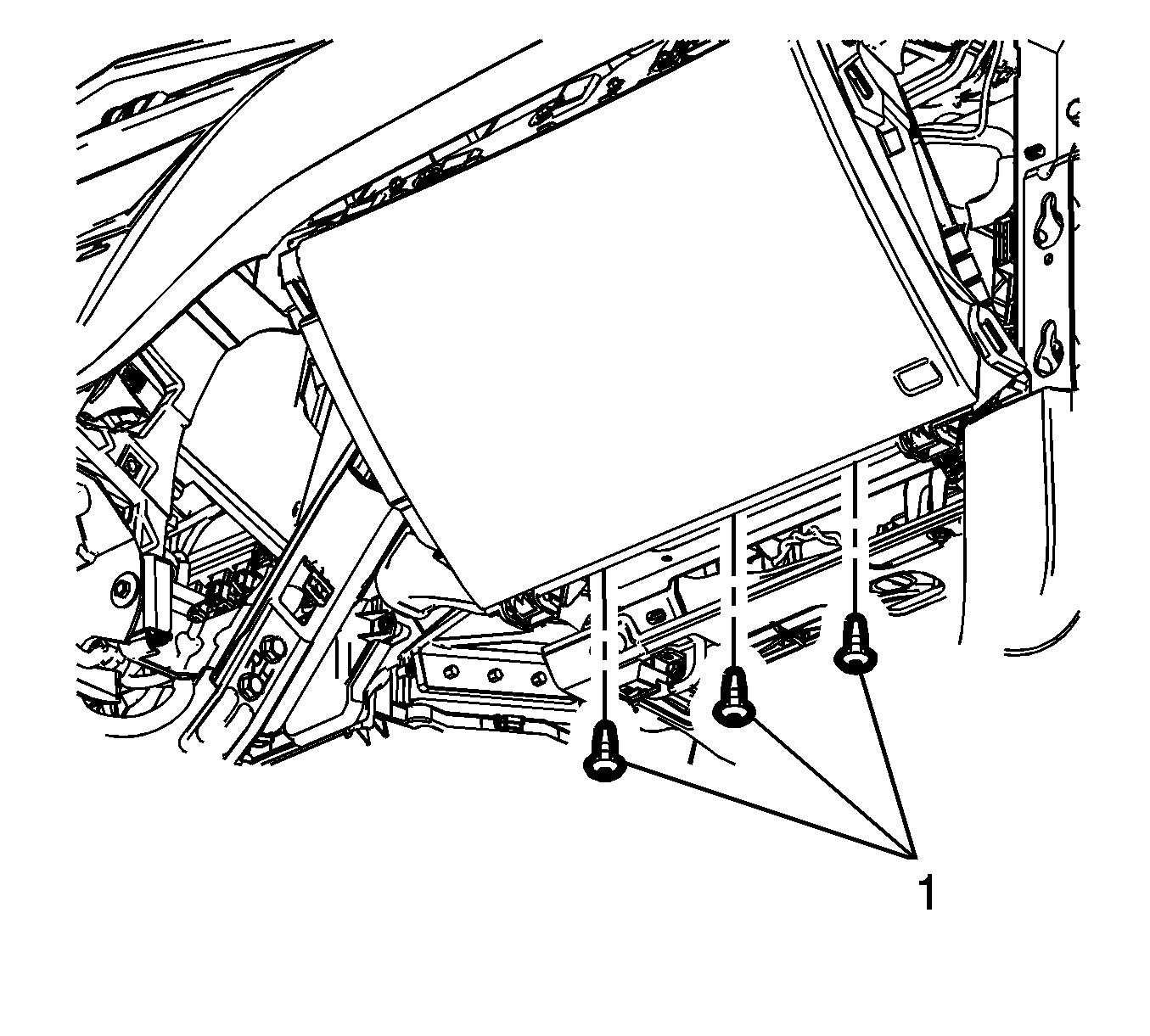

    6. Fig 4: Instrument Panel Compartment Bolts
    GM3576498Courtesy of GENERAL MOTORS COMPANY
  6. Install the bolts (1) securing the bottom of the instrument panel compartment to the instrument carrier and tighten to 2.5 N.m (22 lb in).
  7. Install the passenger side instrument panel lower airbag. Refer to Instrument Panel Lower Airbag Replacement - Passenger Side
  8. Install the instrument panel lower center trim panel. Refer to Instrument Panel Lower Center Trim Panel Replacement .
  9. Install the right instrument panel trim plate applique. Refer to Instrument Panel Trim Plate Applique Replacement - Right Side .
