Low Tire Pressure Indicator Module Replacement

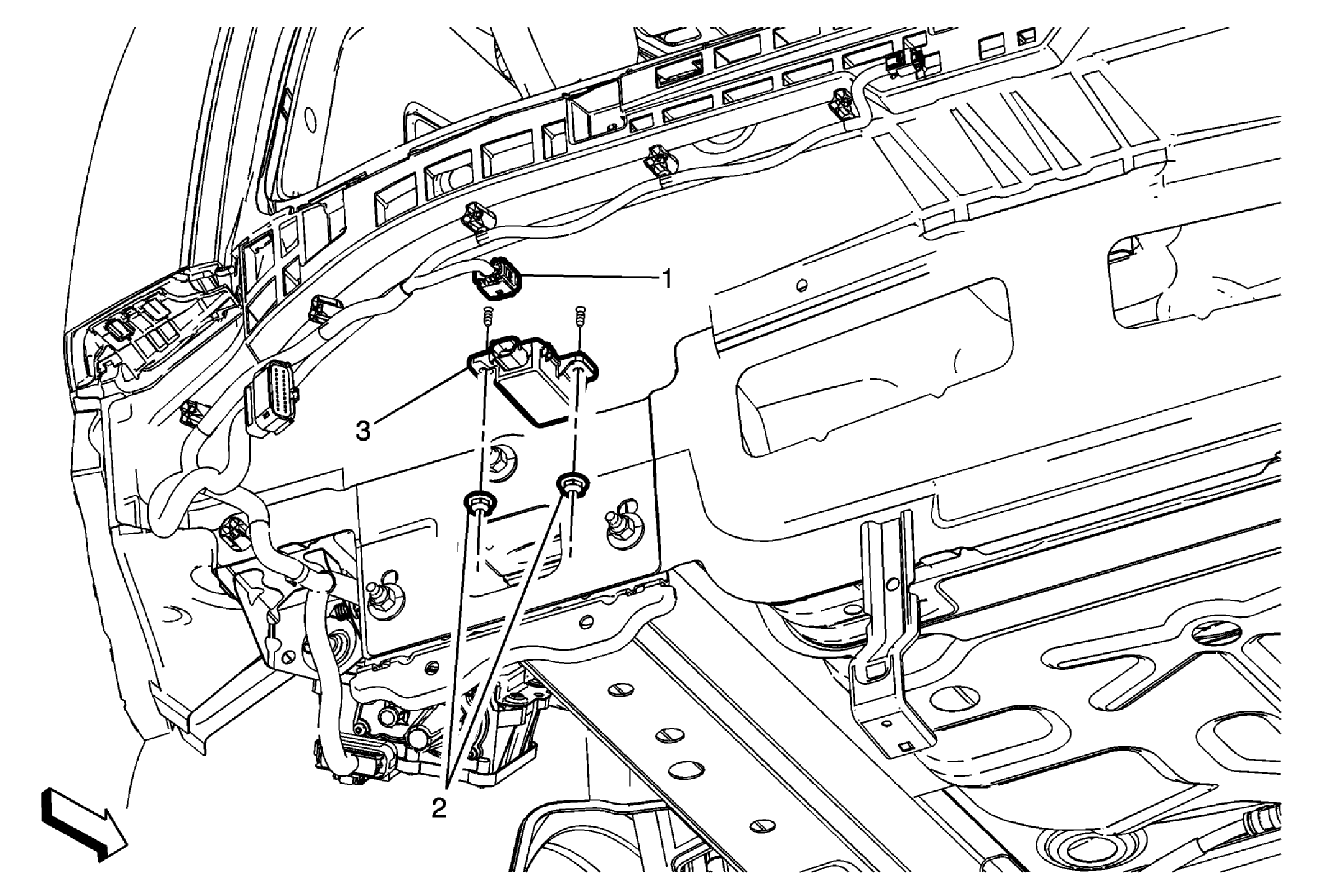

Fig 1: Low Tire Pressure Indicator Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the rear bumper lower facia. Refer to Rear Bumper Lower Fascia Replacement .
1	Low Tire Pressure Indicator Module Connector Procedure Disconnect electrical connector.
2	Low Tire Pressure Indicator Module Nuts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 1.6 N.m (14 lb in)
3	Low Tire Pressure Indicator Module
