Drivers Assistance Systems - ADAS
>>
Object Detection System And Pedestrian Protection System
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics
>>
Forward Collision (UEU) and Lane Departure (UFL)
Forward Collision (UEU) and Lane Departure (UFL)

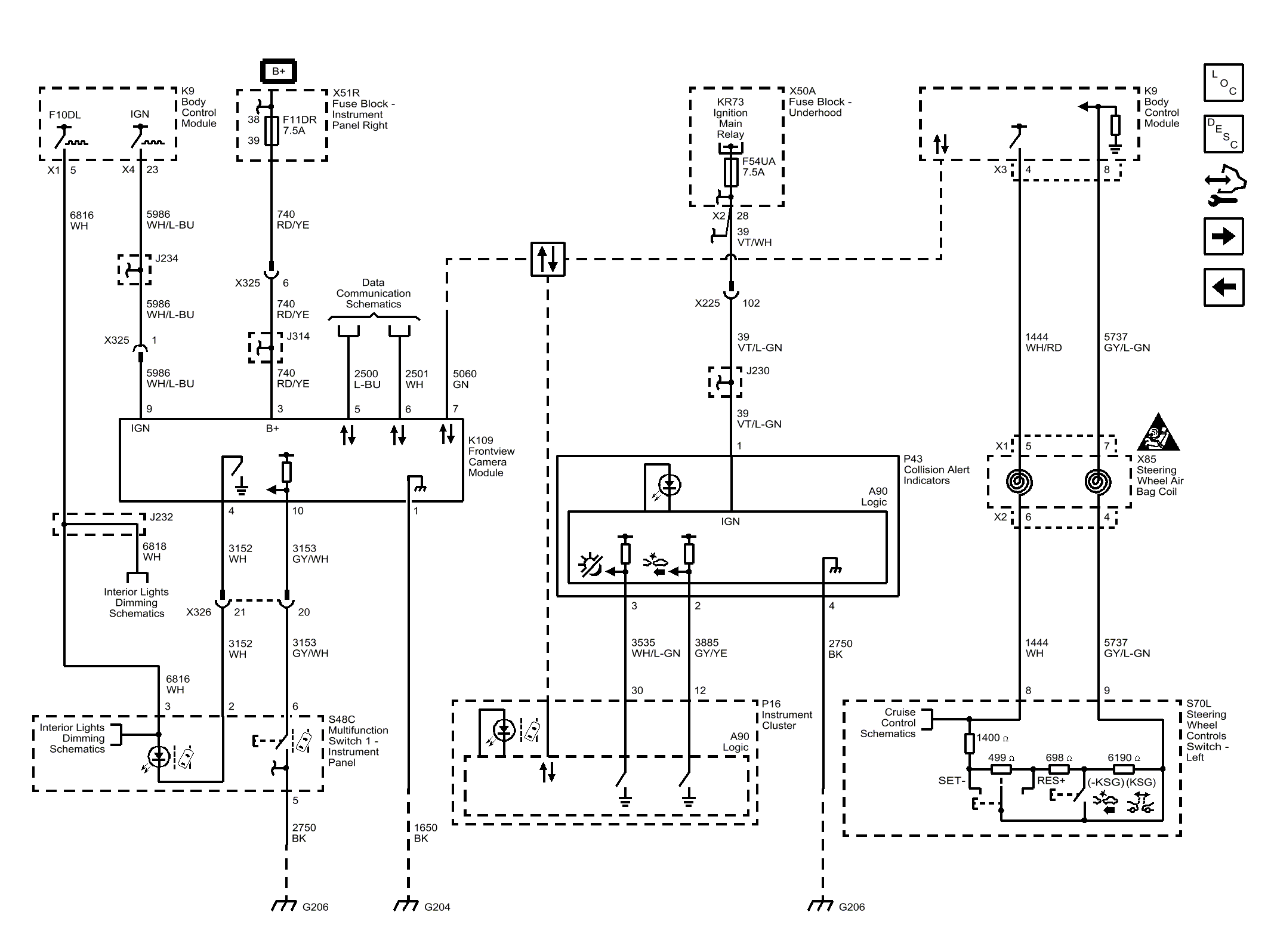

Fig 1: Forward Collision (UEU) and Lane Departure (UFL)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
