Ignition Lock Key Transmitter Antenna Replacement - Right Side

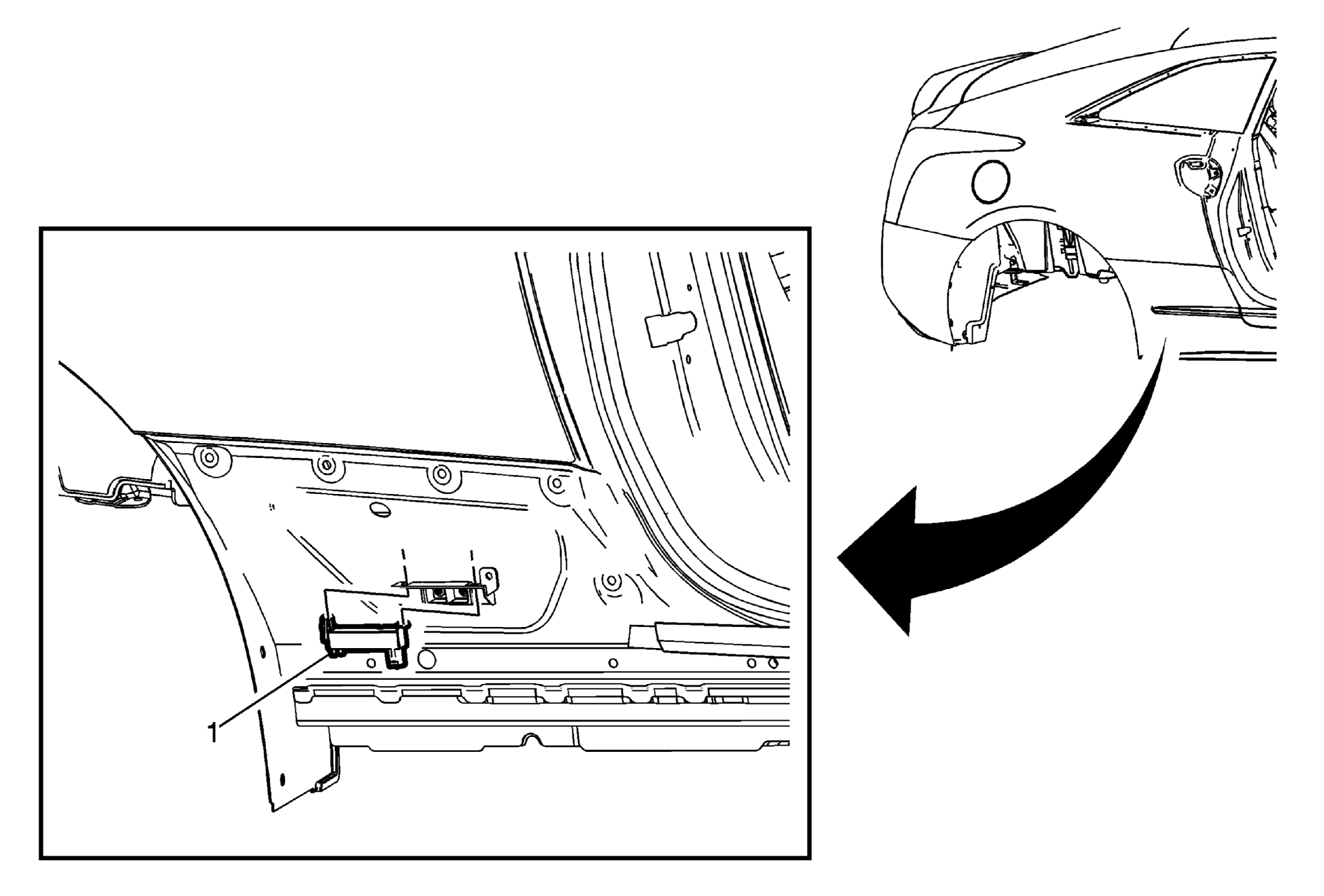

Fig 1: Ignition Lock Key Transmitter Antenna - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rocker panel molding. Refer to Rocker Panel Molding Replacement .
1	Ignition Lock Key Transmitter Antenna Procedures Disconnect the electrical connector. Depress the tabs and remove the ignition lock key transmitter antenna from the bracket.

Callout

Component Name

Preliminary Procedure
Remove the rocker panel molding. Refer to Rocker Panel Molding Replacement .

Ignition Lock Key Transmitter Antenna

Procedures

Disconnect the electrical connector.
Depress the tabs and remove the ignition lock key transmitter antenna from the bracket.
