Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Infotainment
>>
Cellular System, Entertainment System, And Navigation System
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics
>>
Radio Power, Ground and Serial Data
Radio Power, Ground and Serial Data

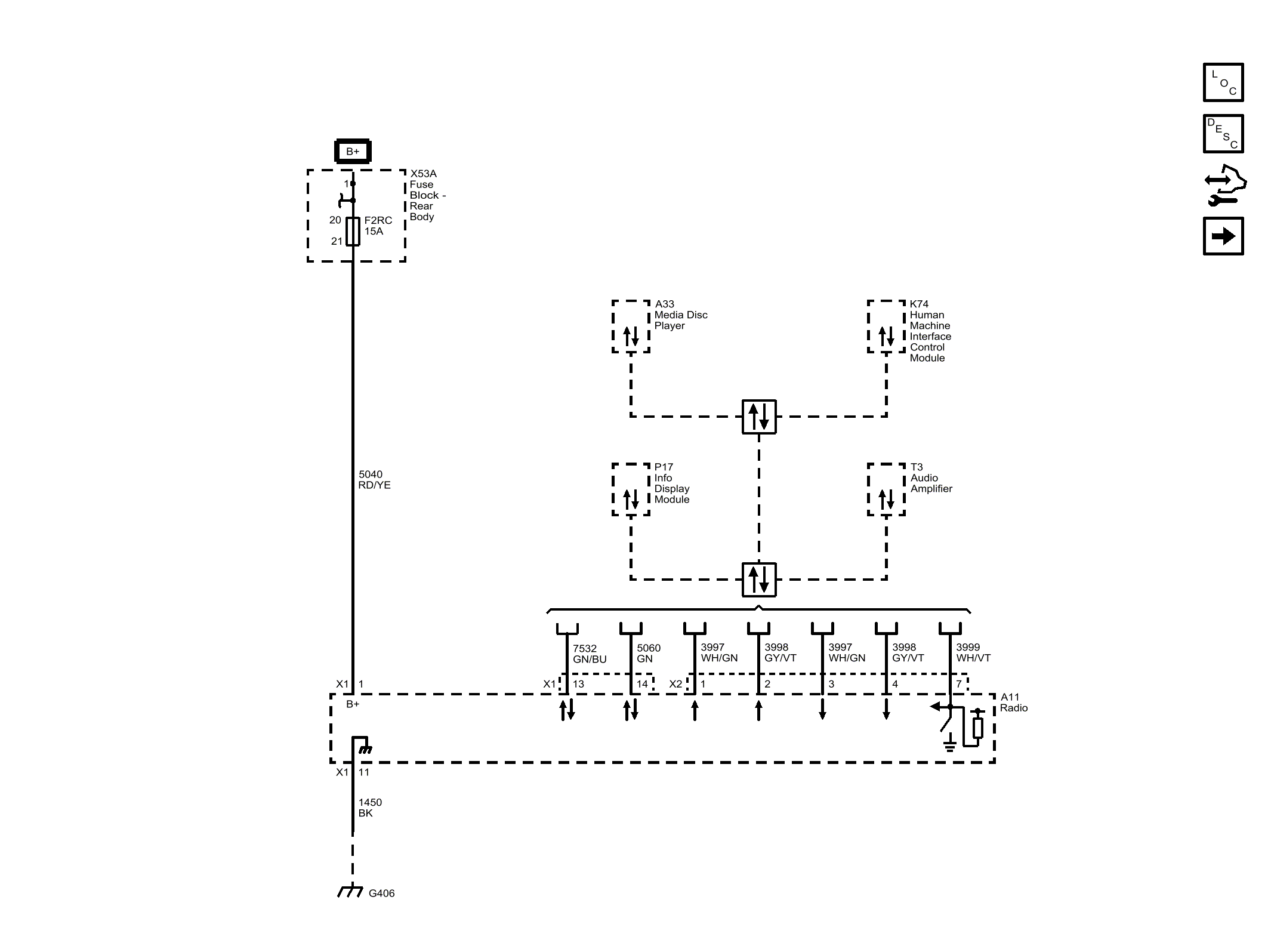

Fig 1: Radio Power, Ground and Serial Data
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
