Human Machine Interface and Display Power, Ground, Serial Data and Microphone

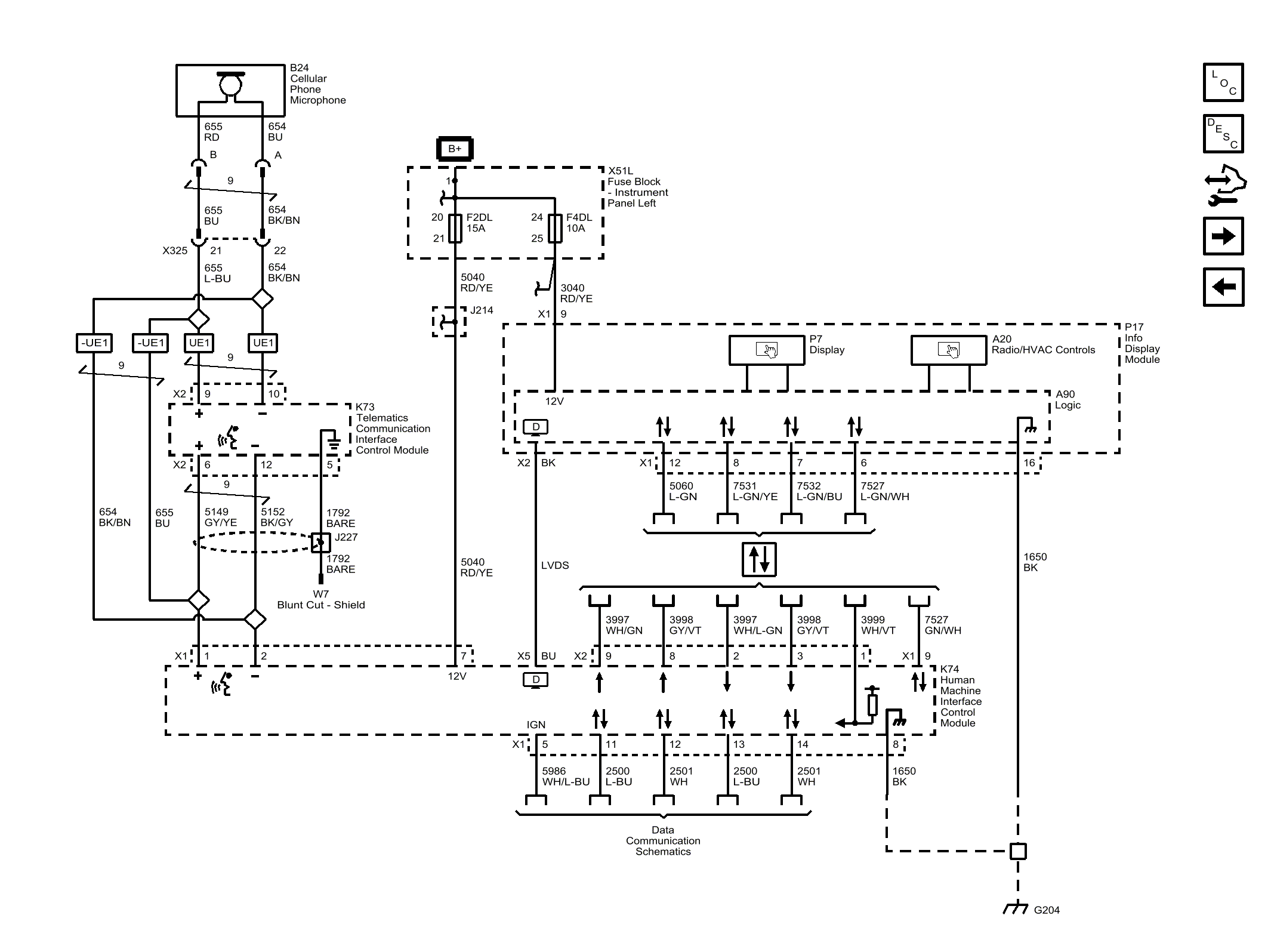

Fig 1: Human Machine Interface and Display Power, Ground, Serial Data and Microphone

GM4040856

Courtesy of GENERAL MOTORS COMPANY
