Instrument Panel Multifunction Switch Replacement

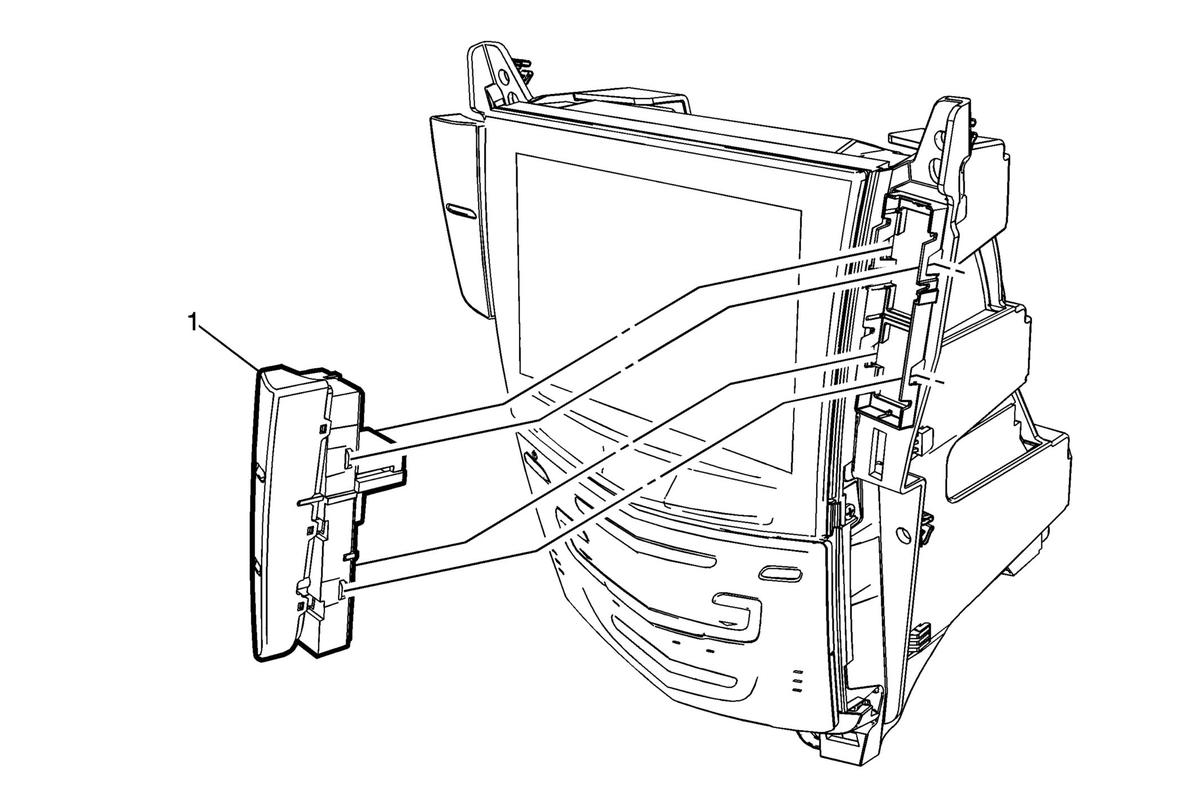

Fig 1: Instrument Panel Multifunction Switch
GM3462127Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel cluster trim plate applique. Refer to Instrument Panel Trim Plate Replacement .
1 Instrument Panel Multifunction Switch

Procedure

  1. Using the appropriate tool, depress the tabs on switch to remove from the bracket.
  2. Disconnect the electrical connector.
