Front Passenger Door Module

WARNING: This page is about a different car, the 2015 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

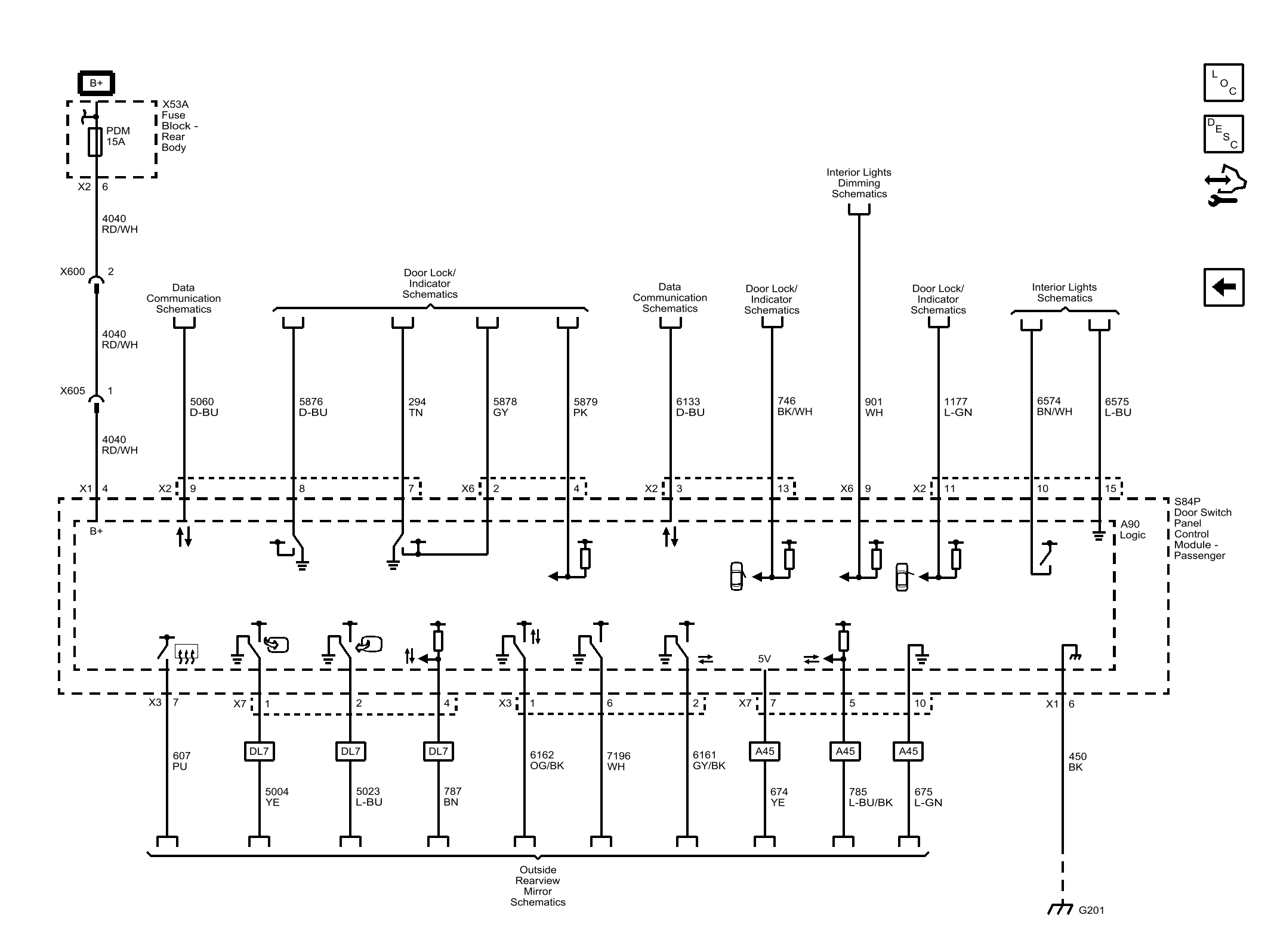

Fig 1: Front Passenger Door Module
GM3766335Courtesy of GENERAL MOTORS COMPANY
