Installation Procedure

  1. Install the transmission support (3).

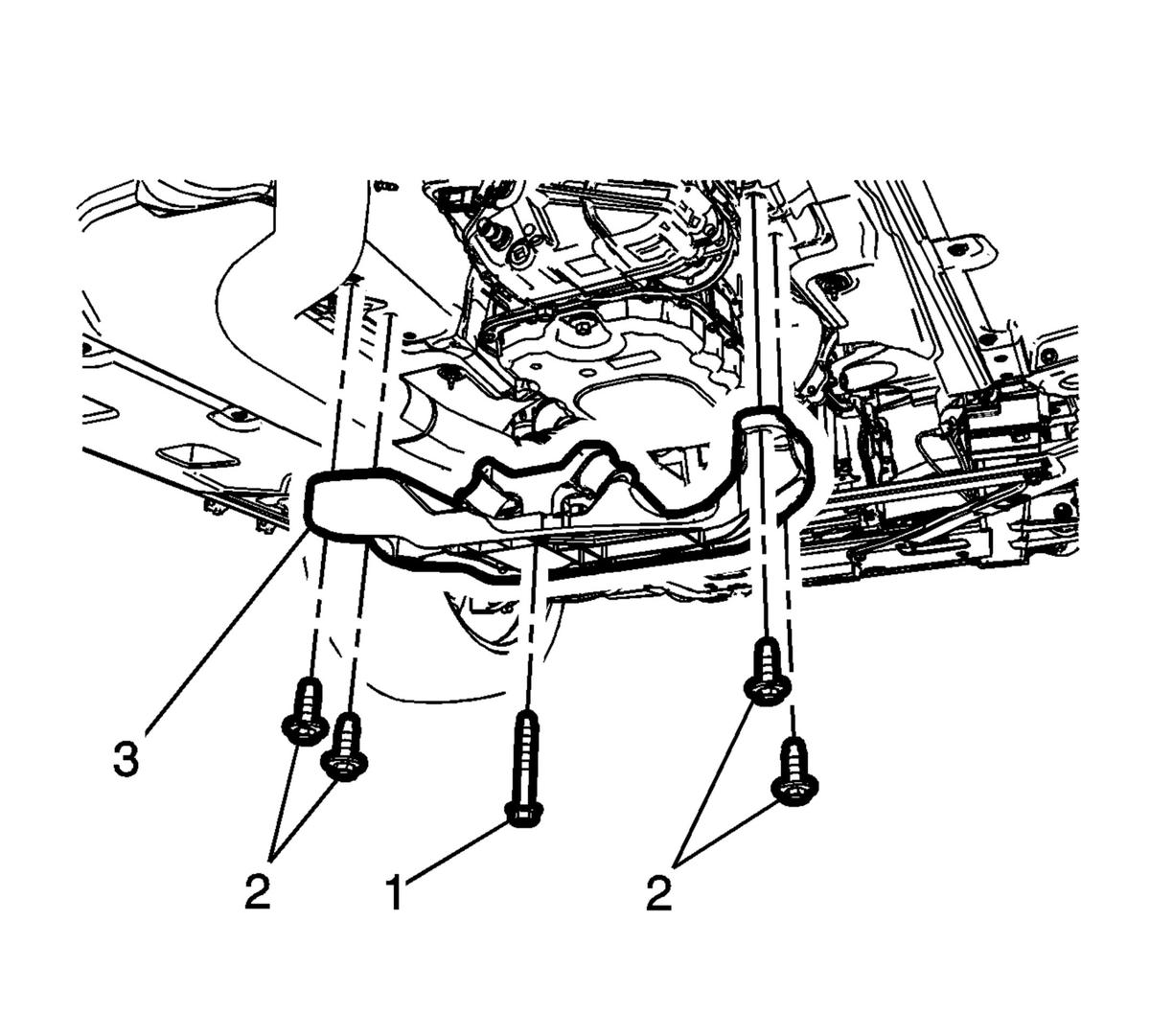

    Fig 1: Transmission Support
    GM2908631Courtesy of GENERAL MOTORS COMPANY
  2. Install the transmission support bolts (2) and tighten to 60 N.m (44 lb ft).
    CAUTION: Refer to Fastener Caution .
    NOTE: The engine mounts must NOT bend or deflect from the vertical position, damage to the mount will occur.
  3. Install the transmission travel mount bolt (1) and tighten to 100 N.m (74 lb ft).
  4. Remove the support from under the transmission.
  5. Lower the vehicle.
