Removal Procedure

Front Brake Rotor Replacement (J55, J56)Front Brake Rotor Replacement (J6H) » Remove

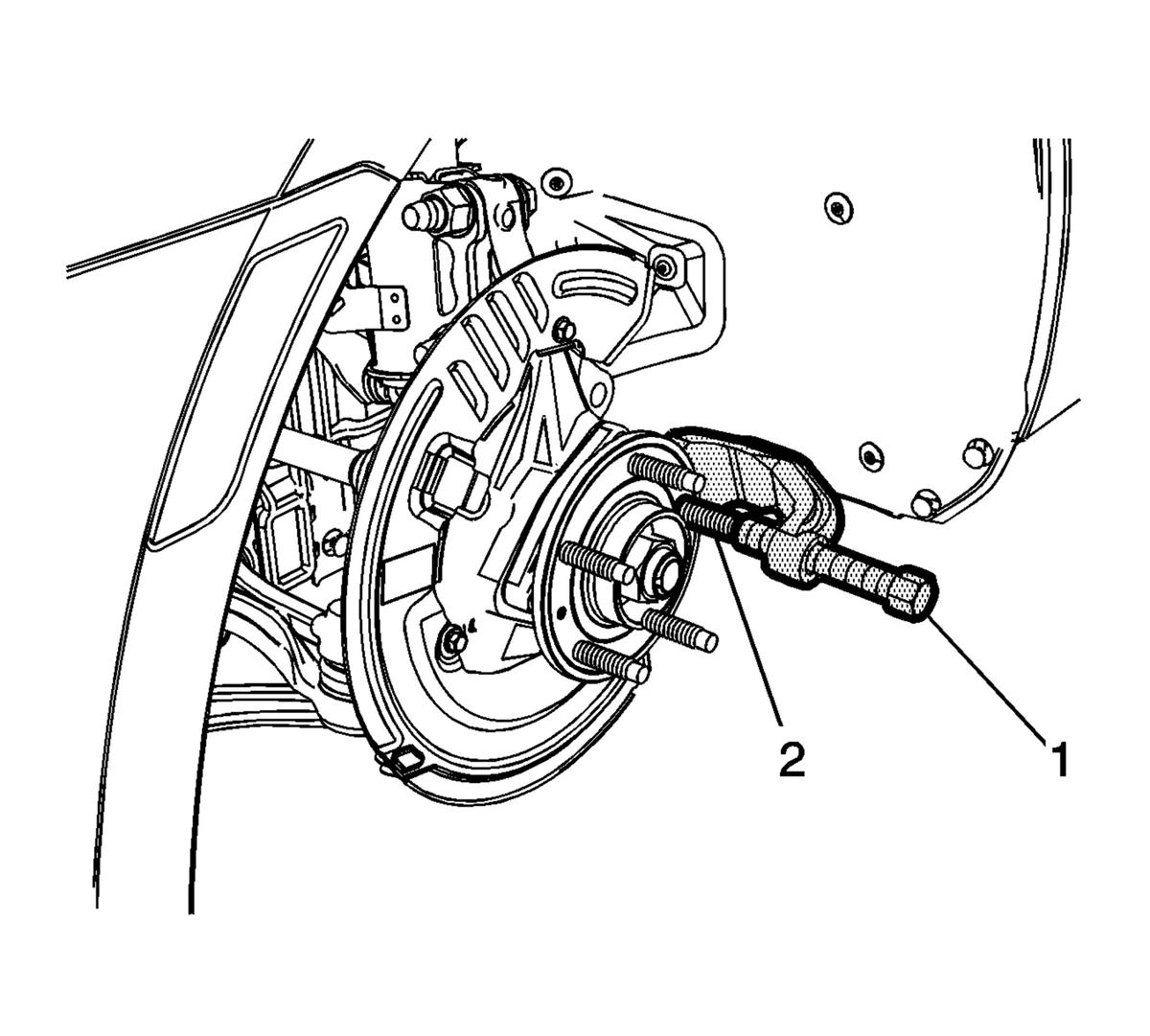

Use the CH-43631 separator (1) to separate the wheel stud (2) from the flange on the hub assembly.

Fig 1: Wheel Stud Separator
Courtesy of GENERAL MOTORS COMPANY
Remove the wheel stud (2) from the flange on the hub assembly (1).

Fig 2: Wheel Stud
Courtesy of GENERAL MOTORS COMPANY

DISCARD the stud.
