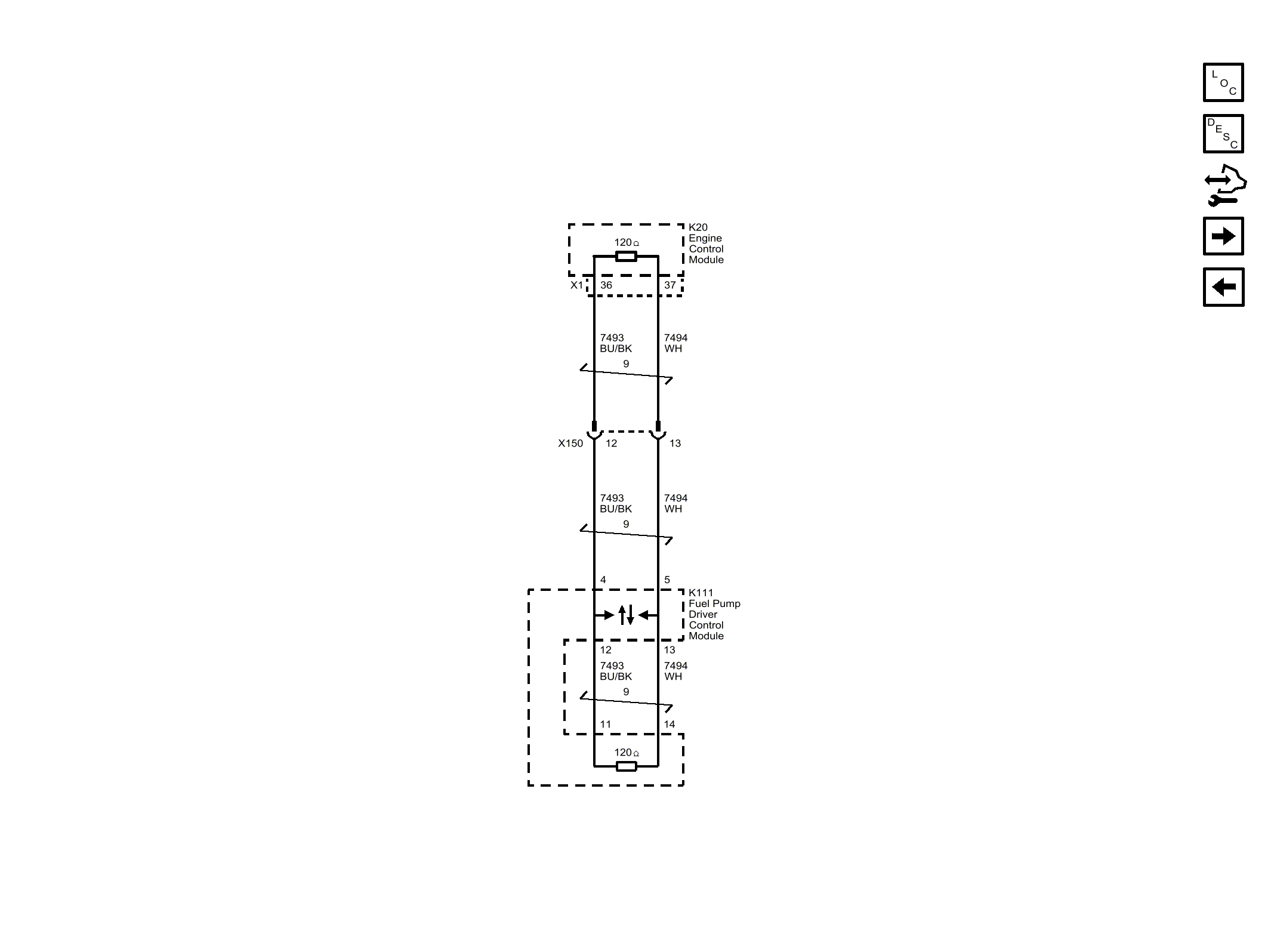

Home >> Cadillac >> 2016 >> CTS Base, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Powertrain High Speed GMLAN (G96)
