Object High Speed GMLAN (UGN without UVZ)

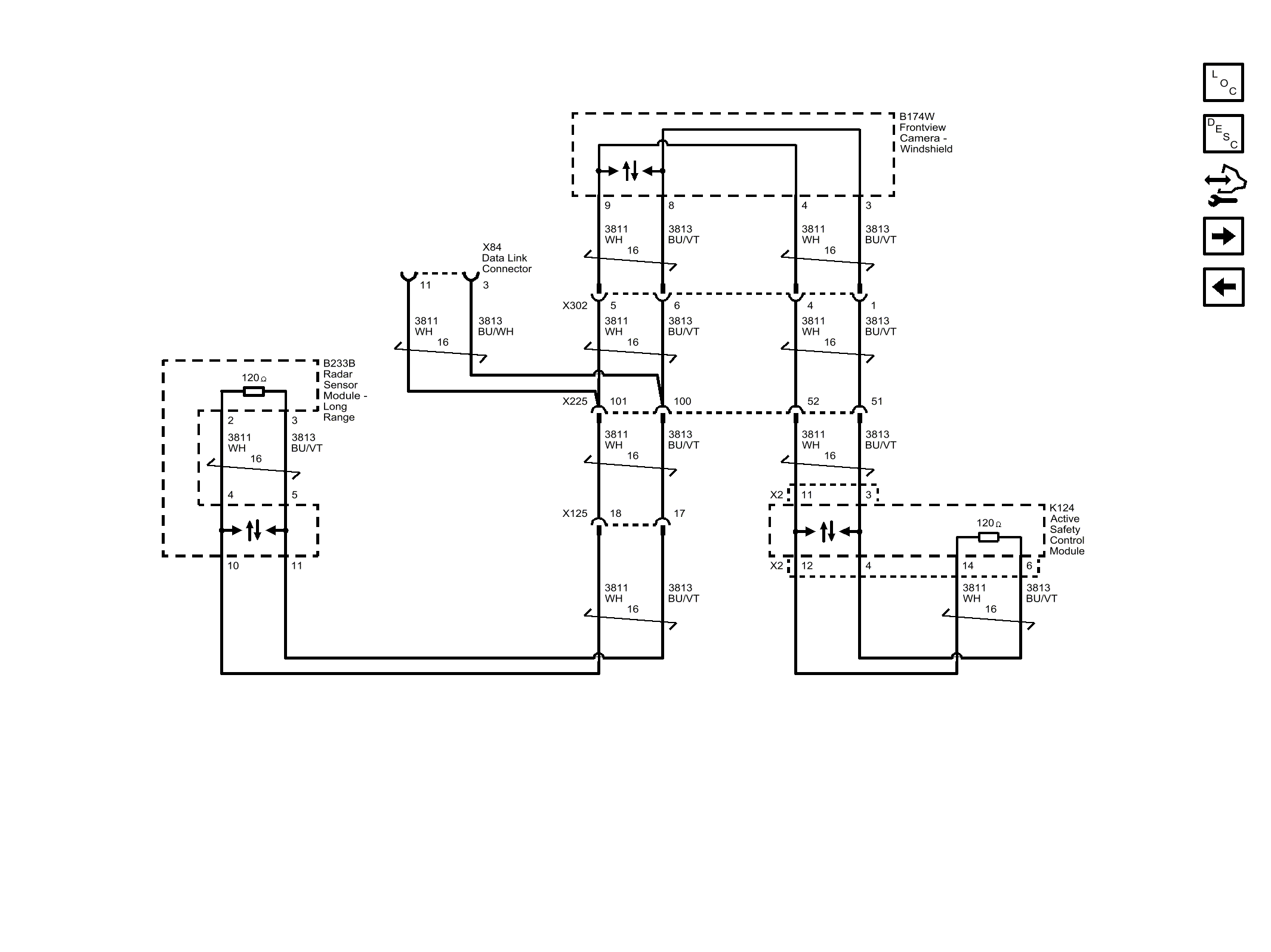

Fig 1: Object High Speed GMLAN (UGN without UVZ)

GM4078791

Courtesy of GENERAL MOTORS COMPANY
