Linear Interconnect Network (LIN) Bus (3 of 3)

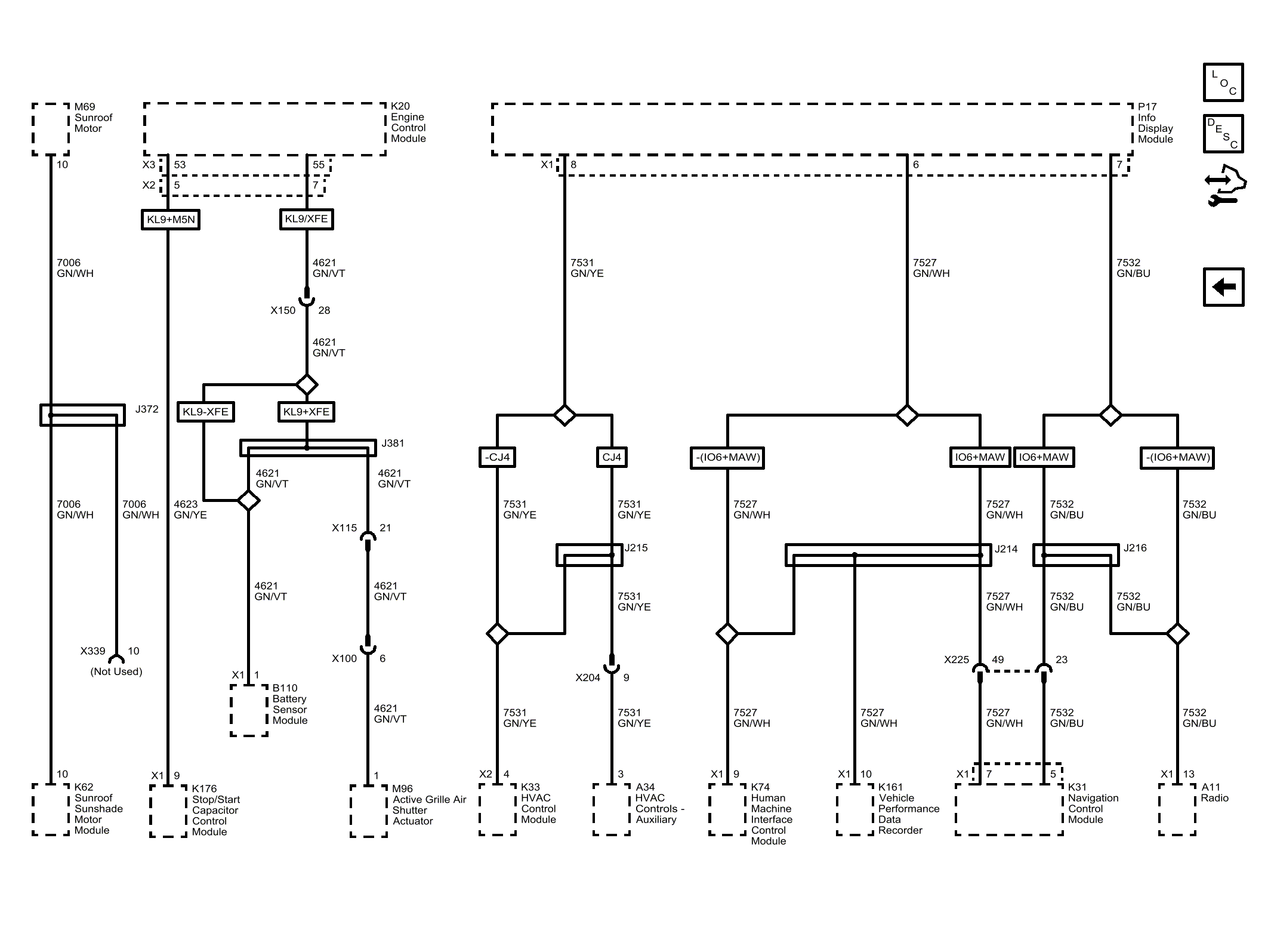

Fig 1: Linear Interconnect Network (LIN) Bus (3 of 3)

GM4078797

Courtesy of GENERAL MOTORS COMPANY
