Installation Procedure

Battery Negative Cable (2)» Install

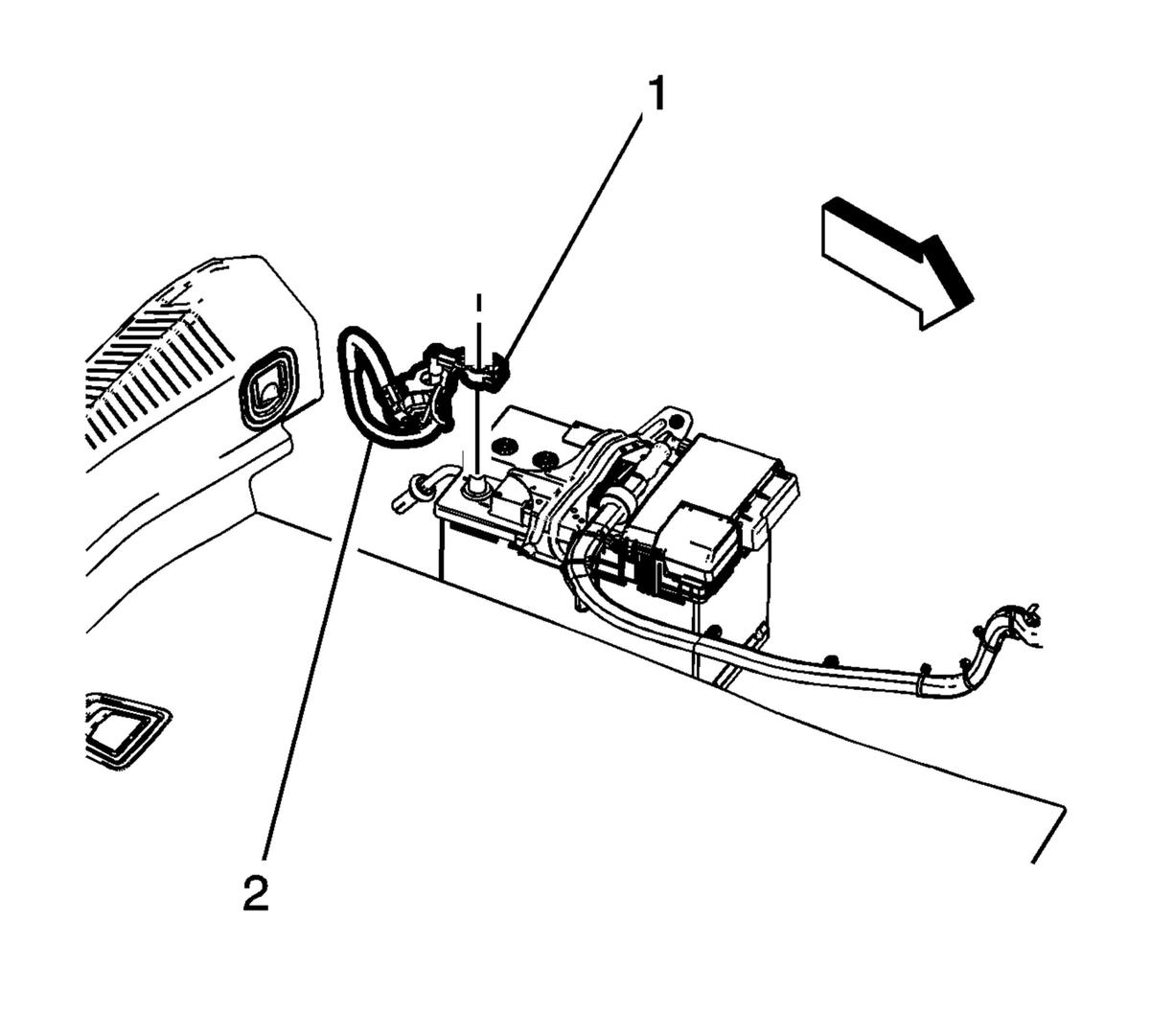

Fig 1: Battery Negative Cable Clamp Fastener
Courtesy of GENERAL MOTORS COMPANY
Battery Negative Post Clamp Nut (1)» Tighten 7 N.m (62 lb in)
CAUTION: Refer to Fastener Caution .
Access Cover (1)» Close

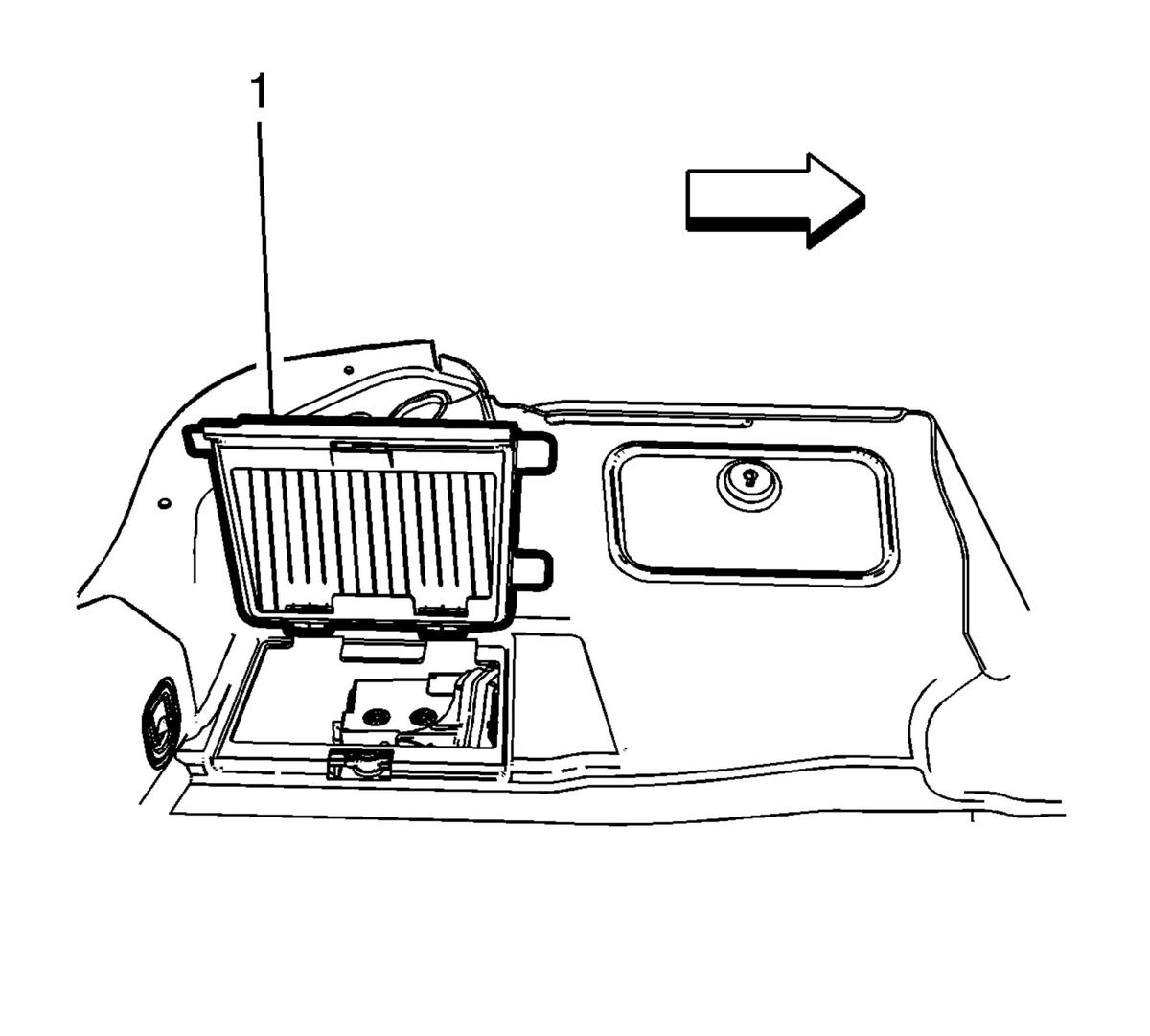

Fig 2: Battery Access Cover Located At Left Rear Compartment Area
Courtesy of GENERAL MOTORS COMPANY
Perform the battery sensor module learn procedure. Refer to Battery Sensor Module Learn
NOTE: The Sop/Start feature will not be available until the vehicle is allowed to sit for at least 3 hours undisturbed. If diagnosing a Stop/Start complaint, conduct the battery sensor module learn procedure to verify the repair.
