Rear Side Door Window Switch Replacement

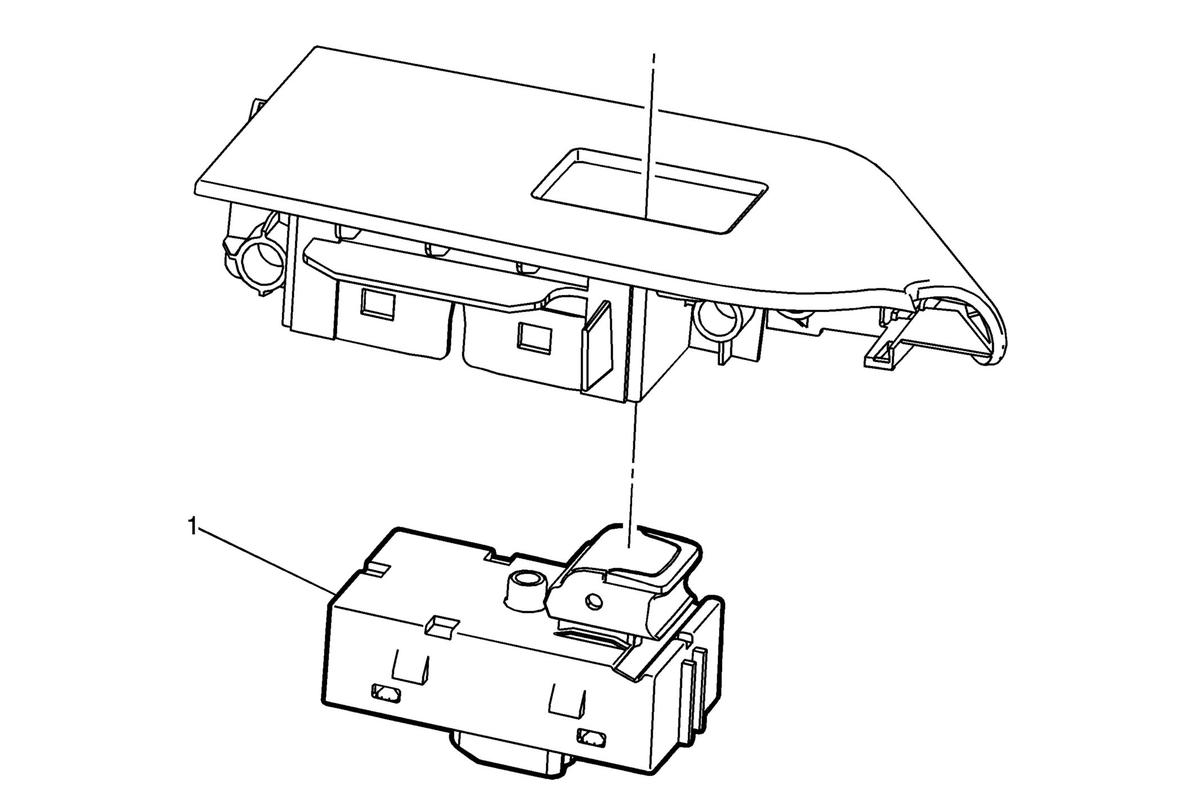

Fig 1: Rear Side Door Window Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door armrest switch mount plate. Refer to Rear Side Door Armrest Switch Mount Plate Replacement .
1	Rear Side Door Window Switch Assembly Procedure Release the tabs on switch to remove from the rear side door accessory switch mount plate. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure
Remove the rear side door armrest switch mount plate. Refer to Rear Side Door Armrest Switch Mount Plate Replacement .

Rear Side Door Window Switch Assembly

Procedure

Release the tabs on switch to remove from the rear side door accessory switch mount plate.
Refer to Control Module References for programming and set up procedures.
