Installation Procedure

    Fig 1: Generator Bolt
    GM4249268Courtesy of GENERAL MOTORS COMPANY
  1. Install Generator (4)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Generator Mounting Bolt (1) and tighten 22 N.m (16 lb ft)
  3. Install Generator Mounting Stud (3) and tighten 9 N.m (80 lb in)
  4. Install Generator Mounting Nut (2) and tighten 22 N.m (16 lb ft)
    5. Fig 2: Generator Nut
    GM4249267Courtesy of GENERAL MOTORS COMPANY
  5. Install Generator Battery Jumper Cable (2)
  6. Install Generator Nut (1) and tighten 15 N.m (11 lb ft)
    7. Fig 3: Wiring Harness Retainer
    GM4249266Courtesy of GENERAL MOTORS COMPANY
  7. Engage Wiring Harness Retainer (1)
  8. Connect Electrical Connector (2)
    9. Fig 4: Front Wheelhouse Panel Brace (Front)
    GM4248724Courtesy of GENERAL MOTORS COMPANY
  9. Install Front Wheelhouse Panel Brace - Front (2)Front Wheelhouse Panel Brace Replacement (Rear)Front Wheelhouse Panel Brace Replacement (Front)

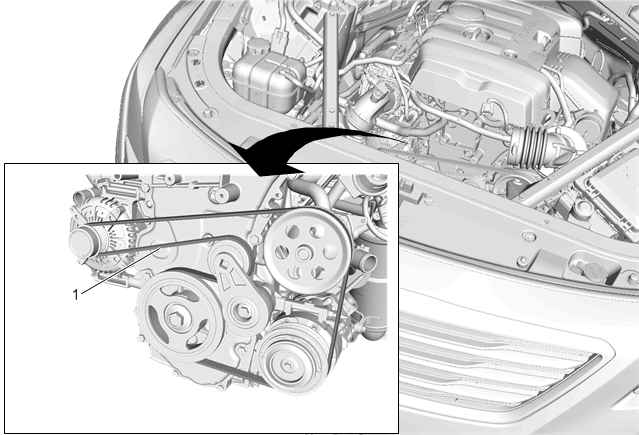

    10. Fig 5: Drive Belt
    GM4246374Courtesy of GENERAL MOTORS COMPANY
  10. Install Drive Belt (1)Drive Belt Replacement
  11. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
