Installation Procedure

    Fig 1: Generator
    GM4256722Courtesy of GENERAL MOTORS COMPANY
  1. Install Generator (2)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Generator Mounting Bolt (1) and tighten 22 N.m (16 lb ft)
    3. Fig 2: Generator Battery Jumper Cable
    GM4250059Courtesy of GENERAL MOTORS COMPANY
  3. Install Generator Battery Jumper Cable (2)
  4. Install Generator Nut (1) and tighten 15 N.m (11 lb ft)
    5. Fig 3: Front Splash Shield
    GM4244170Courtesy of GENERAL MOTORS COMPANY
  5. Install Engine Front Splash Shield - Right Side Engine Front Splash Shield Replacement - Right Side (Rear)Engine Front Splash Shield Replacement - Right Side (Front)
    6. Fig 4: Electrical Connector
    GM4256704Courtesy of GENERAL MOTORS COMPANY
  6. Connect Electrical Connector (1)

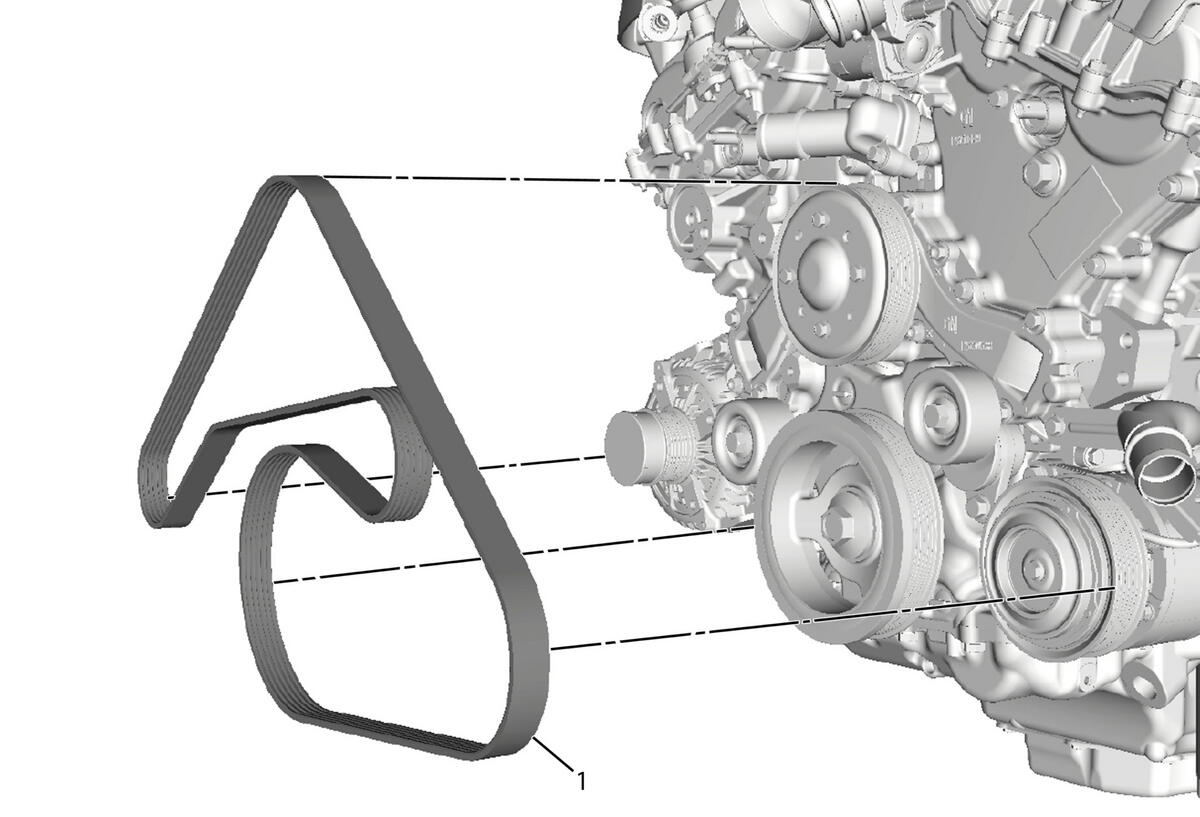

    7. Fig 5: Drive Belt (LGX)
    GM4111093Courtesy of GENERAL MOTORS COMPANY
  7. Install Drive Belt (1)Drive Belt Replacement (LGX)
    8. Fig 6: Heater Water Auxiliary Pump Inlet Hose
    GM4256676Courtesy of GENERAL MOTORS COMPANY
  8. Install Heater Water Auxiliary Pump Inlet Hose (1)Heater Water Auxiliary Pump Inlet Hose Replacement (LGX)
    9. Fig 7: Radiator Inlet Hose
    GM4256686Courtesy of GENERAL MOTORS COMPANY
  9. Install Radiator Inlet Hose (1) Radiator Inlet Hose Replacement (LGX)
  10. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
