Installation Procedure

    Fig 1: Generator Bolt
    GM4251023Courtesy of GENERAL MOTORS COMPANY
  1. Install Generator (5)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Generator Mounting Bolt (1) and tighten 58 N.m (43 lb ft)
  3. Install Generator Mounting Stud (4) and tighten 9 N.m (80 lb in)
  4. Install Generator Mounting Nut (2) and tighten 58 N.m (43 lb ft)
  5. Engage Wiring Harness Retainer (3)
    6. Fig 2: Electrical Connector
    GM4251037Courtesy of GENERAL MOTORS COMPANY
  6. Connect Electrical Connector (1)
    7. Fig 3: Generator Battery Jumper Cable
    GM4250059Courtesy of GENERAL MOTORS COMPANY
  7. Install Generator Battery Jumper Cable (2)
  8. Install Generator Nut (1) and tighten 15 N.m (11 lb ft)

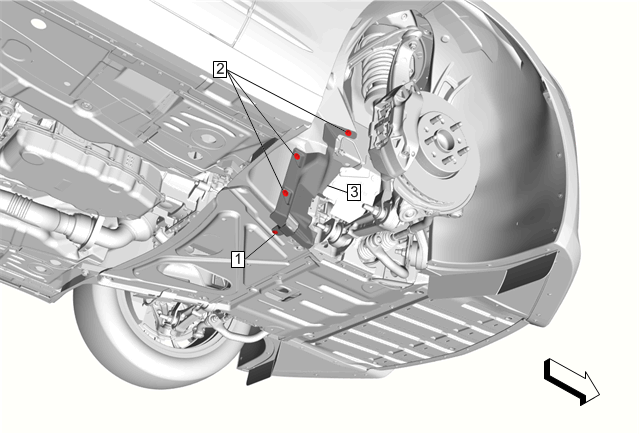

    9. Fig 4: Front Splash Shield
    GM4244170Courtesy of GENERAL MOTORS COMPANY
  9. Install Engine Front Splash Shield (3) - Right Side Engine Front Splash Shield Replacement - Right Side (Rear)Engine Front Splash Shield Replacement - Right Side (Front)
    10. Fig 5: Fan and Generator Belt
    GM4251019Courtesy of GENERAL MOTORS COMPANY
  10. Install Fan and Generator Belt (1)Fan and Generator Belt Replacement
    11. Fig 6: Heater Coolant Pump
    GM4251021Courtesy of GENERAL MOTORS COMPANY
  11. Install Heater Coolant Pump (1)Heater Coolant Pump Replacement (LGW)
    12. Fig 7: Radiator Inlet Hose
    GM4250149Courtesy of GENERAL MOTORS COMPANY
  12. Install Radiator Inlet Hose (2)Radiator Inlet Hose Replacement (LGW)
  13. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
