Generator Bracket Replacement

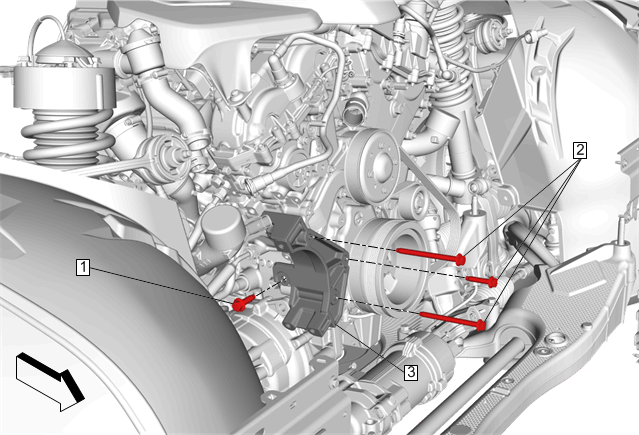

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the generator. Generator Replacement (LTG) Generator Replacement (LGW) Generator Replacement (LGX) |
|
| 1 | Generator Bracket Bolt
CAUTION:
Refer to Fastener Caution Tighten 58 N.m (43 lb ft) |
| 2 | Generator Bracket Bolt (Qty: 4) Tighten 22 N.m (16 lb ft) |
| 3 | Generator Bracket |
