Vehicle Performance Data Recorder Bracket Replacement

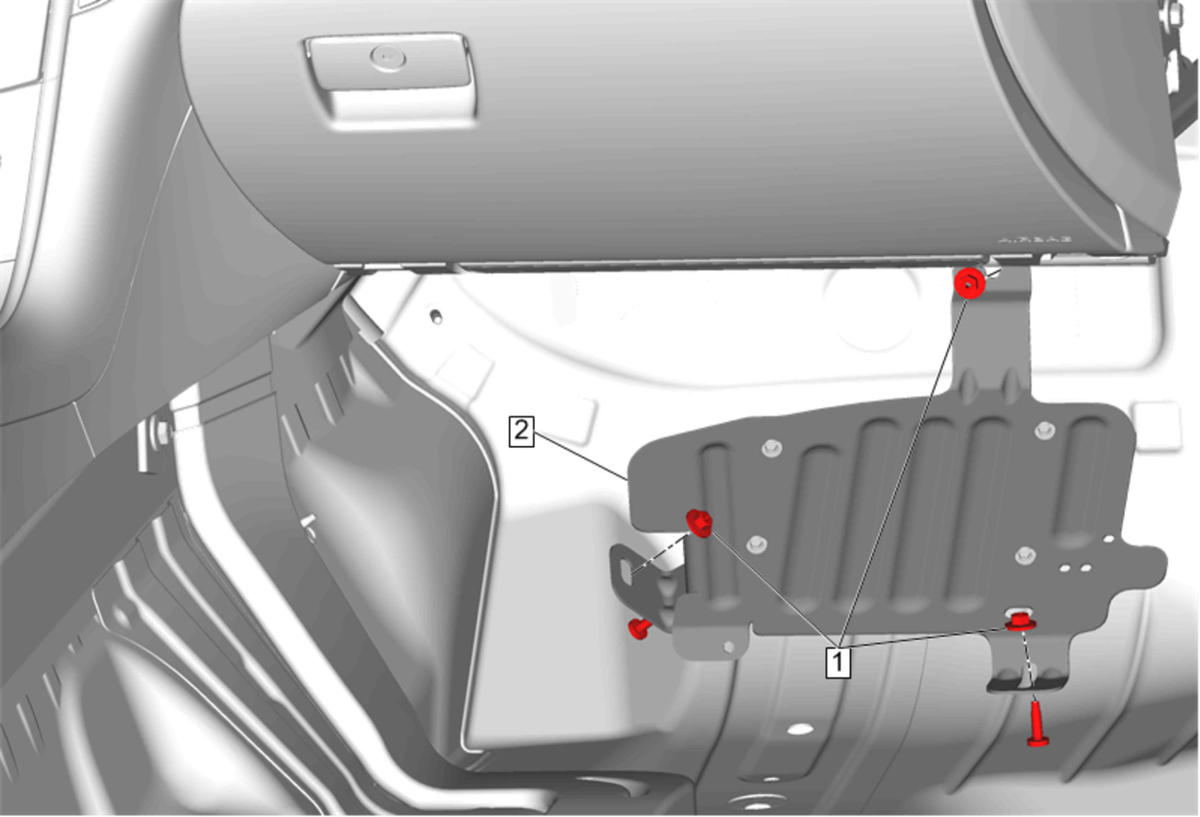

Fig 1: Vehicle Performance Data Recorder Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Reposition the front floor panel carpet as necessary. Front Floor Panel Carpet Replacement - Right Side (Sedan)Front Floor Panel Carpet Replacement - Right Side (Coupe)
1	Video Display Bracket Nut CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Vehicle Performance Data Recorder Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Video Display Bracket Nut

CAUTION:

Tighten
9 N.m (80 lb in)

Vehicle Performance Data Recorder Bracket

Procedure
