Rear Compartment Lid Latch Replacement

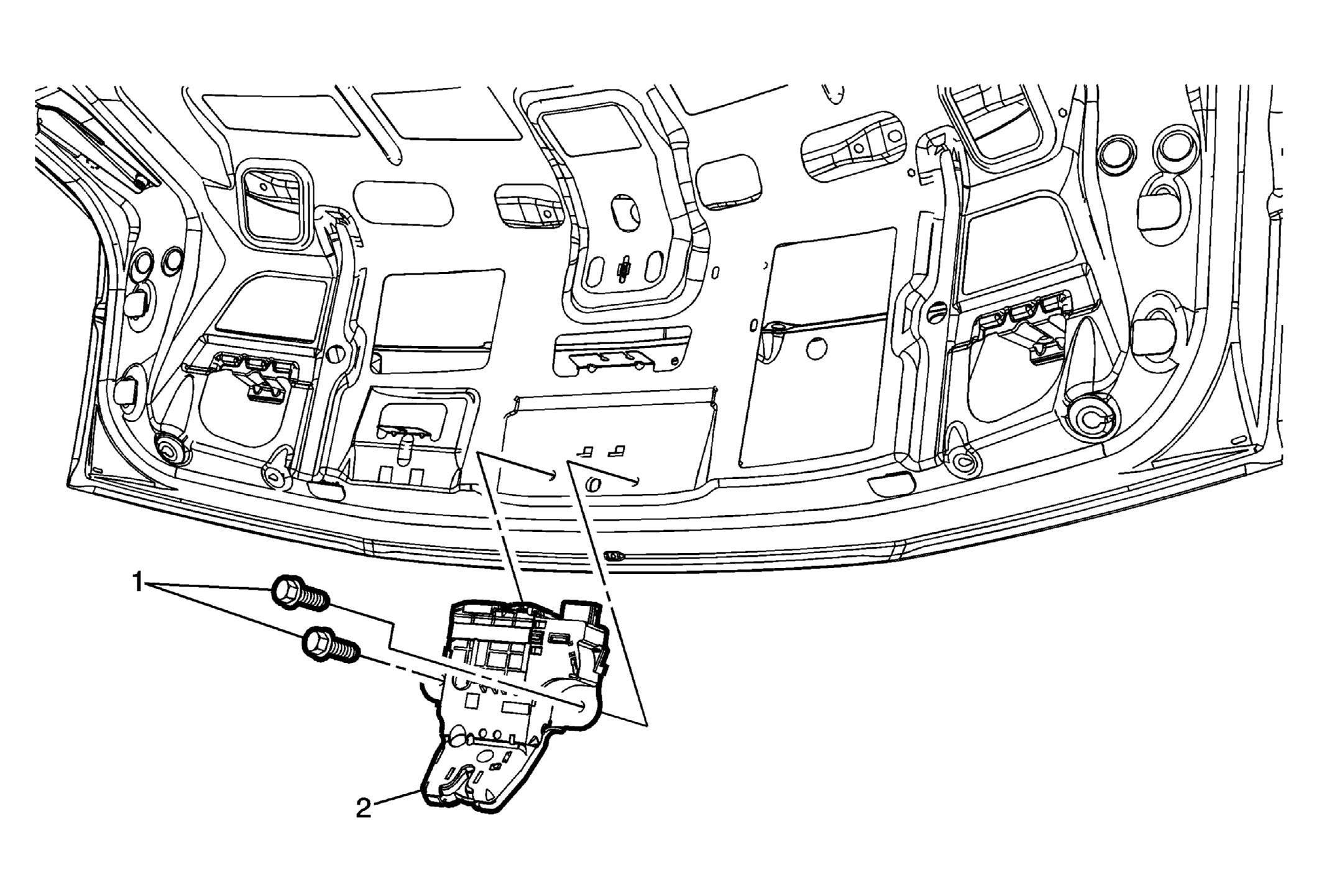

Fig 1: Rear Compartment Lid Latch & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1	Rear Compartment Lid Latch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Compartment Lid Latch Procedure Disconnect the rear compartment lid latch handle cable from the rear compartment lid. Disconnect the electrical connector. Slide the lid latch to the left side and then remove.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .

Rear Compartment Lid Latch Bolt (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Rear Compartment Lid Latch

Procedure

Disconnect the rear compartment lid latch handle cable from the rear compartment lid.
Disconnect the electrical connector.
Slide the lid latch to the left side and then remove.
