Front Object Sensors and Advanced Parking Assist (UD5/UFQ)

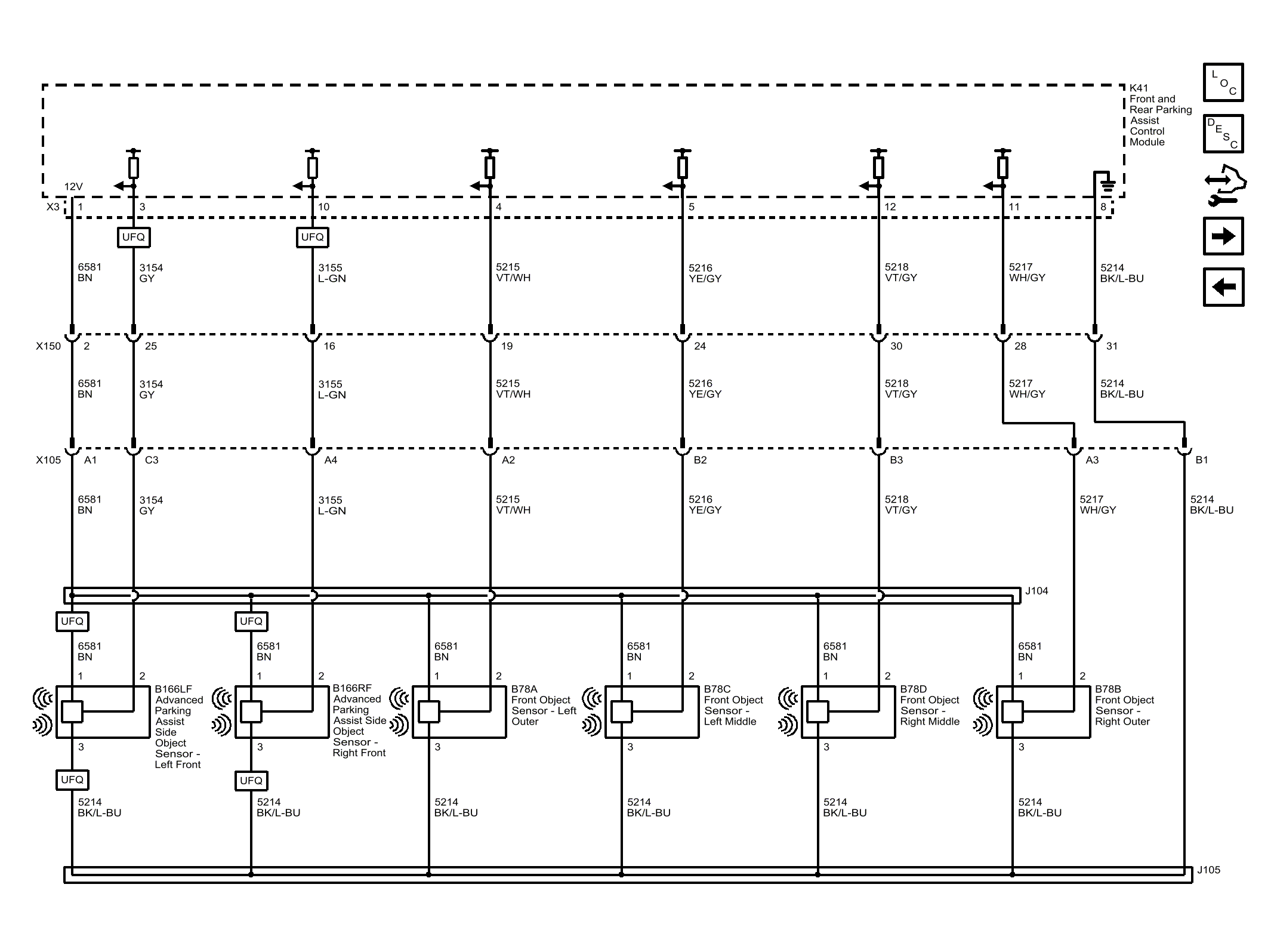

Fig 1: Front Object Sensors and Advanced Parking Assist (UD5/UFQ)

GM3792941

Courtesy of GENERAL MOTORS COMPANY
