Center Front Passenger Compartment

Center Front Passenger Compartment

Items
1: K109 Frontview Camera Module K109 Frontview Camera Module (-UGN)B158 Vehicle Direction Camera (UGN)

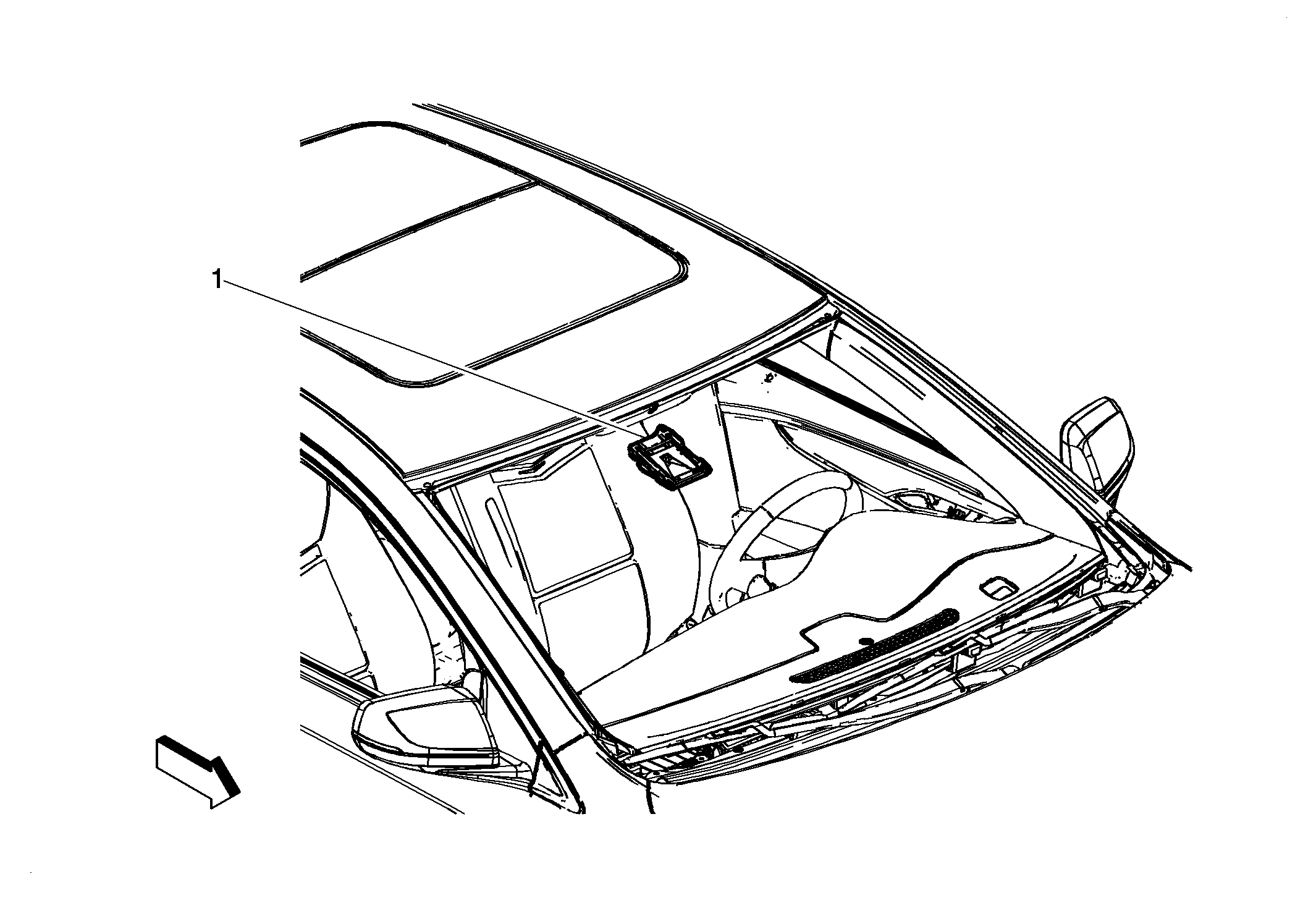

Fig 1: Center Front Passenger Compartment
GM2772266Courtesy of GENERAL MOTORS COMPANY
