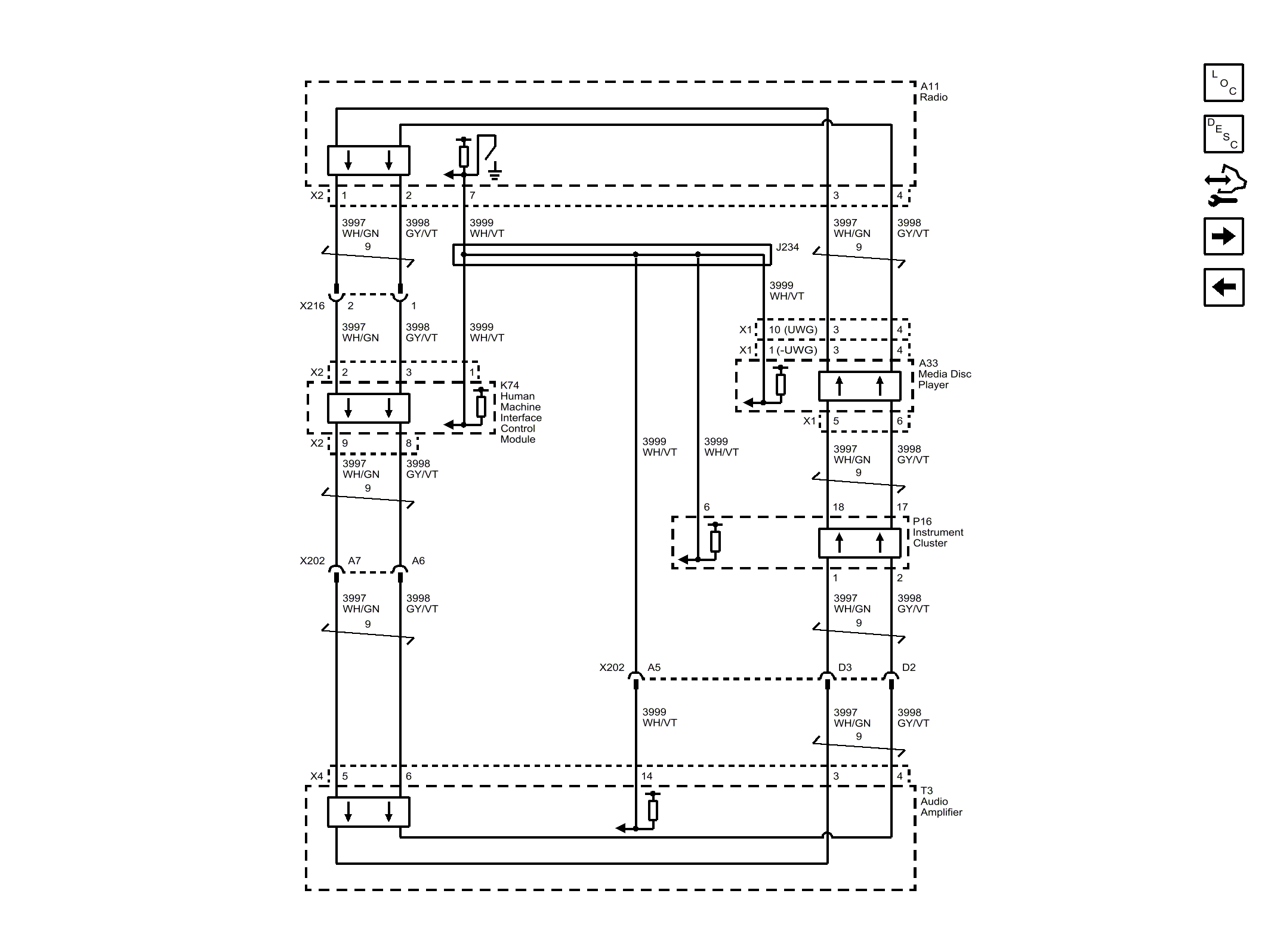

Home >> Cadillac >> 2015 >> SRX Performance, 4D Utility, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Data Communication System >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> MOST 50 Bus
