Communication and Enable Wake-up Circuits

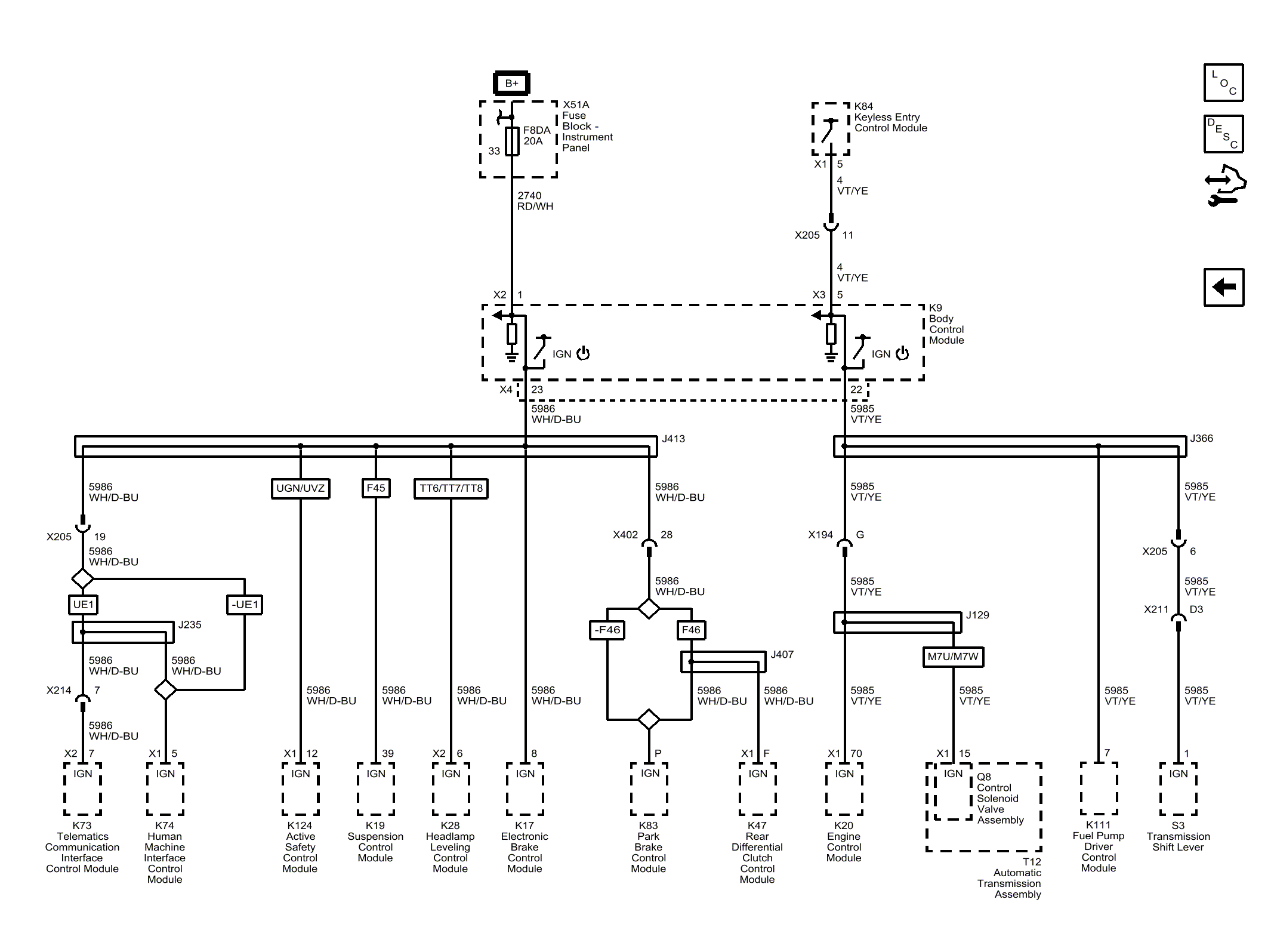

Fig 1: Communication and Enable Wake-up Circuits

GM3755127

Courtesy of GENERAL MOTORS COMPANY
