Passenger Seat Lumbar Control Switch Replacement

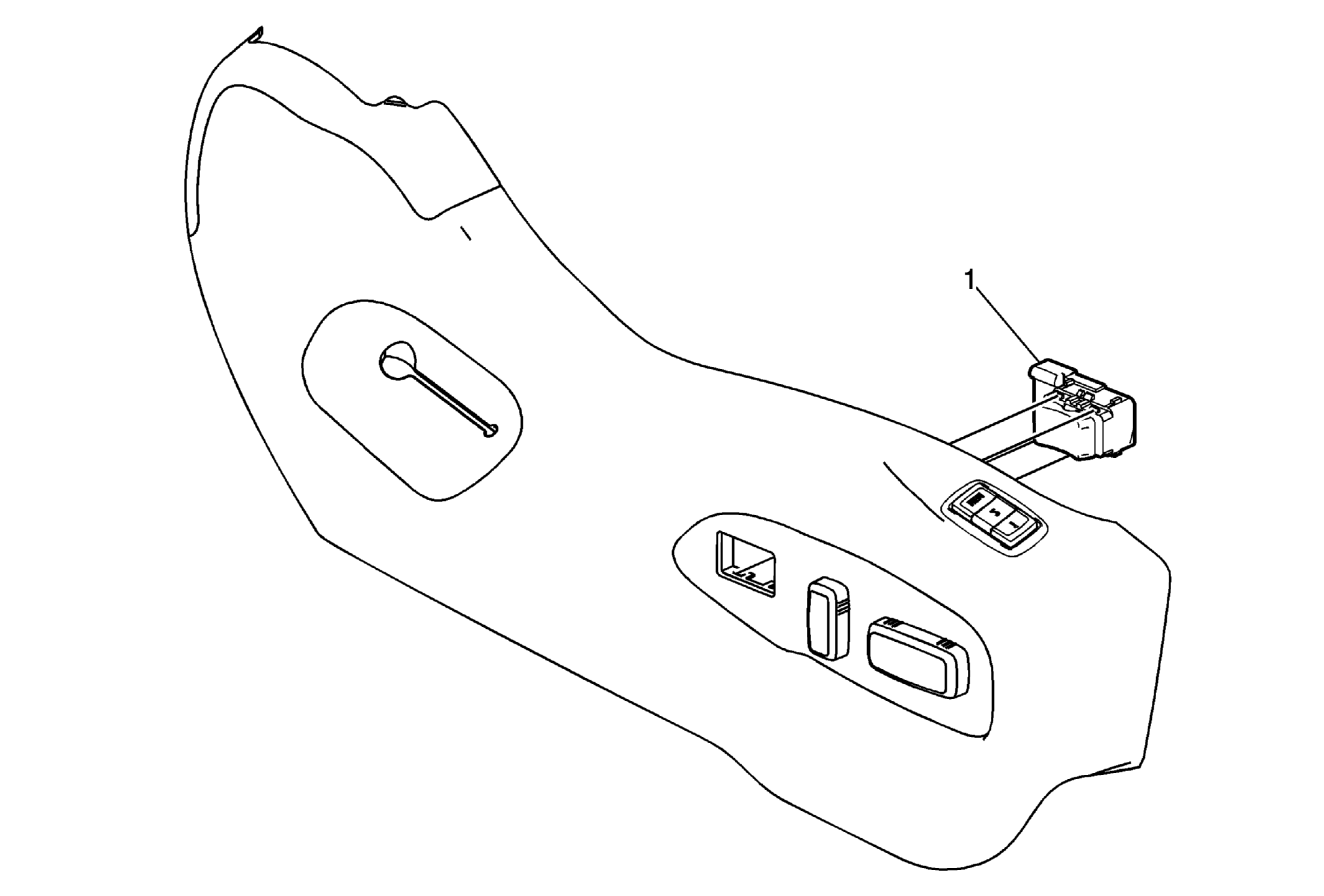

Fig 1: Passenger Seat Lumbar Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the passenger seat outer adjuster finish cover. Refer to Driver or Passenger Seat Outer Adjuster Finish Cover Replacement .
1	Passenger Seat Lumbar Switch TIP:  Use a flat-bladed tool to release the switch from the finish cover.
