Liftgate Close Switch Replacement

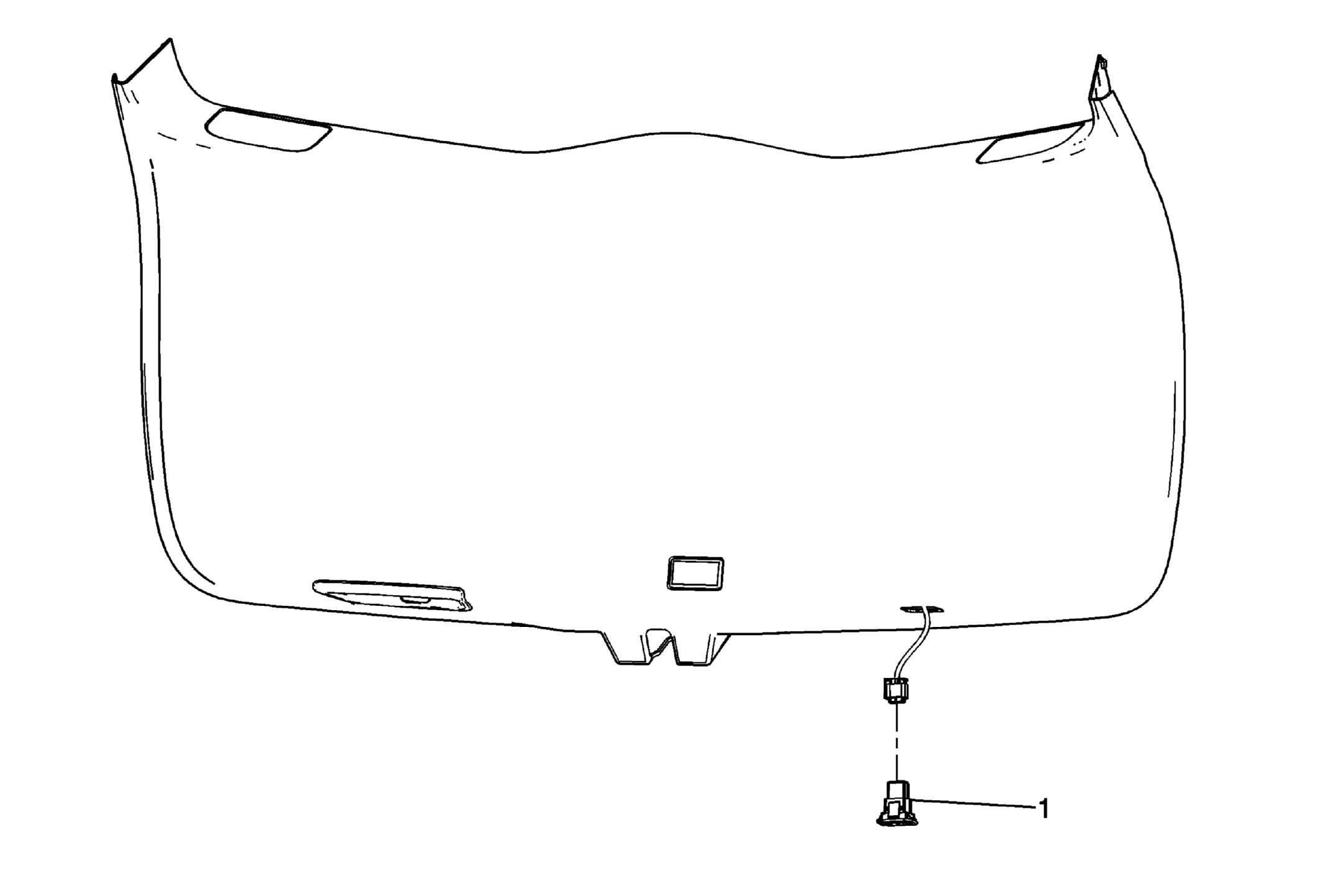

Fig 1: Liftgate Close Switch
GM2244608Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Liftgate Close Switch

Procedure

  1. Disconnect the electrical connector.
  2. Use the appropriate plastic trim tool to remove the liftgate close switch from the trim panel.
