Front Side Door Lock Cylinder Opening Cover Replacement

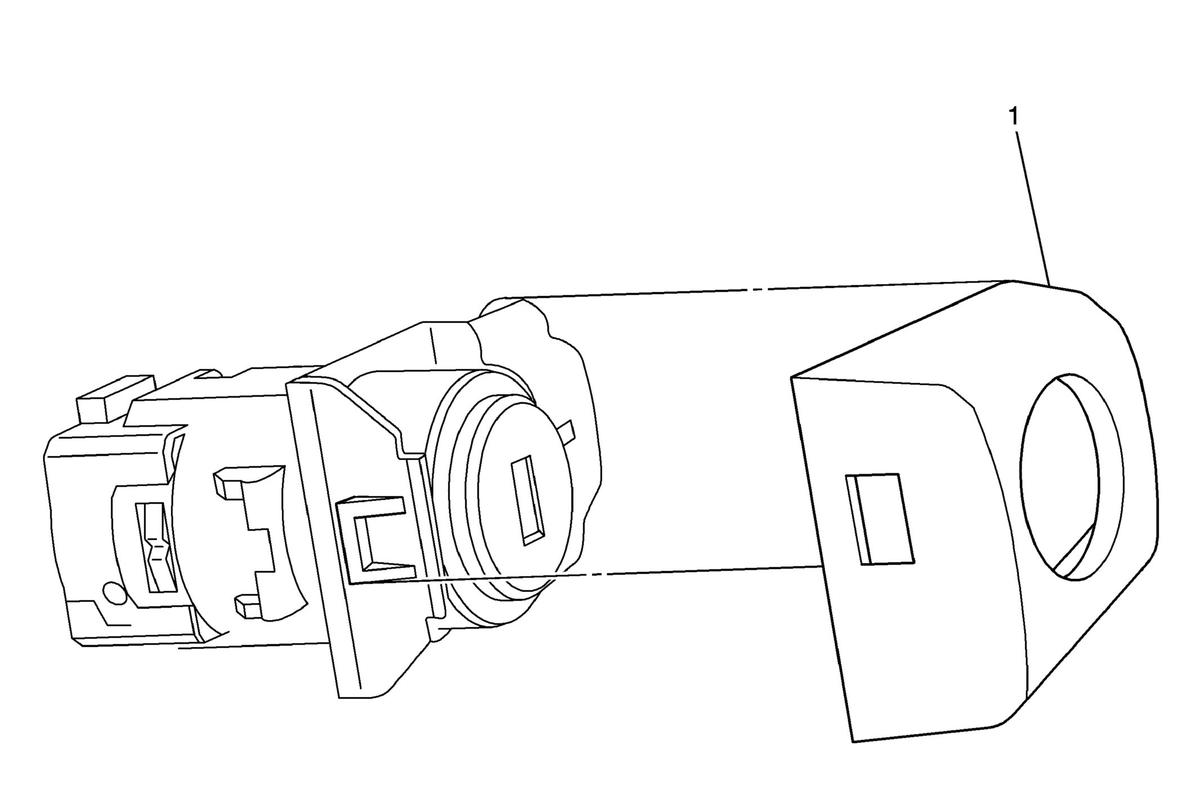

Fig 1: View Of Front Side Door Lock Cylinder Opening Cover
GM2019753Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front side door lock cylinder. Refer to Front Side Door Lock Cylinder Replacement .
1 Front Side Door Lock Cylinder Opening Cover

Procedures

  1. Use a small flat-bladed tool to release the opening cover from the cylinder.
  2. Inspect the door locking system for proper operation.
