Installation Procedure

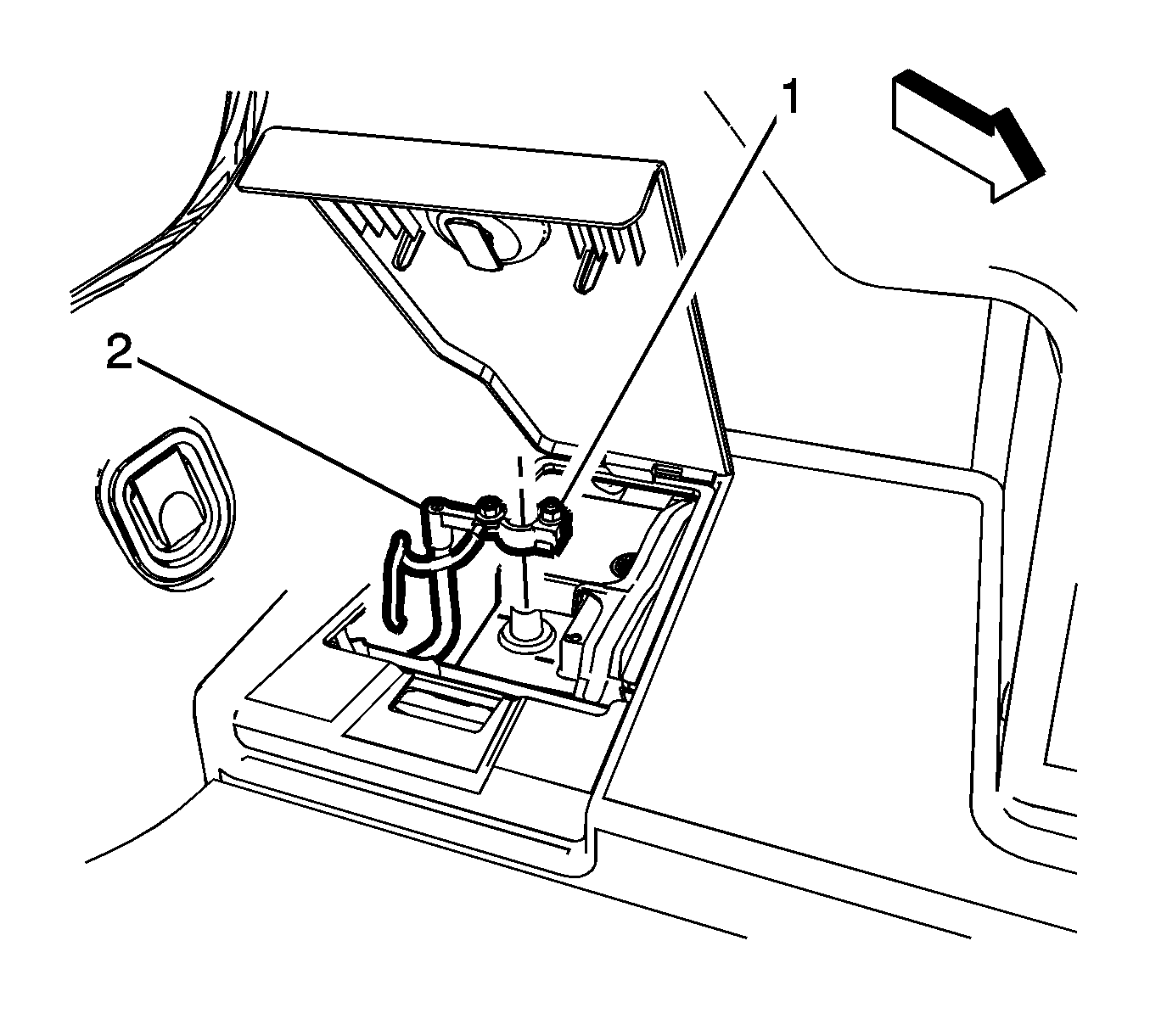

    Fig 1: Battery Negative Cable & Fastener
    GM2826747Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the battery negative cable (2) to the negative battery post and tighten the fastener (1) to 9 N.m (80 lb in).

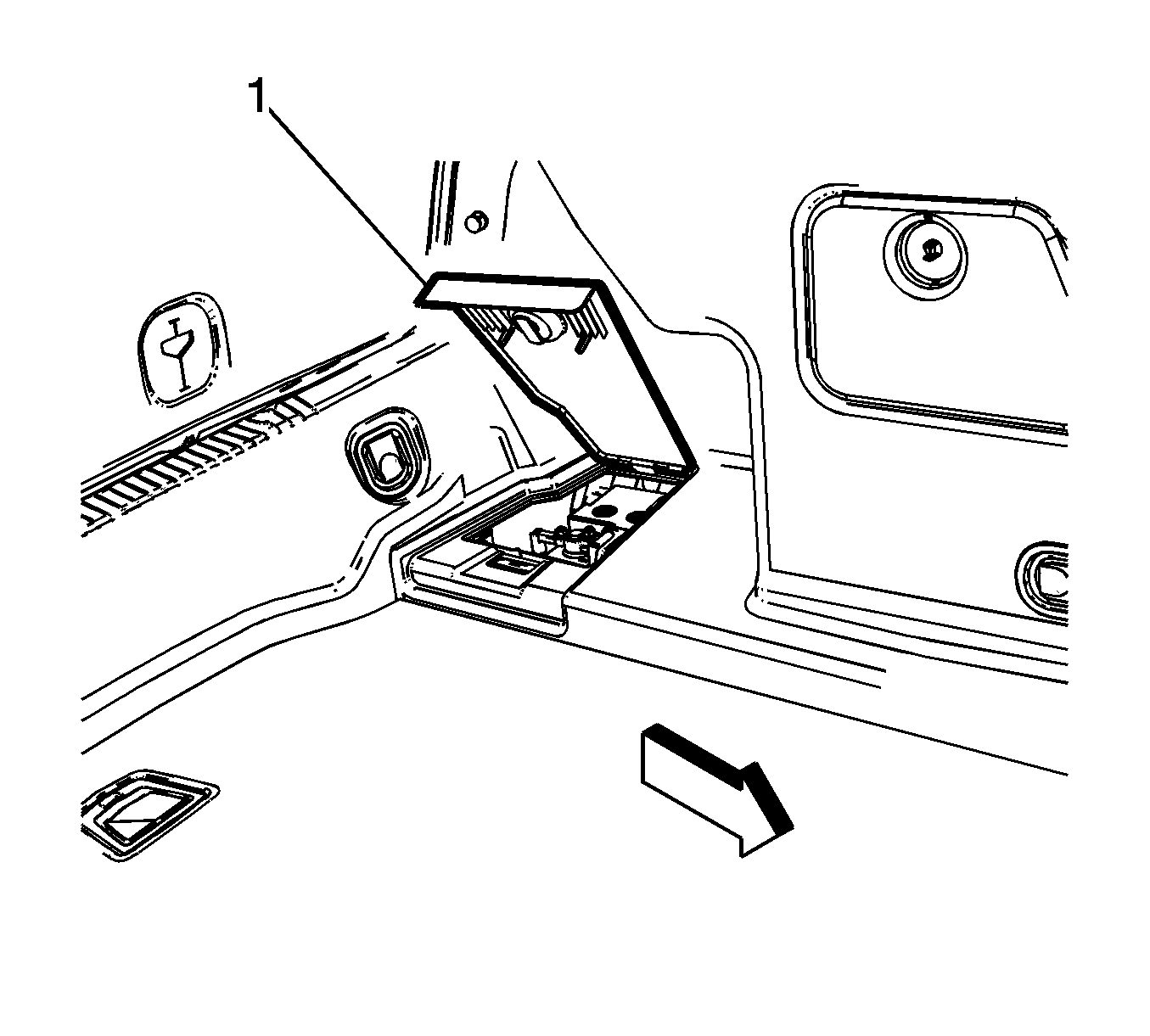

    2. Fig 2: Battery Access Cover
    GM2826746Courtesy of GENERAL MOTORS COMPANY
  2. Close the battery access cover (1).
