Left Front of Engine Components (LTG)

Left Front of Engine Components (LTG)

Items
1: Q42 Turbocharger Wastegate Solenoid Valve (LTG) Q42 Turbocharger Wastegate Solenoid Valve
2: Q40 Turbocharger Bypass Solenoid Valve (LTG) Q40 Turbocharger Bypass Solenoid Valve
3: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve
4: G1 A/C Compressor
5: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch

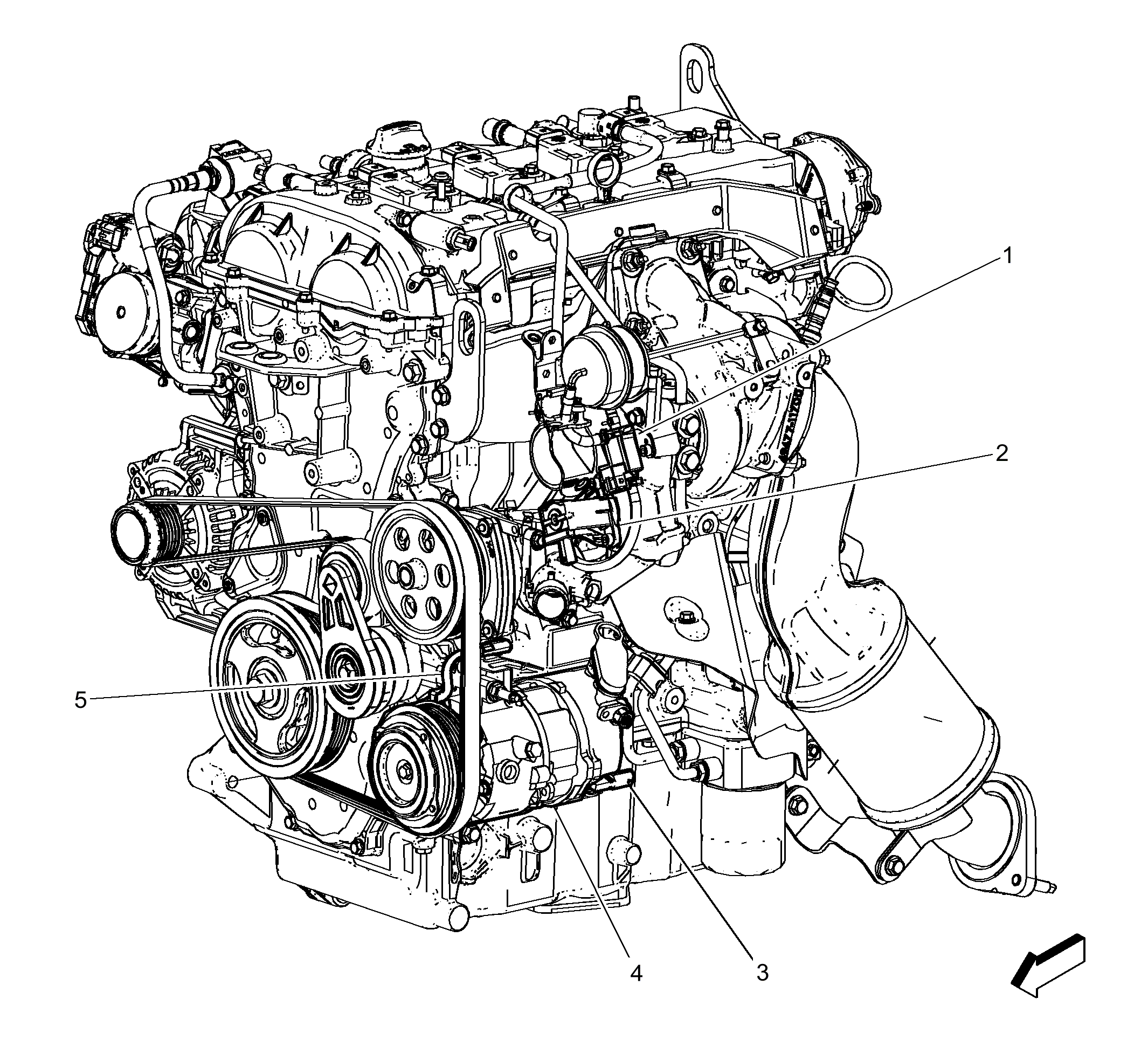

Fig 1: Left Front of Engine Components (LTG)

Courtesy of GENERAL MOTORS COMPANY
