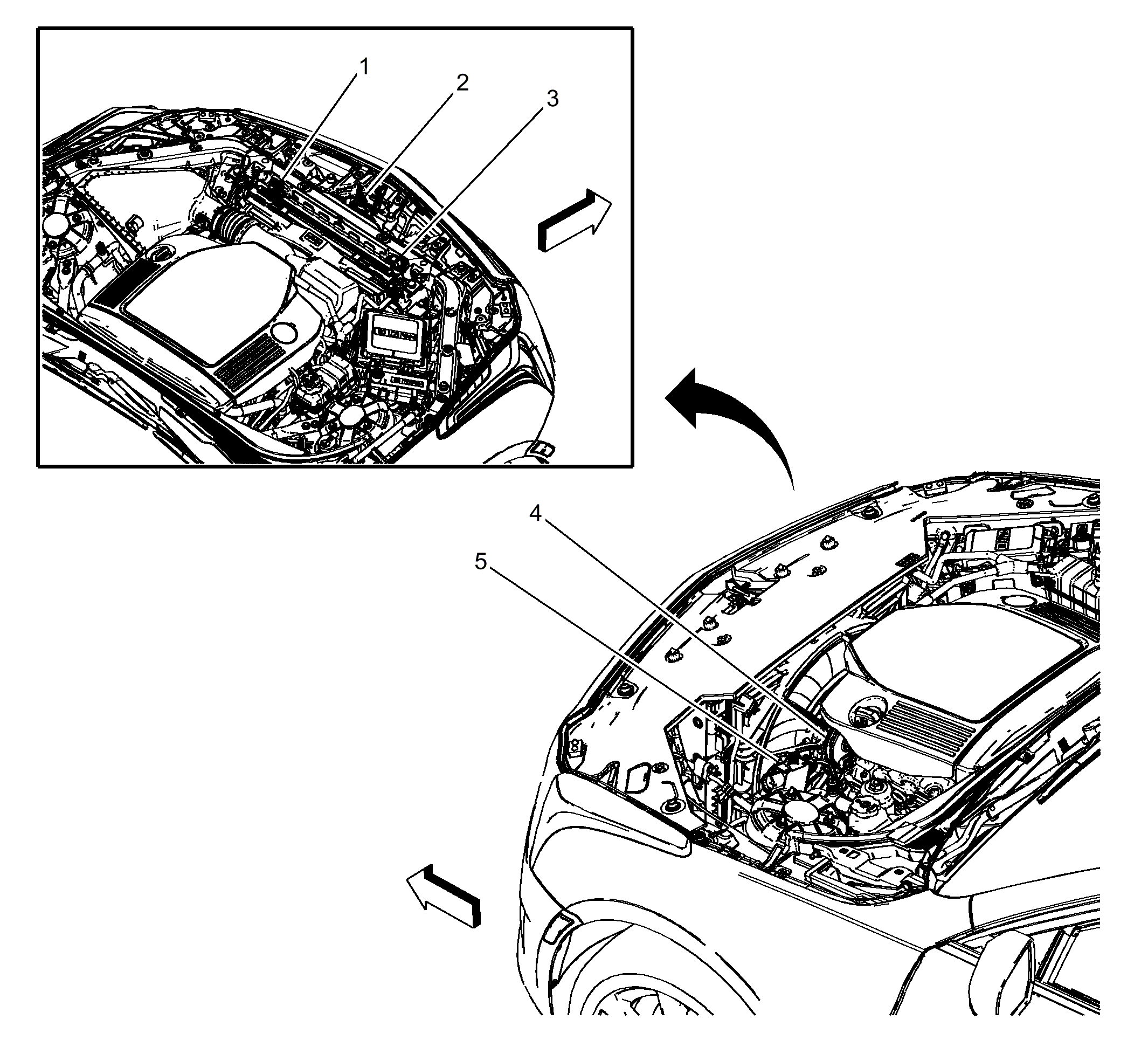

Radiator Support Components
Radiator Support Components
| Items |
|---|
| 1: B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left |
| 2: B55 Hood Ajar Switch B55 Hood Ajar Switch |
| 3: B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right |
| 4: G10 Cooling Fan Motor |
| 5: K22 Cooling Fan Control Module K22 Cooling Fan Control Module ((LFX+KC4)/(LTG+V03))K22 Cooling Fan Control Module ((LCV)/(LFX-KC4)/(LTG-V03))K22 Cooling Fan Control Module X2 (LCV), (LFX without KC4) or (LTG without V03) X2 |
