Vehicle Stability Control System Switch Replacement

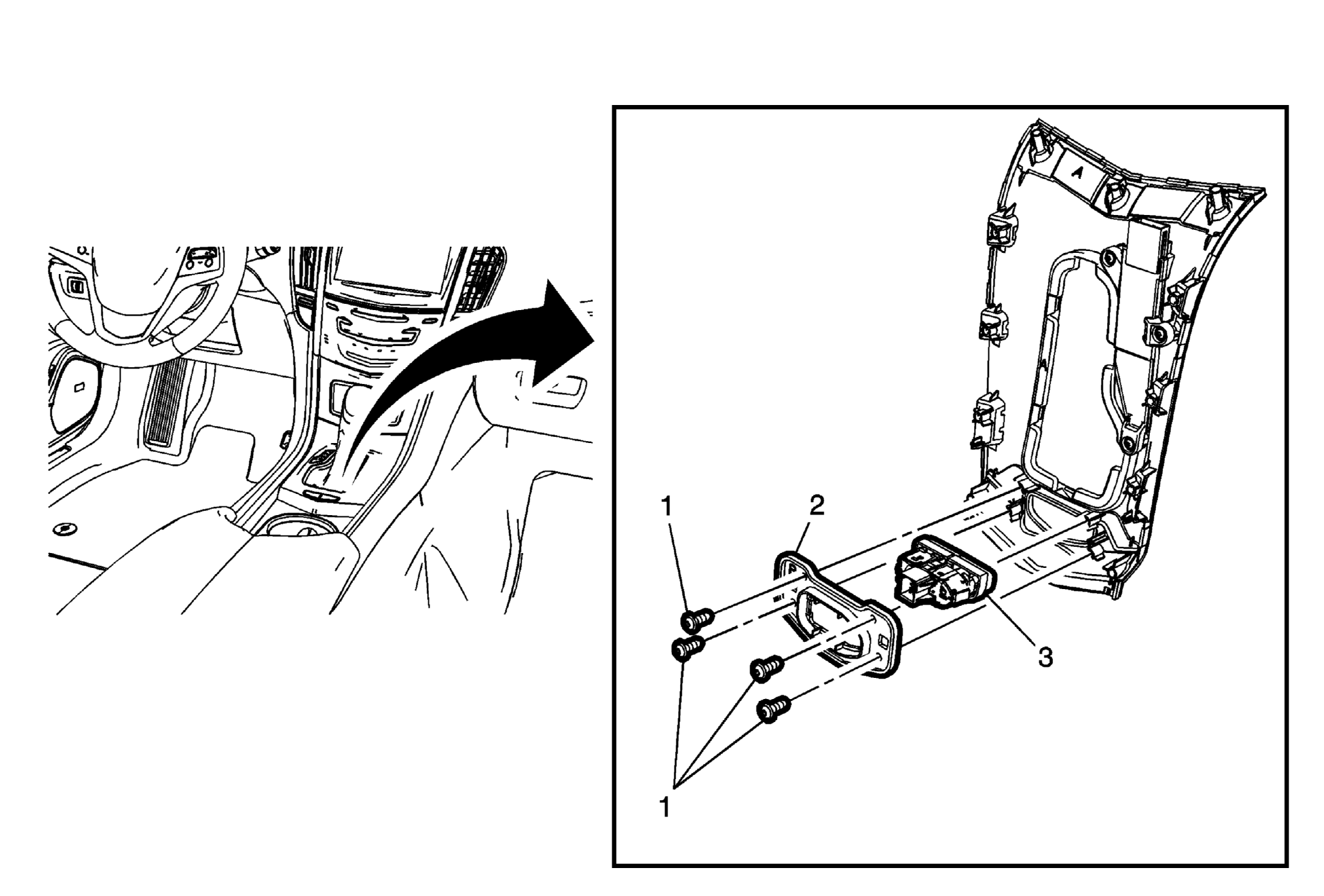

Fig 1: Vehicle Stability Control System Switch
GM2831000Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .
1 Vehicle Stability Control System Switch Fasteners (Qty: 4)
CAUTION:

Refer to Fastener Caution .

2 Vehicle Stability Control System Switch Bracket
3 Vehicle Stability Control System Switch
Procedure
Disconnect the electrical connector.
